4.1.7 Inserting the Cantilever Holder or the Tip Holder into the
SPM Head Unit
1.
In order to prevent the cantilever or the tip from colliding with the scanner
holder, confirm that the specimen stage is lowered to a low enough position.
If it is not, move the specimen stage downward by turning the manual
approach thumbscrew.
2.
Insert the cantilever holder or the tip holder into the SPM head unit groove
until it touches the innermost wall.
TMPM5200-2
4 PREPARATION FOR OBSERVATION

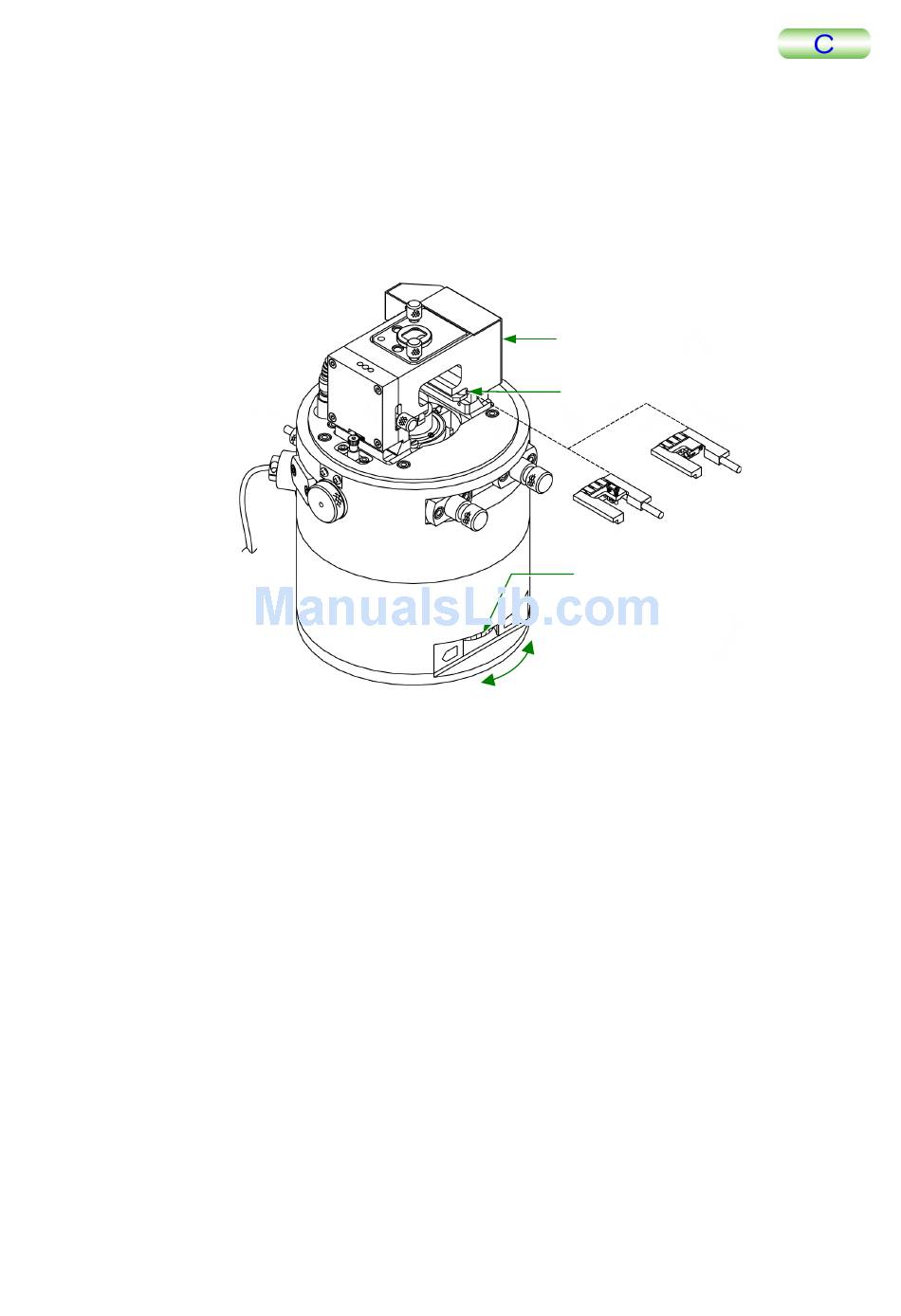

SPM head unit
Groove
Cantilever holder
Manual approach thumbscrew
Specimen stage moves upward (UP)
Specimen stage moves downward (DOWN)
Tip holder
4-7
