• Source signal

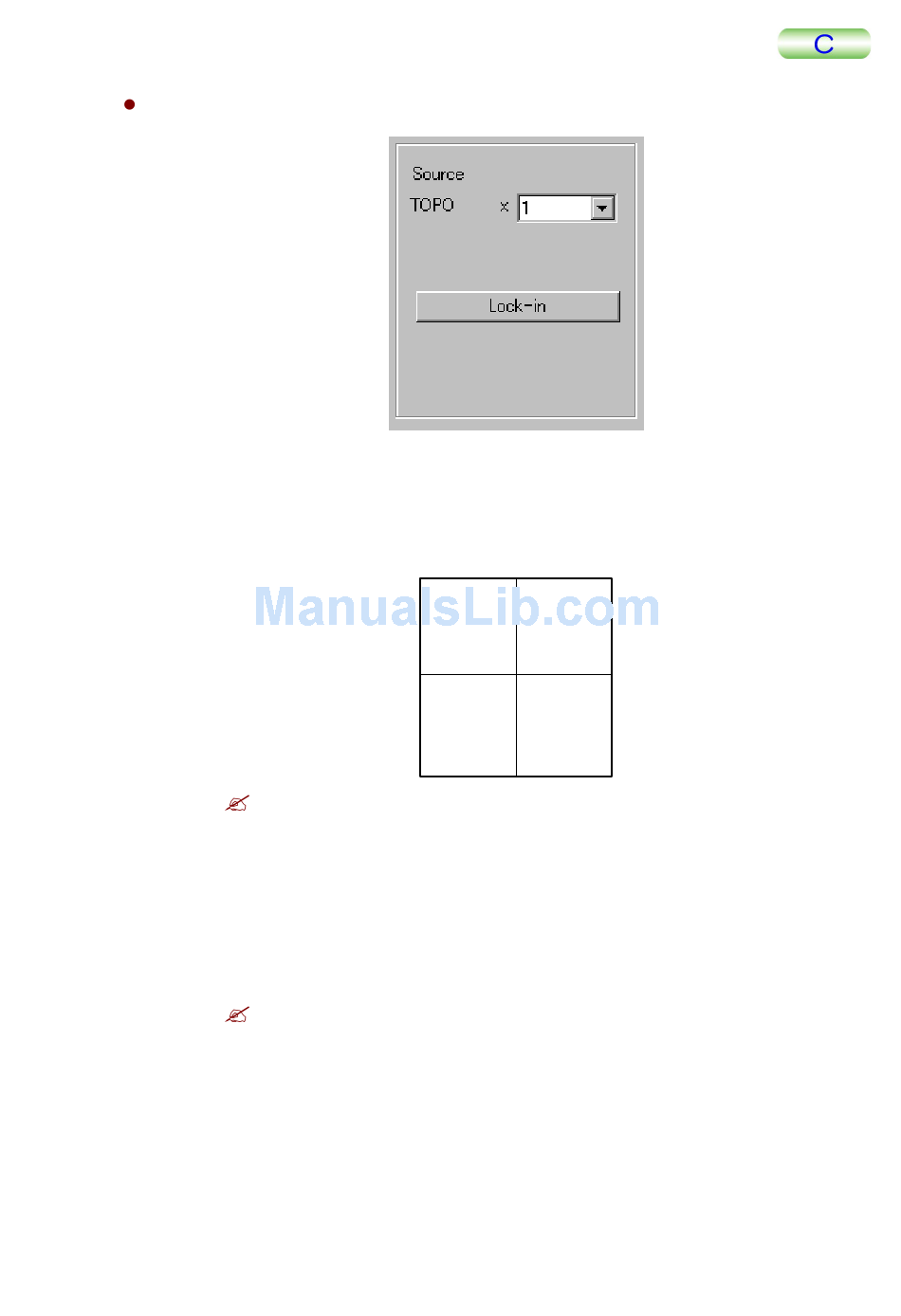

Since the source signal of the Lateral-Modulation FFM measurement tab window is
set for measuring lateral-modulation FFM, you need not set it. The measurement
pixels are fixed at 256 × 256. When measurement starts, the images appear as
follows:
• Source Gain
The same as that in the AC-AFM tab window.
• Lo
ck-in amplifier setting button
This button opens the Lock-in Amplifier Control window, which sets the extended
lock-in amplifier that is necessary for measuring lateral-modulation FFM. Details
on setting the lock-in amplifier will be provided later.
TMPM5200-2
surement tab windows
(Topo Image)
You can confirm the scan mode and source-signal settings at lateral-modulation
FFM measurement from the Lateral-Modulation FFM measurement tab win-
dow by moving directly to the advanced setting tab window.
Scan mode:
Measurement mode:
Source signal 1:
Source signal 2:
Source
signal 3:
Source signal 4:
Although the scan mode is 4 Inputs during lateral-modulation FFM measure-
ment, source signal 4 is ignored, and the system actually acquires 3 images si-
multane
ously.
Topog
raphy
Acosφ
Asinφ
(Friction
Image)
4 Inputs
VE-AFM
Topography
LIA1 (Aux1)
LIA2 (Aux2)
Topography
5 MEASUREMENT OPERATION
5-193
