Throw the lever down; take out the lamp and remove it from the lamp socket.
6.
Install a new lamp in the lamp socket and insert it into the lamp holder.
Insert the lamp socket deeply into the lamp holder so that the lamp protuberance
engages the recess in the lamp holder.
7.
Install the lamp-exchange door on the main unit and turn the lock to CLOSE
using a coin.
TMPM5200-2
③
②
①
②
③
①

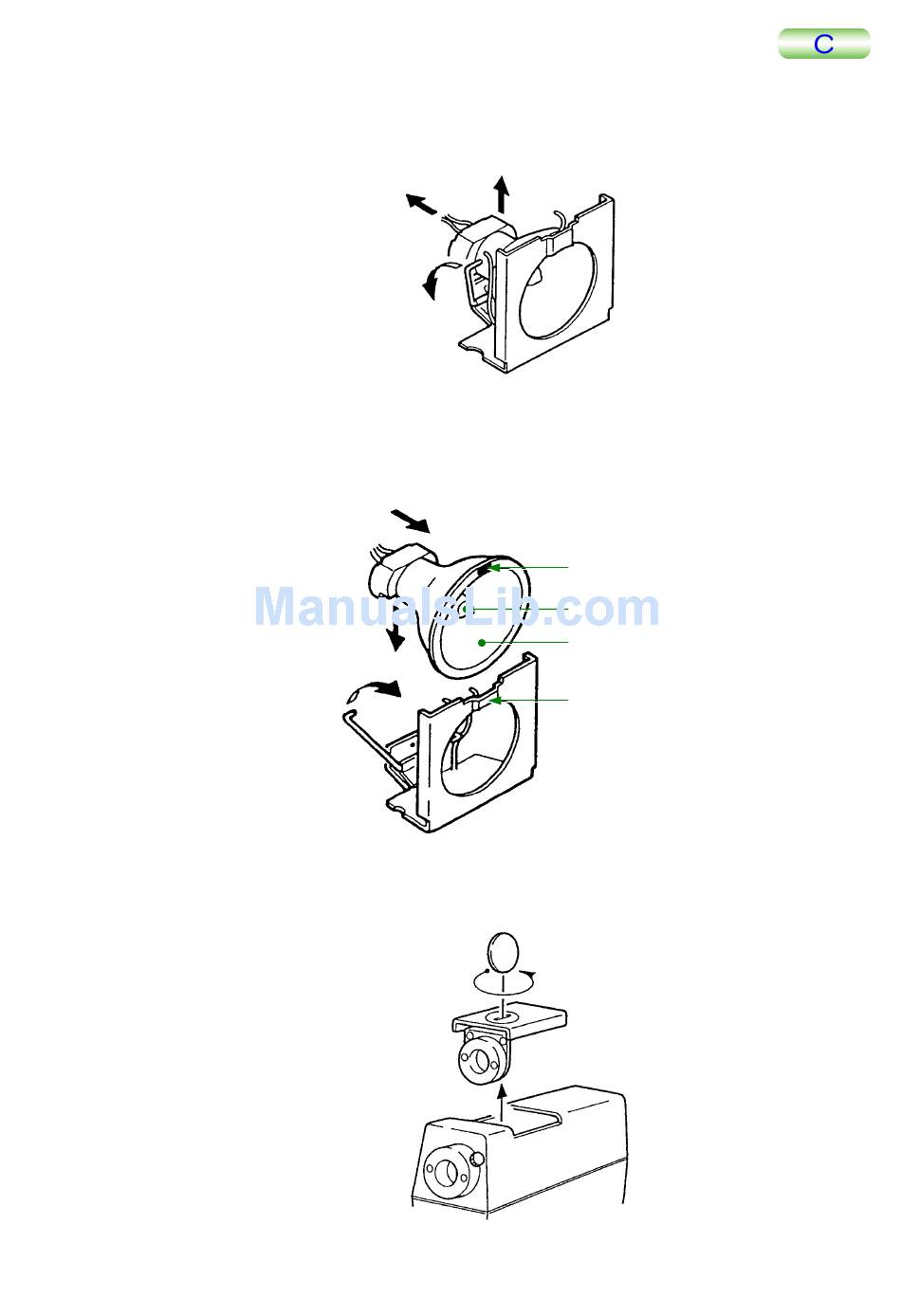

Lamp protuberance
Lamp bulb
Dichroic mirror
Holder recess
