4.1.2

Mounting the Specimen Holder

Below is the method of mounting the specimen holder on the scanner holder.
Mount the specimen holder with the beveled side coincides with front of the scanner
holder. The engraving on the front of the scanner holder cap identify type of the scanner.
When mounting the specimen holder on the scanner holder, be careful to tighten the
two fastening screws evenly.
Handle the scanner holder very carefully. Since it is a precision
mechanism, it could be damaged by a strong mechanical shock.
TMPM5200-2
4 PREPARATION FOR OBSERVATION

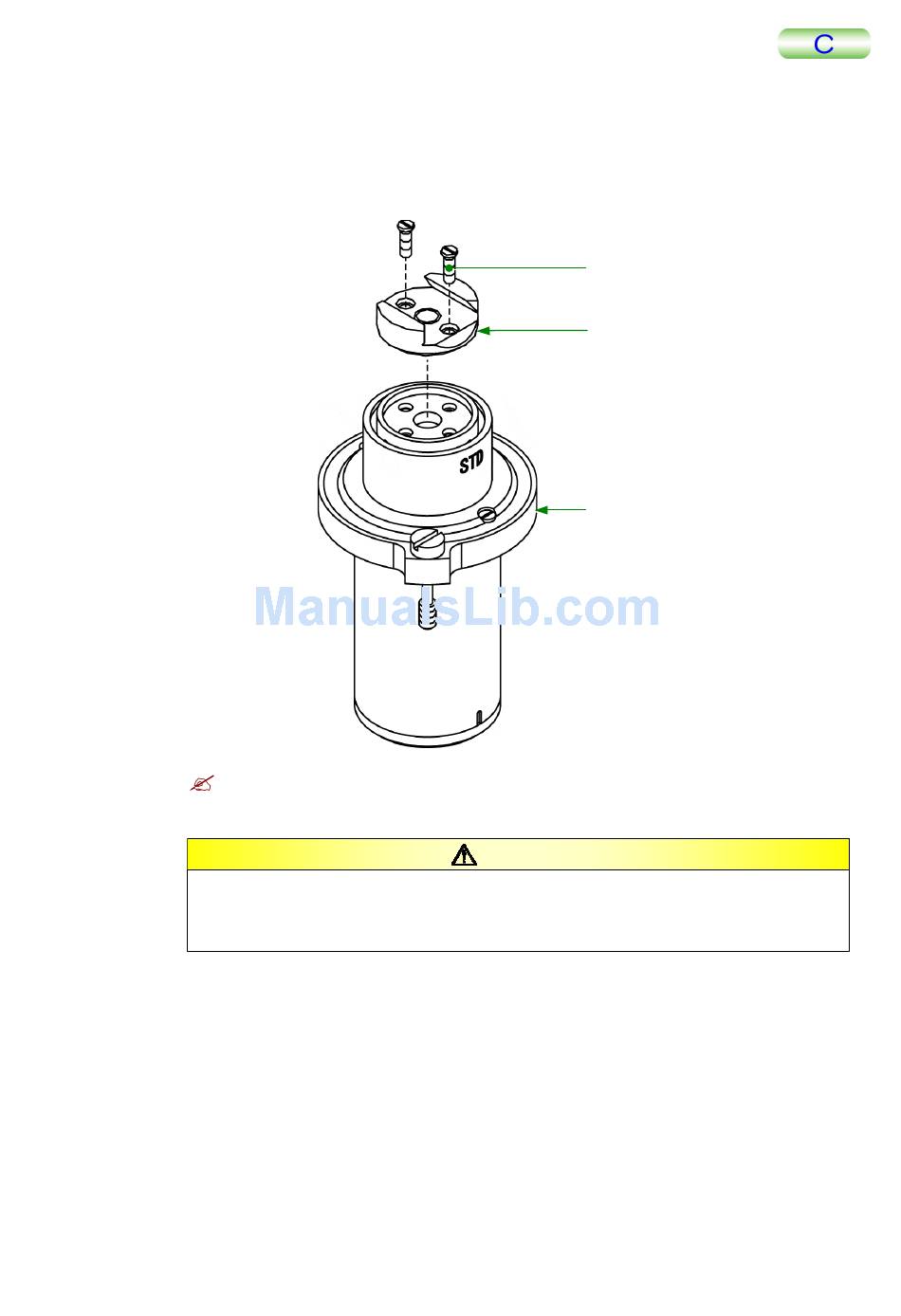

Fastening screws
Specimen holder
Scanner holder
