６ ANALYSIS OPERATION

6.13.3 Measure

The coordinates of the present cross-cursor position, and the relative distance between
the present cross-cursor coordinates and the previous cross-cursor coordinates, are
indicated.
1.
Select Measure from the Analyse pull-down menu.

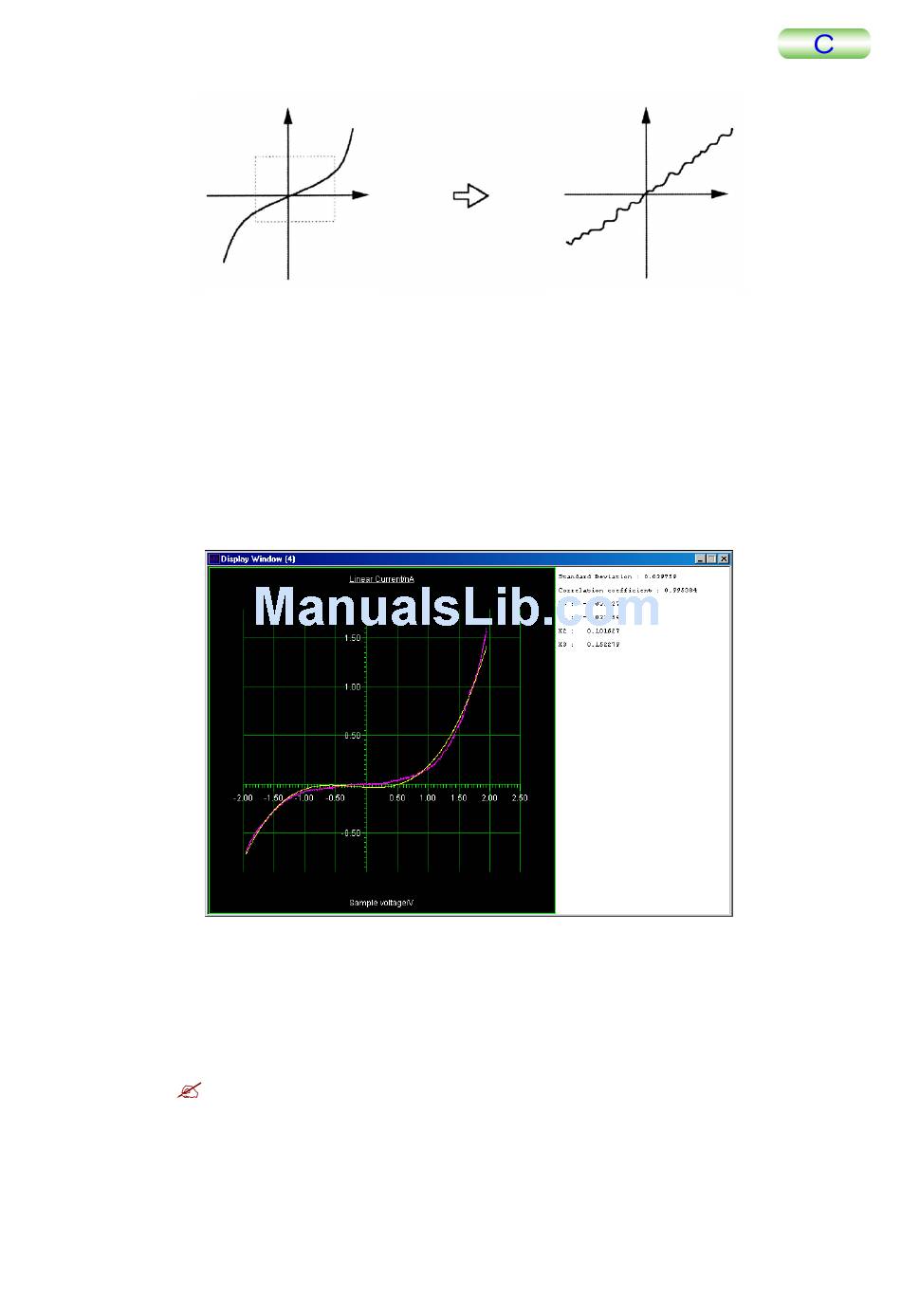

The following screen will appear.
2.
Drag the red and blue markers on the graph.
Moving the mouse cursor onto the graph changes the cursor to the shape of palm.
The marker can be moved by dragging the marker display position with the left
button on the mouse held down.
The values (X value, Y value) of the marker position displayed at the left of the
graph and the relative values of two markers (X distance, Y distance) change.
3.
Click the right button on the mouse.
Exits the processing. The marker position can be changed before the right button on
the mouse is clicked, but it cannot be changed once the processing is terminated.
6-106
2/2
/2
Designate the area with
two diagonal points
The marker moves along the graph.
Enlarged graph
