６ ANALYSIS OPERATION
• Display Mode
Specify the method of drawing a 3-dimensional image.
Illuminated
Shaded
Grid
Merge
Alpha overlay
• Alpha Level
Set the degree of opacity (alpha level) of the Illuminated image displayed over the
Shaded image when making an Alpha overlay display.
0.0 is the same as a Shaded display, and 1.0 is the same as an Illuminated display.
• Light1, Light2
Used to adjust the illumination direction of the light source. You can set up to two
light sources.
Azimuth
Elevation
Brightness
6-84
Performs 3-dimensional display computation for the condition in
which the surface is illuminated by light, and displays the results.
Displays a 3-dimensional solid image. The display colors of the
surface are based on those of the original image.
Displays a 3-dimensional solid image using a wire frame.
Combines two images into a 3-dimensional image. The height of
the two combined images is compared at all points. In all cases, the
higher point is used to draw the 3-dimensional image.
Combining of the images is done by an Illuminated display.

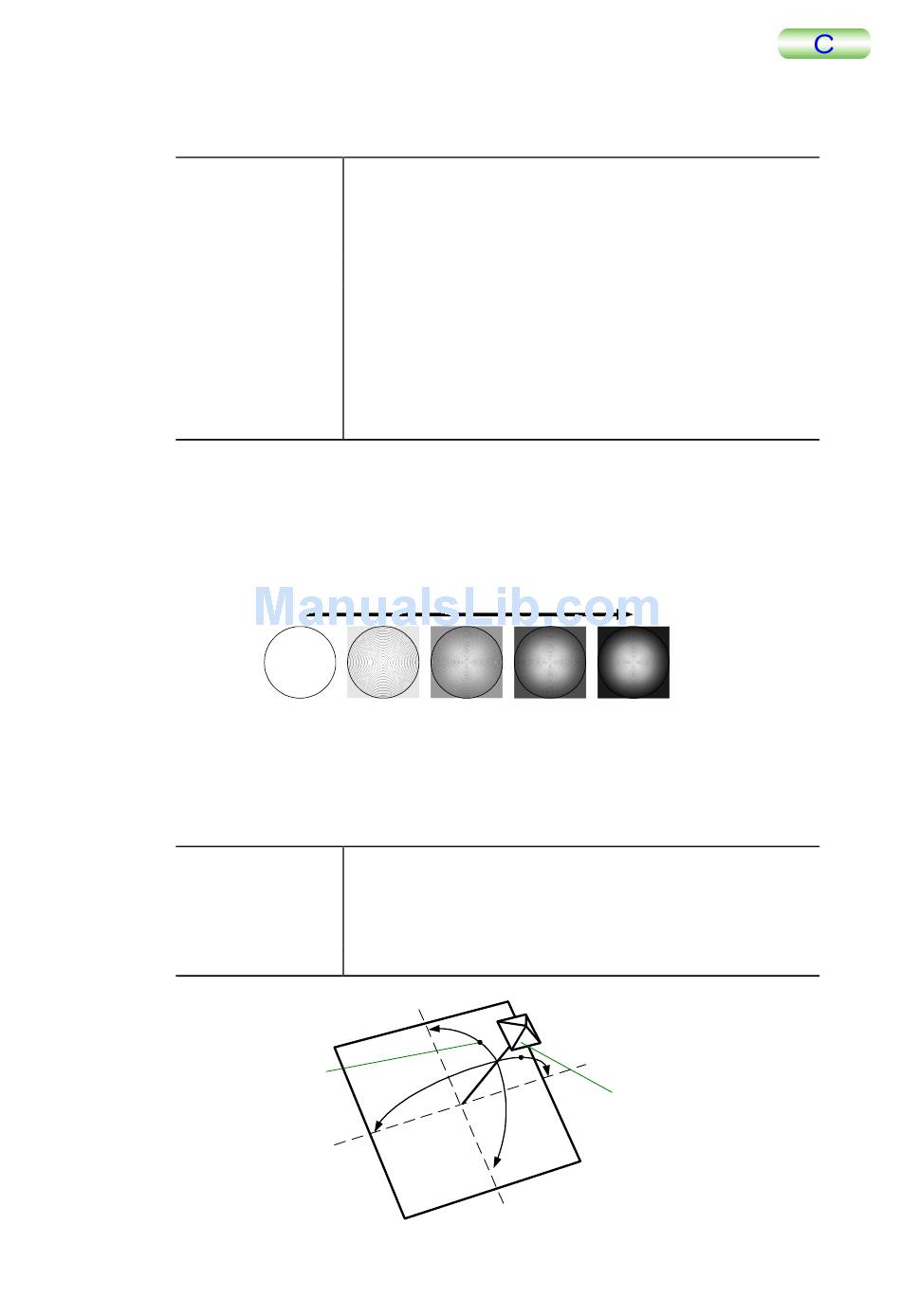

Combines a Shaded display and an Illuminated display. A
semi-transparent Illuminated image is displayed superimposed on a
Shaded image.
0.0
Shaded
Specifies the angle of rotation in the horizontal direction with
respect to the screen (360 ° ).
Specifies the angle of rotation in the vertical direction with respect
to the screen (–90 ° to 90 ° ).
Specifies the intensity of the light from the light source.
Elevation
Alpha level
Combined Illuminated
display
1.0
Azimuth
