GEOMETRY MENU (IMAGE PROCESSING FUNCTION)

6.8.1

Translate

Shifts the current image parallel to itself on the screen.
1.
Click on Geometry in the main menu; then select Translate in the pull-down
menu.
A cross cursor "+" appears on the image, and the message "Select point 1/2" is
displayed.
2.
Designate the starting point of image shift with the mouse.
The message "Select point 2/2" is displayed on the window.
3.
Designate the ending point of image shift.
The whole image will shift in parallel from the first point to the second.
1/2
6.8.2

Rotate

Rotates the current image on the screen.
The following four rotations are provided:
1.
Click on Geometry in the main menu; then select Rotate in the pull-down
menu.
When Rotate 90, Rotate 180 or Rotate 270 is selected, image rotation is immedi-
ately executed.
TMPM5200-2
The part of the original image that lies outside the screen is deleted. Also, the
vacant part of the current image is displayed in black (0).

Translate

2/2
Rotation
The image is rotated 90 ° clockwise around the image
90
center.
180 The image is rotated 180 ° clockwise around the image
center.
The image is rotated 270 ° clockwise around the image
270
center.
theta The image is rotated to a specified angle in a designated
direction around the designated point on the image.
６ ANALYSIS OPERATION

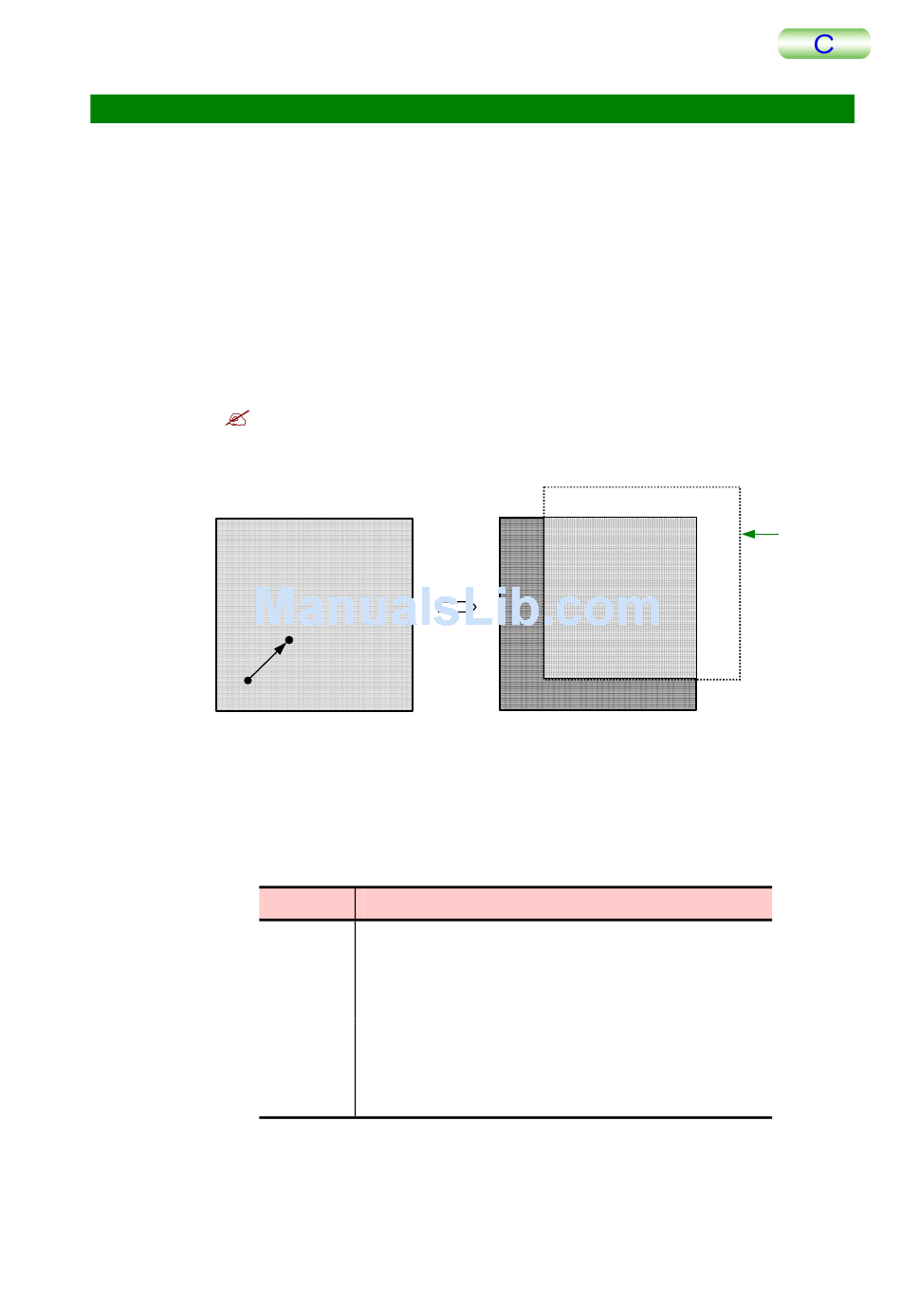

After 'Translate' operation
Description
Deleted
