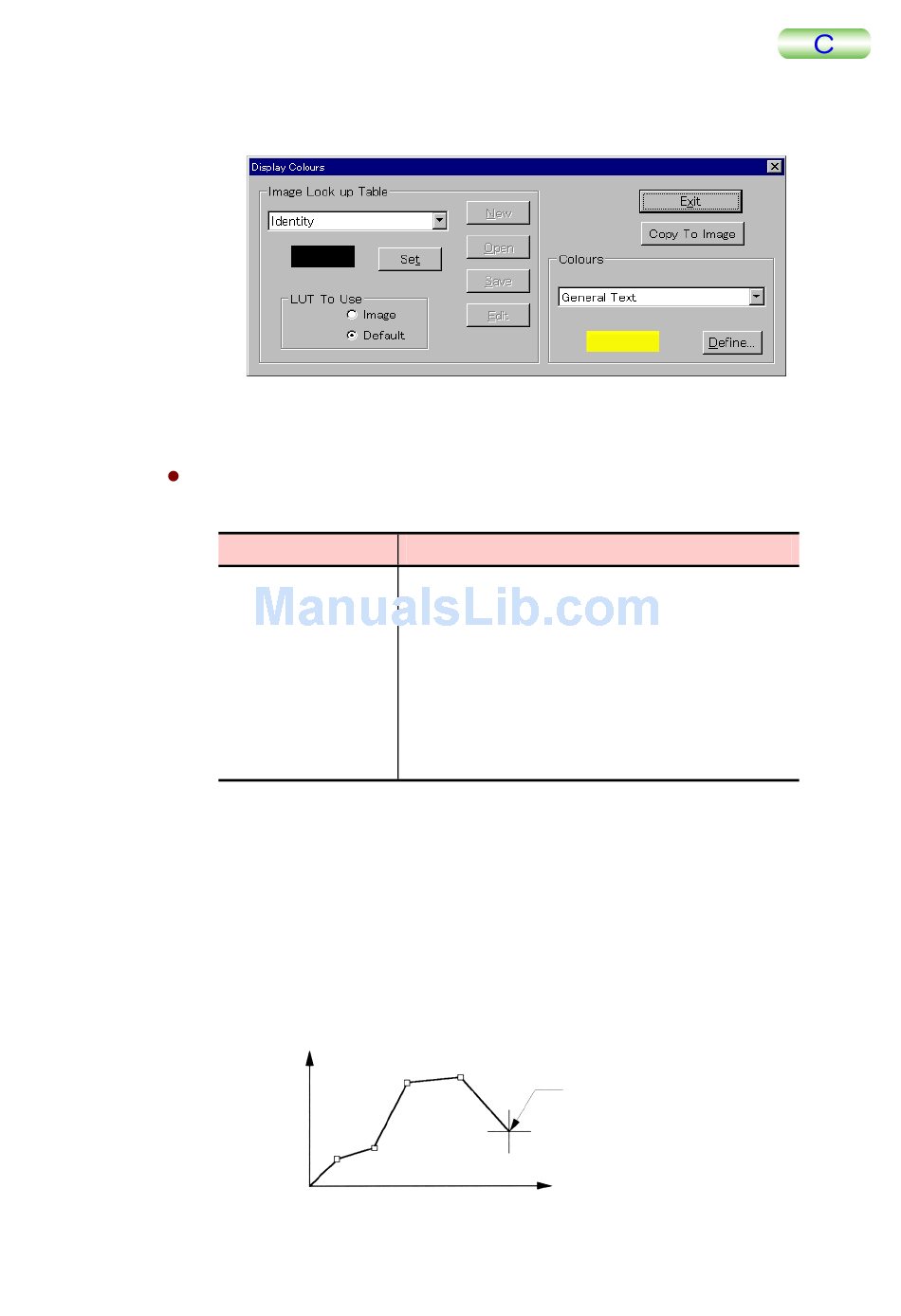

6.10.5 Display Colours...

The color for displaying an image and colors for displaying other data in the screen are
designated.
Image Look up Table
The color for displaying an image is selected in this frame.
Identity
Inverse
Logarithmic
Pseudo colour
Blue
Yellow
User 1, User 2
New:
Open:
Save:
Edit:
The procedure for making or modifying a color table with "Edit" is as follows:
1.
Select User 1 or User 2 and click on the Edit button.
Red, green and blue color table definition windows will appear.
2.
Define the R (red), G (green) and B (blue) tables using the mouse.
Intensity
TMPM5200-2
Color table
Linear gray scale (High: White, Low: Black)
Inverse linear scale (High: Black, Low: White)
Logarithmic gray scale
High: Red, Middle: Green, Low: Blue
Blue mono-color (linear scale)
Yellow mono-color (linear scale)
User-defined color
Image color is defined as displayed in the above box.
A saved color table is loaded from the disk.
The current color table is saved on the disk.
The current user-defined color table can be changed.
Description
Designate by pressing the
left mouse-button.
LUT index
６ ANALYSIS OPERATION
6-87
