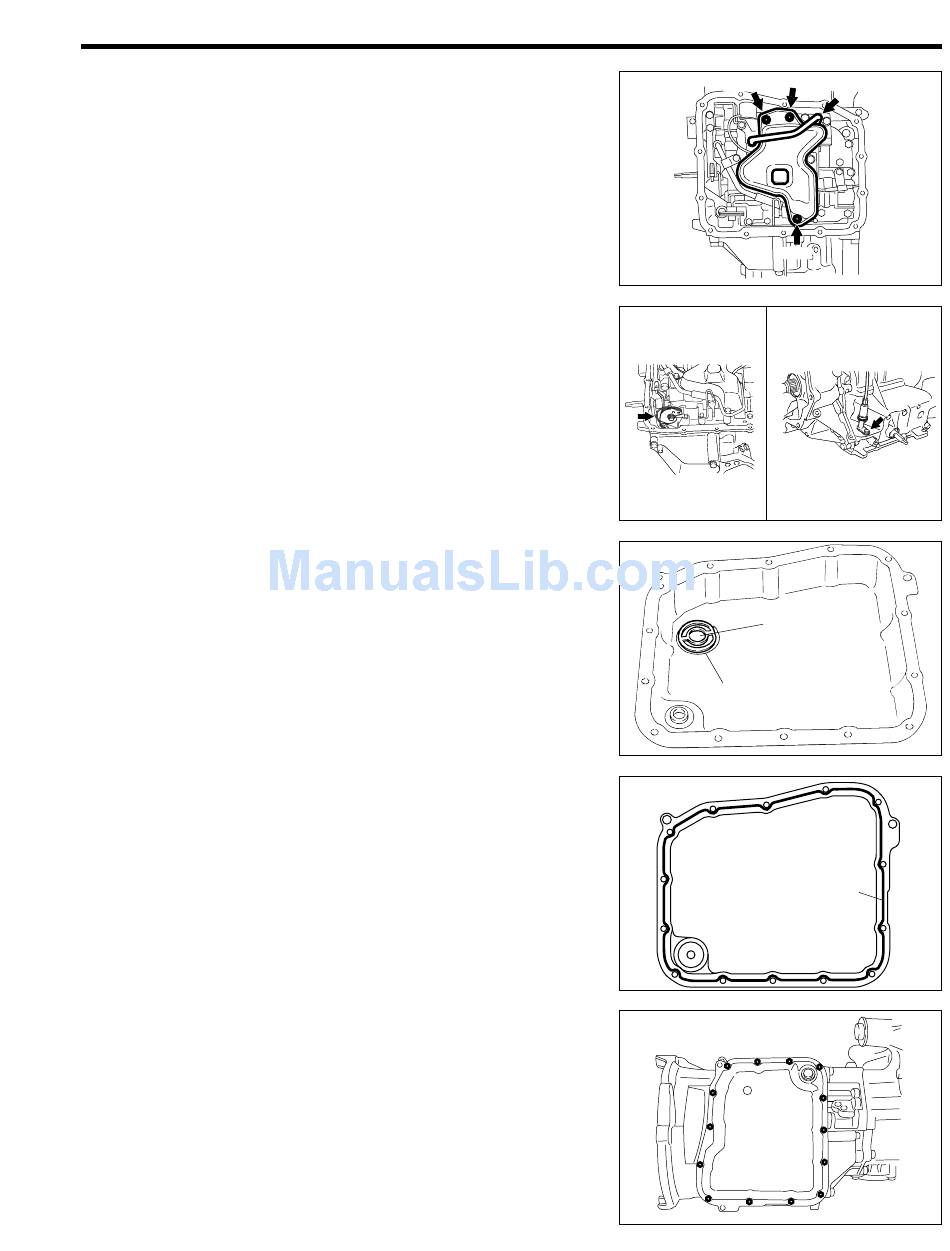

(3) Apply ATF to the O-ring contact section of the oil
strainer.
(4) Install the valve body tube (A).
(5) Install the oil strainer with the 3 bolts.
Tightening Torque:
NOTE:
•
The numeral in the right illustration indicates the nomi-
nal length of the bolt.
•
Be sure to tighten the bolts alternately and diagonally.
37. Assembly of throttle cable
(1) Coat a new O-ring with the ATF.
(2) Install the new O-ring to the throttle cable.
(3) Insert the throttle cable to the transmission case.
(4) Tighten the throttle cable with a bolt.
Tightening Torque:
(5) Connect the throttle cable to the throttle valve cam.
38. Assembly of oil pan
(1) Place the transmission magnet in the protrusion (A) of
the transmission oil pan assembly.
(2) Apply the Three Bond 1281B to the entire periphery of
the oil pan without any discontinuation, as indicated in
the right figure.
NOTE:
•
Be very careful not to get oil to the application surface.
(3) Install the new transmission oil pan assembly with the
14 bolts.
Tightening Torque:
NOTE:
•
Be sure to tighten the bolts alternately and diagonally.
•
When installing the transmission oil pan, be very care-
ful not to allow the oil pan to come in contact with any
inside part.
6.9 - 9.8 N·m (0.7 - 1.0 kgf-m)
6.9 - 9.8 N·m (0.7 - 1.0 kgf-m)
6.9 - 9.8 N·m (0.7 - 1.0 kgf-m)
AT–85
48.5
48.5 (A)
48.5
JAT00255-00229
JAT00256-00230
(A)
Transmission magnet
JAT00257-00231
φ 3.8 mm
JAT00258-00232
JAT00259-00233
