ABB CRB 1100 Product Manual page 421

4
5
6
7
Product manual - CRB 1100
3HAC078007-001 Revision: J

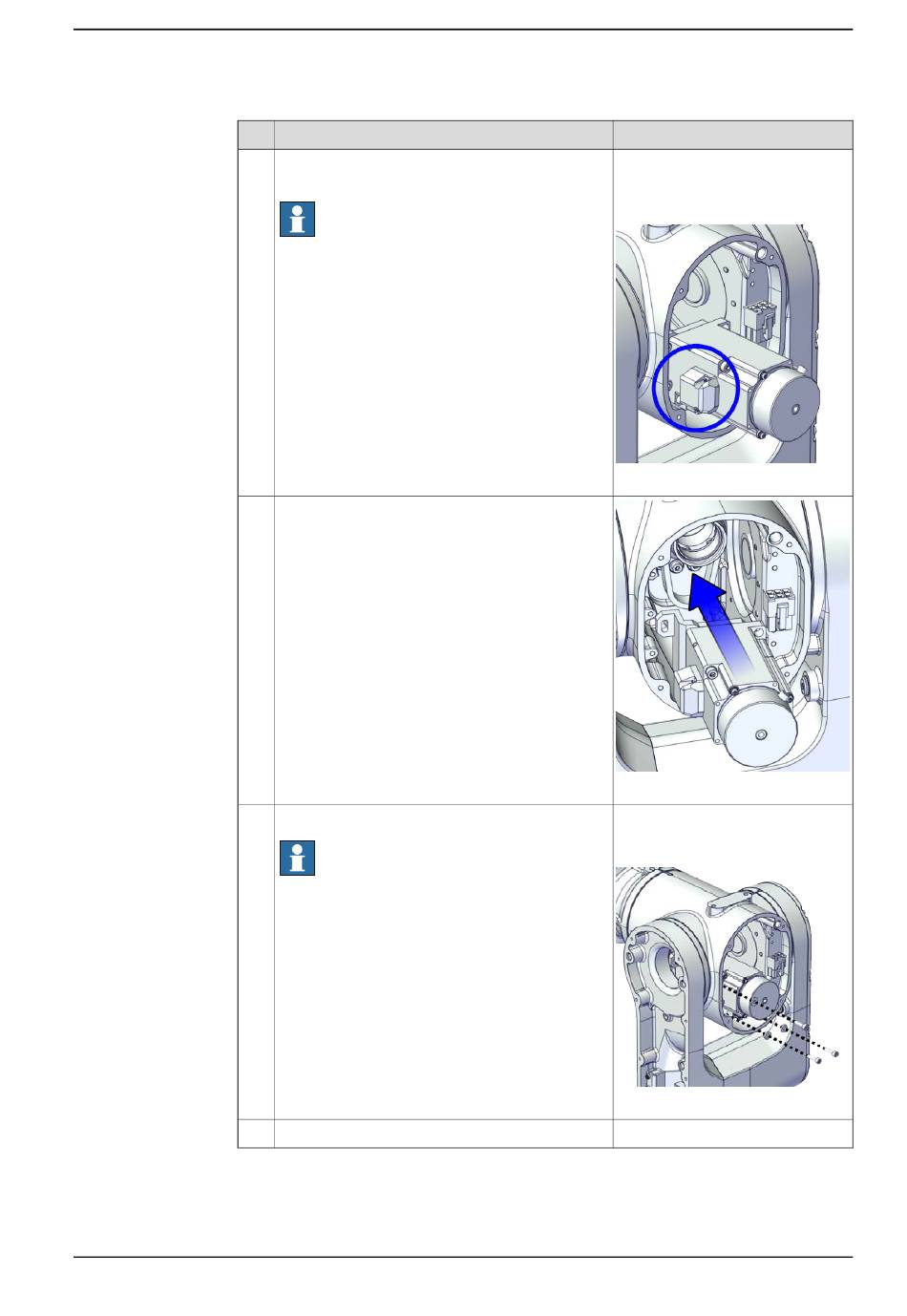

Action
Orient the motor correctly and fit it into the hous-
ing.
Note
Make sure the motor flange does not press on the
timing belt.
Install the timing belt to the motor pulley.
Refit the screws and washers.
Note
Do not tighten the screws yet.
Remove the motor fitting tool.
© Copyright 2021-2023 ABB. All rights reserved.
5 Repair
5.6.1 Replacing the housing
Continued
Note
Motor orientation: orient the motor
according to the figure below, in
regard to the encircled motor con-
nector.
xx1800003287
xx1800003617
Screw: M3x12 12.9 Lafre
2C2B/FC6.9 (3 pcs)
Washer, 3HAC064765-001 (3 pcs)
xx1800003095
Continues on next page
421
