1. The core interrupt register bits are shown in
page 1270.
34.16

OTG_FS control and status registers

By reading from and writing to the control and status registers (CSRs) through the AHB
slave interface, the application controls the OTG_FS controller. These registers are 32 bits
wide, and the addresses are 32-bit block aligned. The OTG_FS registers must be accessed
by words (32 bits).
CSRs are classified as follows:
• Core global registers
•
Host-mode registers
• Host global registers

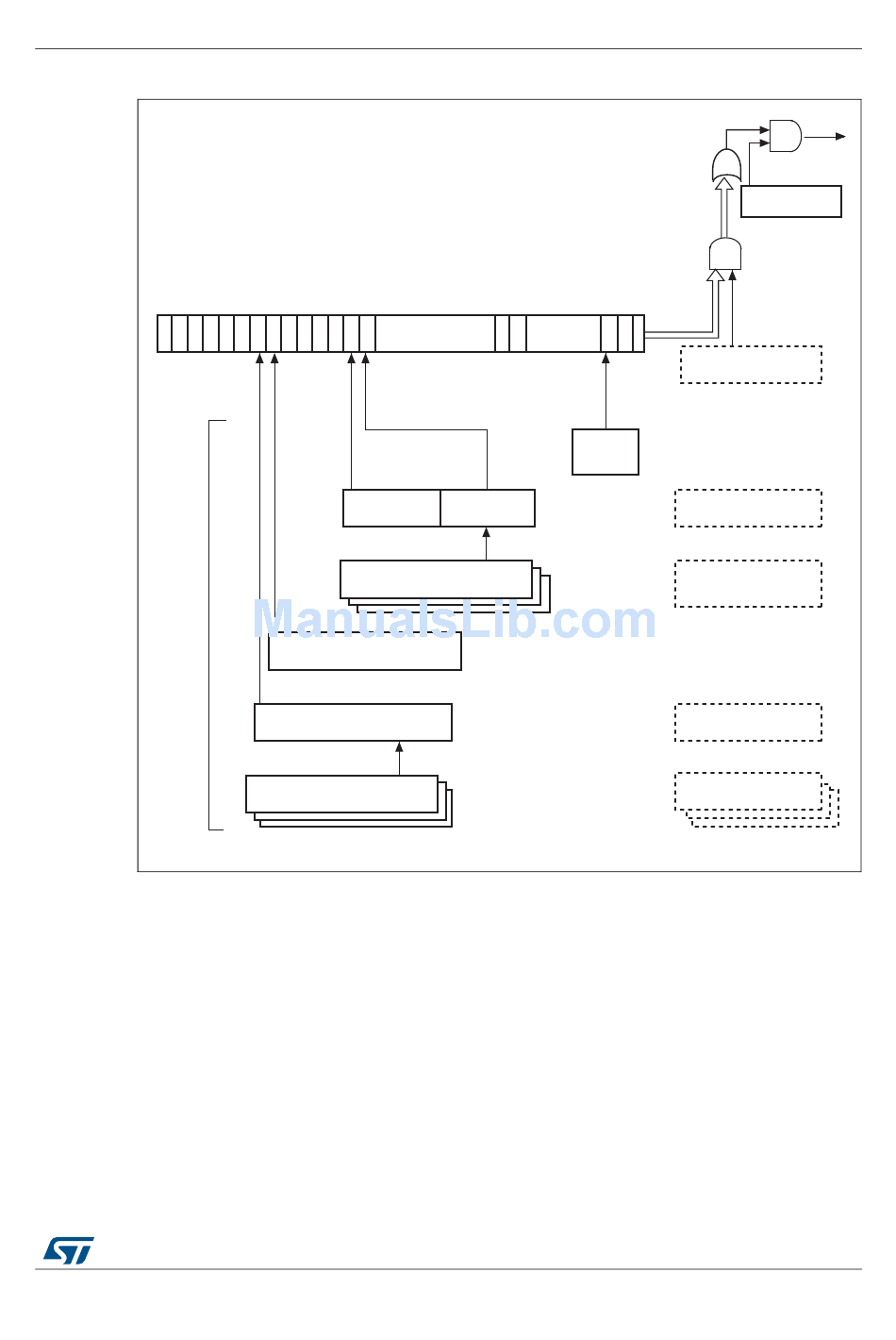

Figure 394. Interrupt hierarchy

22 21
20 19 18
(1)
Device all endpoints
interrupt register
OUT endpoints
Device IN/OUT endpoint
interrupt registers 0 to 3
Host port control and status
register
Host all channels interrupt
register
Host channels interrupt
registers 0 to 7
DocID018909 Rev 11
17:10 9 8
16:9 3:0
IN endpoints
OTG_FS core interrupt register (OTG_FS_GINTSTS) on
USB on-the-go full-speed (OTG_FS)
OR
AND
7:3 2 1 0
Core interrupt mask
OTG
interrupt
register
Device all endpoints
interrupt mask register
Device IN/OUT
endpoints common
interrupt mask register
Host all channels
interrupt mask register
Host channels interrupt
mask registers 0 to 7
Interrupt
Global interrupt
mask (Bit 0)
AHB configuration
register
register
ai15616b
1255/1731
