NOR/PSRAM address mapping

HADDR[27:26] bits are used to select one of the four memory banks as shown in
1. HADDR are internal AHB address lines that are translated to external memory.
1594/1731

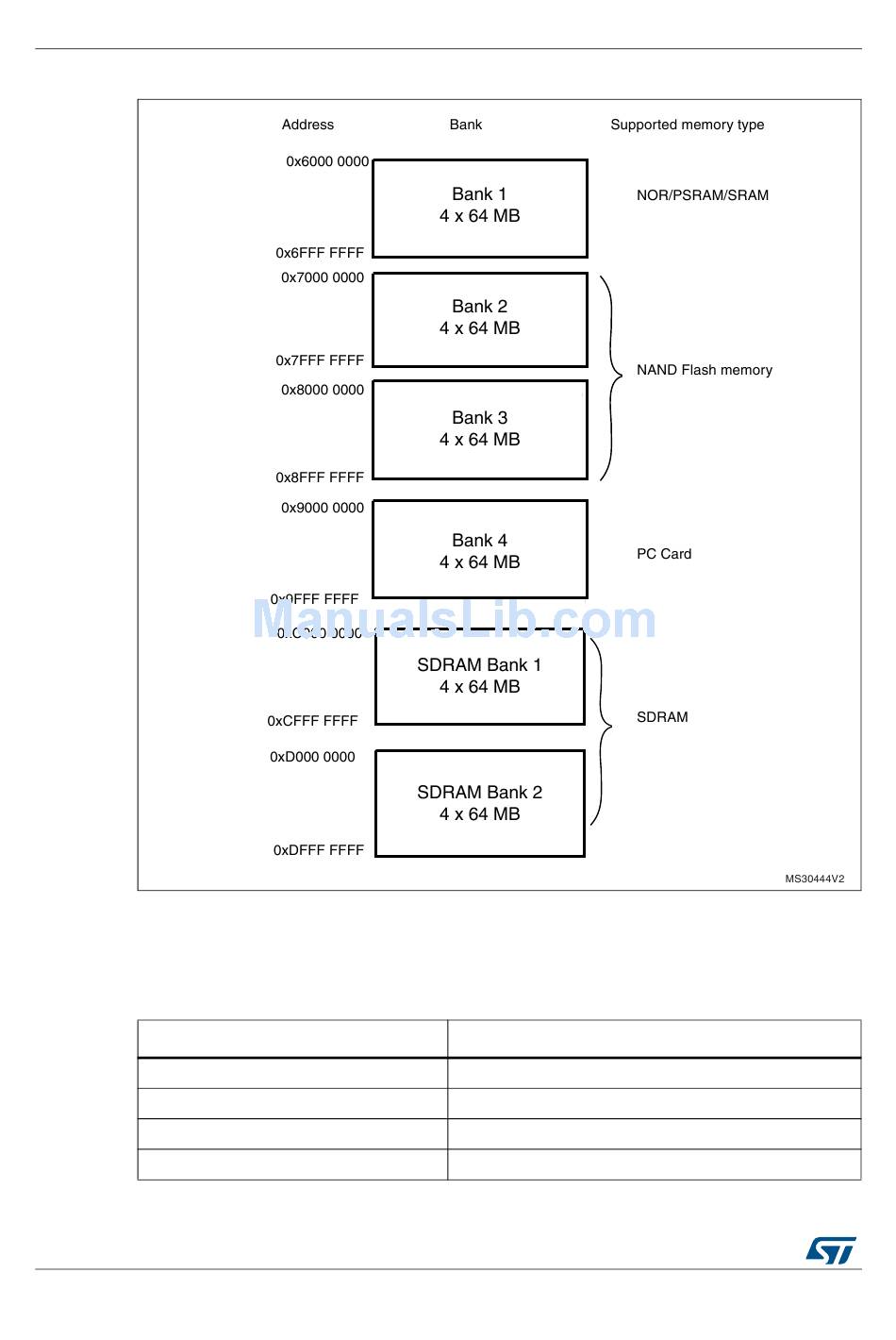

Figure 455. FMC memory banks

Table 249. NOR/PSRAM bank selection

(1)
HADDR[27:26]
00
01
10
11
DocID018909 Rev 11
Selected bank
Bank 1 - NOR/PSRAM 1
Bank 1 - NOR/PSRAM 2
Bank 1 - NOR/PSRAM 3
Bank 1 - NOR/PSRAM 4
RM0090
Table 249.
