RM0090 Flexible memory controller (FMC)
The FMC supports both NOR Flash wait state configurations, for each Chip Select, thanks
to the WAITCFG bit in the FMC_BCRx registers (x = 0..3).

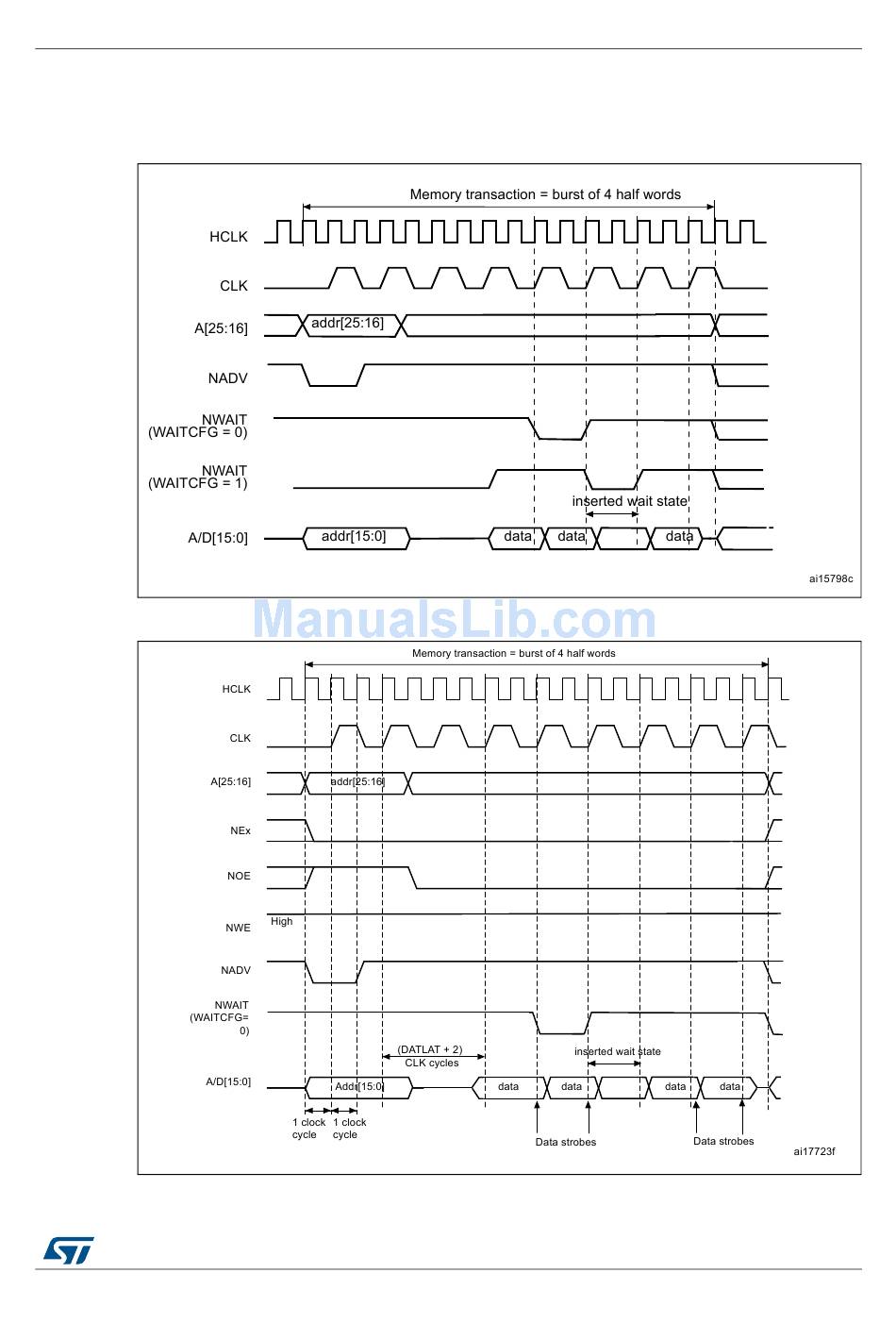

Figure 471. Wait configuration waveforms

Figure 472. Synchronous multiplexed read mode waveforms - NOR, PSRAM (CRAM)

1. Byte lane outputs BL are not shown; for NOR access, they are held high, and, for PSRAM (CRAM) access,
DocID018909 Rev 11 1623/1731
1669
