Random number generator (RNG)
24 Random number generator (RNG)
This section applies to the whole STM32F4xx family, unless otherwise specified.
24.1

RNG introduction

The RNG processor is a random number generator, based on a continuous analog noise,
that provides a random 32-bit value to the host when read.
The RNG passed the FIPS PUB 140-2 (2001 October 10) tests with a success ratio of 99%.
24.2 RNG main features
•
It delivers 32-bit random numbers, produced by an analog generator
•
40 periods of the RNG_CLK clock signal between two consecutive random numbers
•
Monitoring of the RNG entropy to flag abnormal behavior (generation of stable values,
or of a stable sequence of values)
• It can be disabled to reduce power consumption
24.3 RNG functional description
Figure 232
1. For more details about RNG Clock (RNG_CLK) source, please refer to
for STM32F42xxx and STM32F43xxx (RCC)
STM32F405xx/07xx and
The random number generator implements an analog circuit. This circuit generates seeds
that feed a linear feedback shift register (RNG_LFSR) in order to produce 32-bit random
numbers.
758/1731
shows the RNG block diagram.

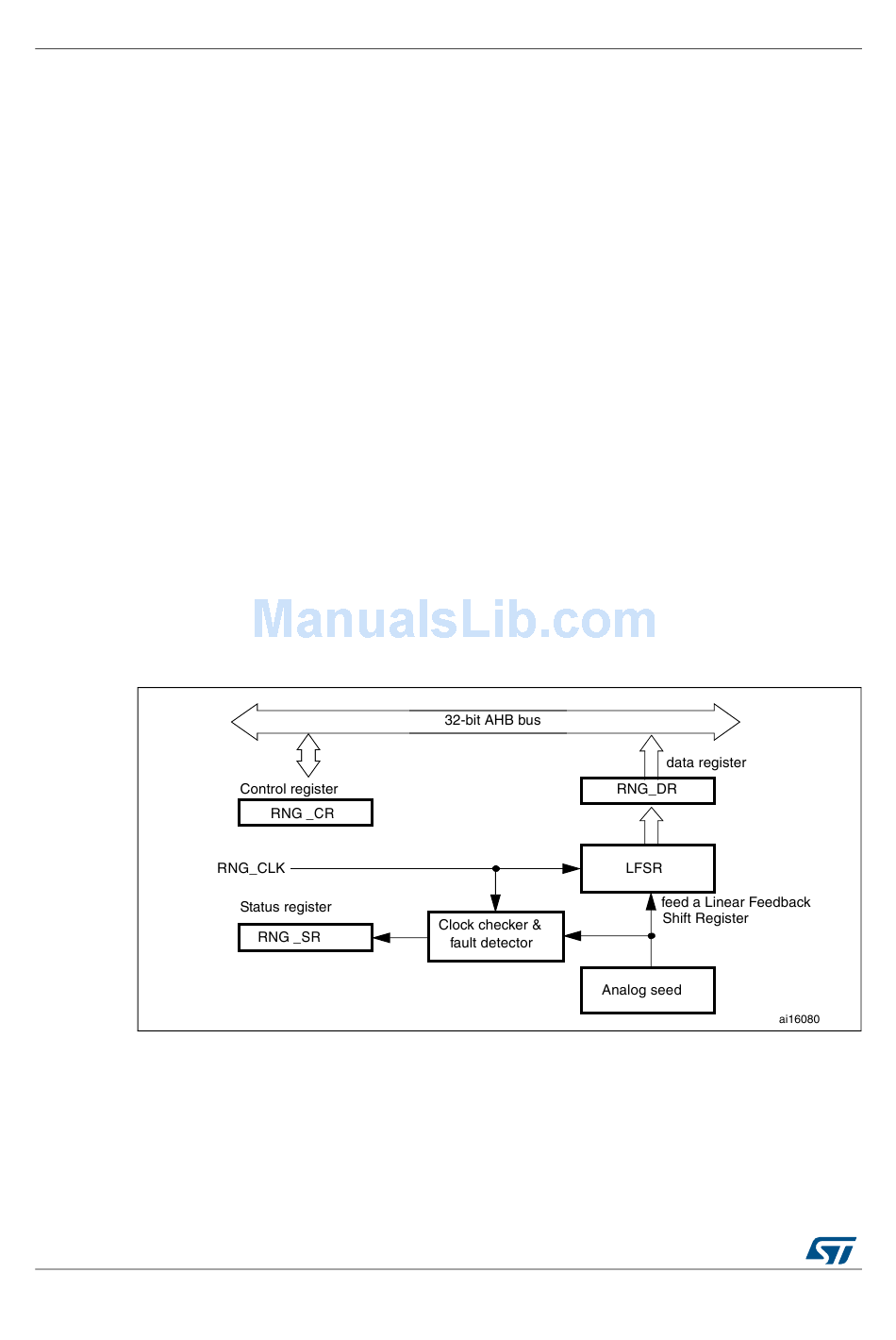

Figure 232. Block diagram

STM32F415xx/17xx(RCC).
DocID018909 Rev 11
Section 6: Reset and clock control
and Section 7: Reset and clock control for
RM0090
