Flexible memory controller (FMC)
The differences with mode1 are the toggling of NOE that goes on toggling after NADV
changes and the independent read and write timings.
Bit No.
31-21
20
19
18:16
15
14
13
12
11
10
9
8
7
6
5-4
1616/1731

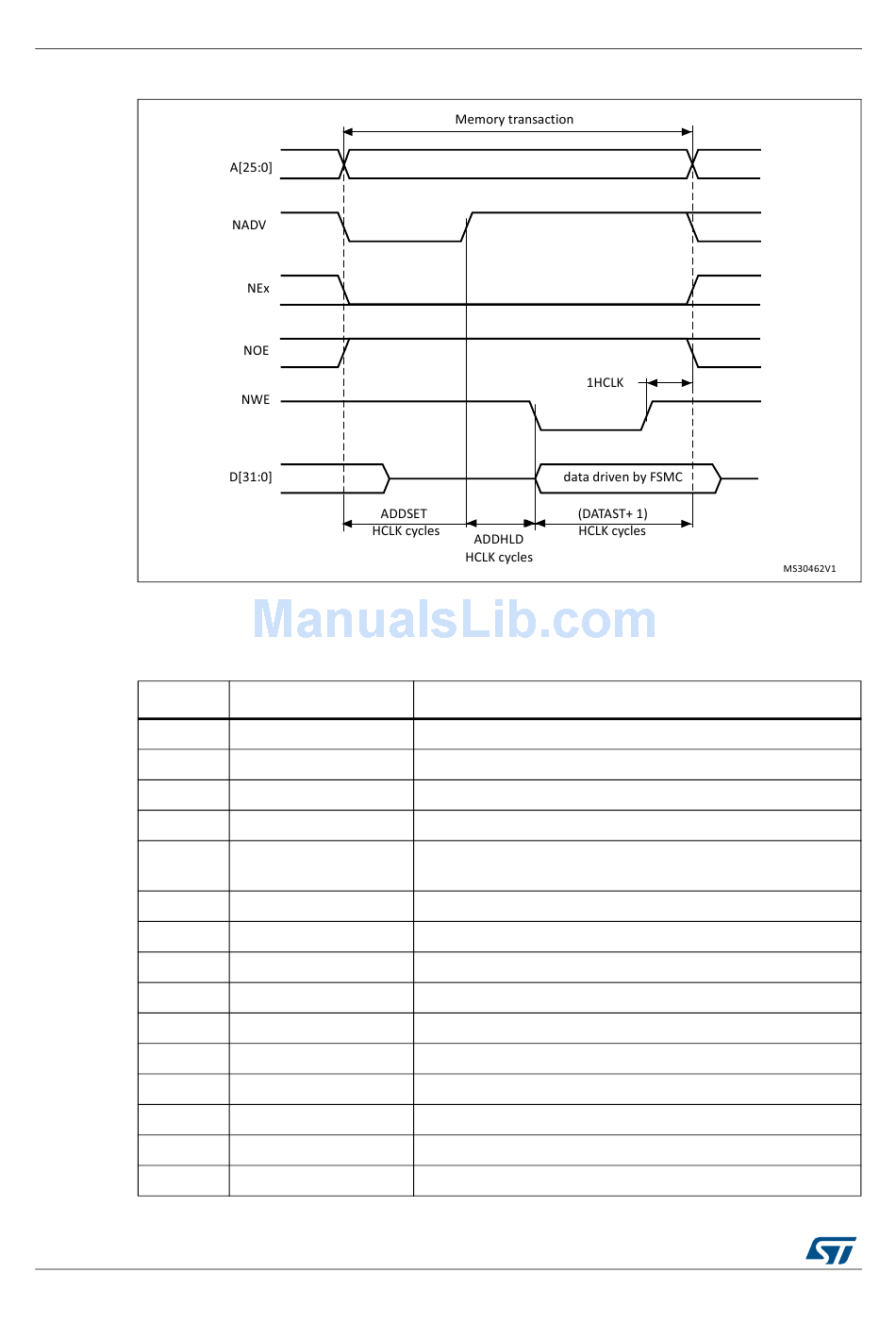

Figure 466. ModeD write access waveforms

Table 275. FMC_BCRx bit fields

Bit name
Reserved 0x000
CCLKEN As needed
CBURSTRW 0x0 (no effect in asynchronous mode)
CPSIZE 0x0 (no effect in asynchronous mode)
Set to 1 if the memory supports this feature. Otherwise keep
ASYNCWAIT
at 0.
EXTMOD 0x1
WAITEN 0x0 (no effect in asynchronous mode)
WREN As needed
WAITCFG Don't care
WRAPMOD 0x0
WAITPOL Meaningful only if bit 15 is 1
BURSTEN 0x0
Reserved 0x1
FACCEN Set according to memory support
MWID As needed
DocID018909 Rev 11
Value to set
