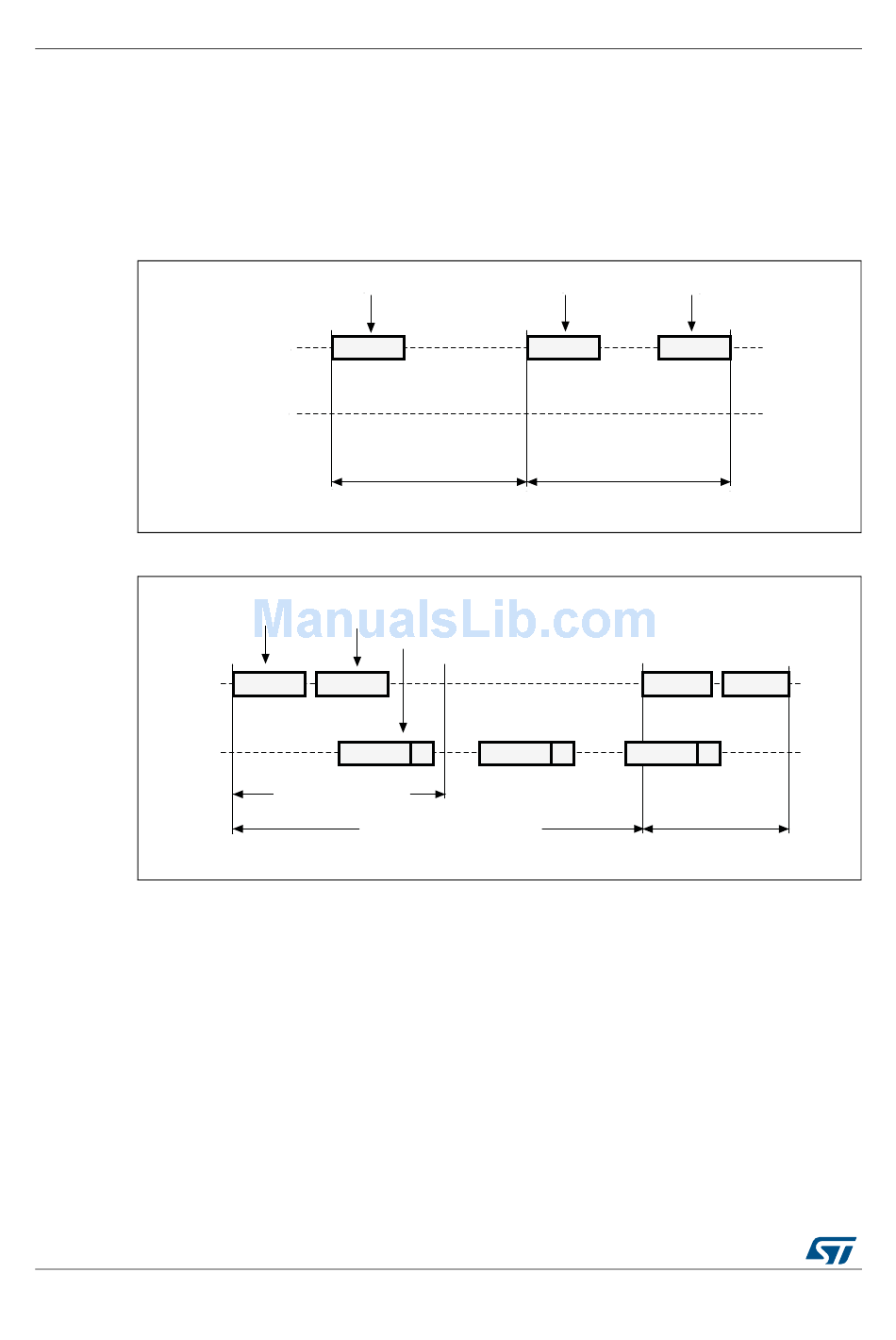

Figure 321. Sdio "No Response" And "No Data" Operations; Figure 322. Sdio (Multiple) Block Read Operation - STMicroelectronics STM32F405 Reference Manual

Secure digital input/output interface (SDIO)
The basic transaction on the MultiMediaCard/SD/SD I/O bus is the command/response
transaction. These types of bus transaction transfer their information directly within the
command or response structure. In addition, some operations have a data token.
Data transfers to/from SD/SDIO memory cards are done in data blocks. Data transfers
to/from MMC are done data blocks or streams. Data transfers to/from the CE-ATA Devices
are done in data blocks.
SDIO_CMD
SDIO_D
1012/1731

Figure 321. SDIO "no response" and "no data" operations

From host to card(s)
SDIO_CMD Command
SDIO_D
Operation (no response)

Figure 322. SDIO (multiple) block read operation

From host to card From card to host
Command Response
Data block crc
Block read operation
Multiple block read operation
DocID018909 Rev 11
From host to card
Command
data from card to host
Data block crc
From card to host
Response
Operation (no data)
ai14734
Stop command
stops data transfer
Command Response
Data block crc
Data stop operation
RM0090
ai14735
