Figure 292. Tristate Strategy On Sd Output Line On An Inactive Slot - STMicroelectronics STM32F405 Reference Manual

Serial audio interface (SAI)

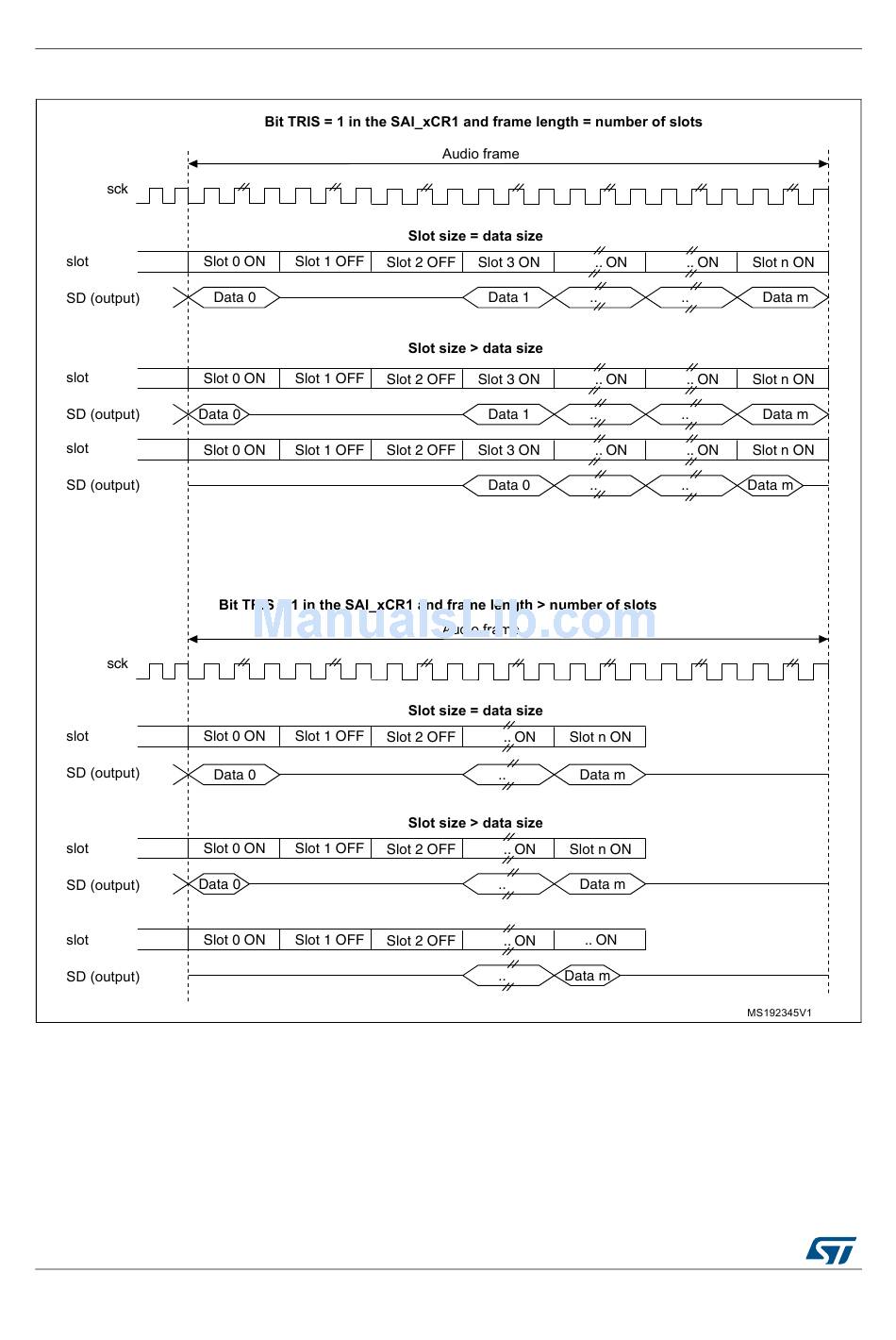

Figure 292. Tristate strategy on SD output line on an inactive slot

When the selected audio protocol uses the FS signal as a start of frame and a channel side
identification (bit FSDEF = 1 in the SAI_xFRCR register), the tristate mode is managed
according to
half frame length > number of slots/2, and NBSLOT=6).
