RM0090 Flexible memory controller (FMC)
Mode C - NOR Flash - OE toggling

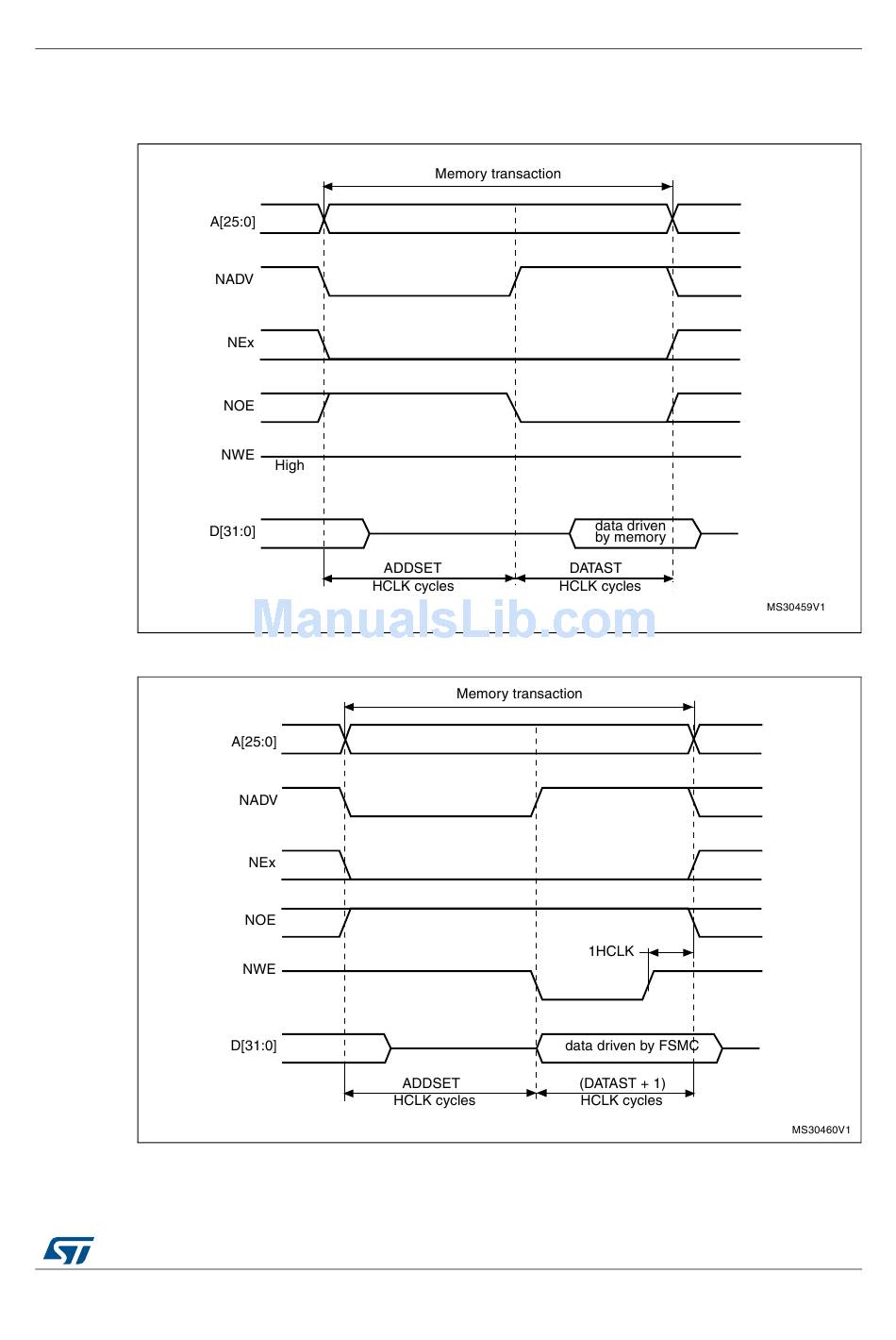

Figure 463. ModeC read access waveforms

Figure 464. ModeC write access waveforms

The differences compared with mode1 are the toggling of NOE and the independent read
and write timings.
