RM0090
•
Command path state machine (CPSM)
–

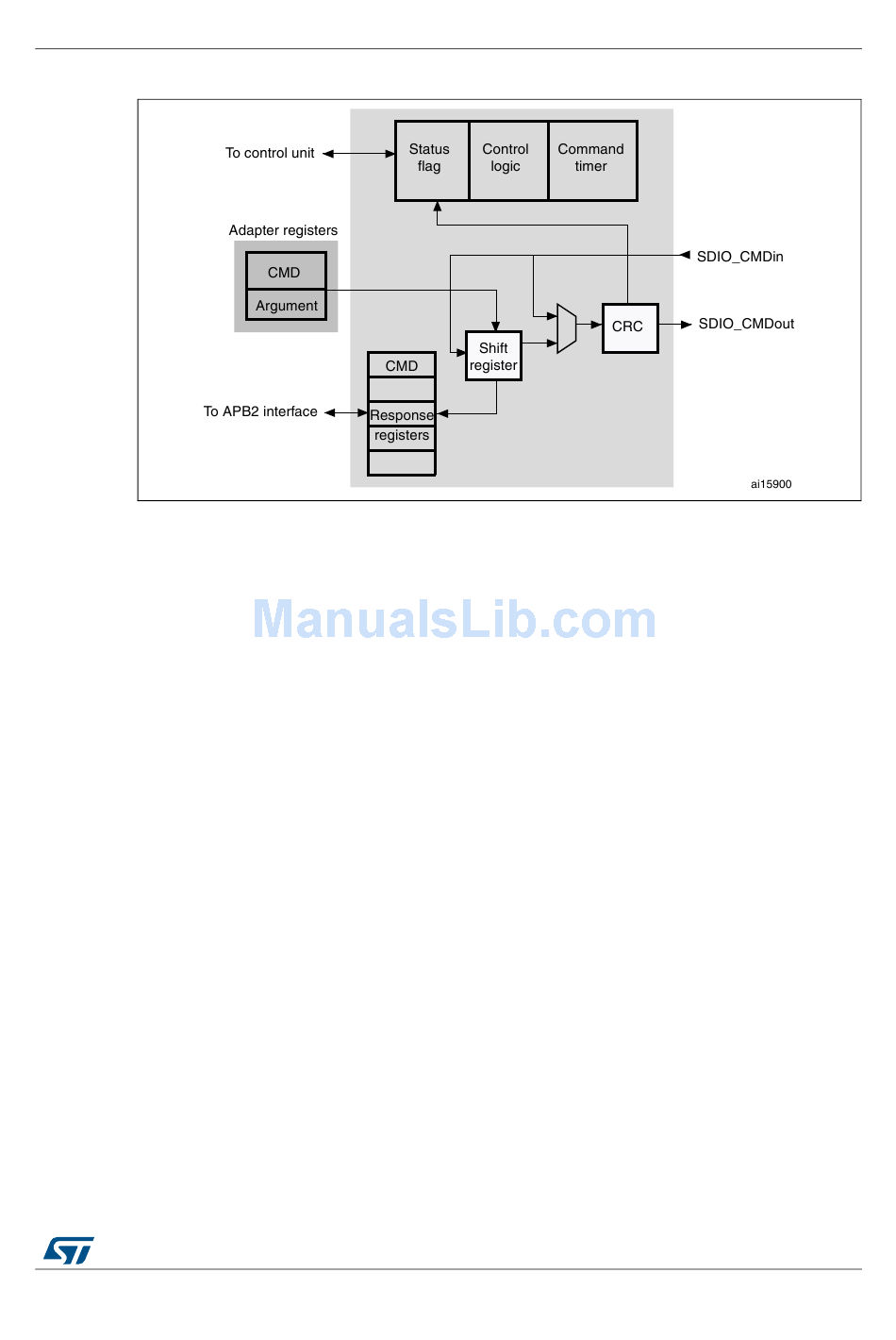

Figure 329. SDIO adapter command path

When the command register is written to and the enable bit is set, command
transfer starts. When the command has been sent, the command path state
machine (CPSM) sets the status flags and enters the Idle state if a response is not
required. If a response is required, it waits for the response (see
page 1018). When the response is received, the received CRC code and the
internally generated code are compared, and the appropriate status flags are set.
DocID018909 Rev 11
Secure digital input/output interface (SDIO)
Figure 330 on
1017/1731
1067
