Programming
Procedures
Display/Instructions
Step

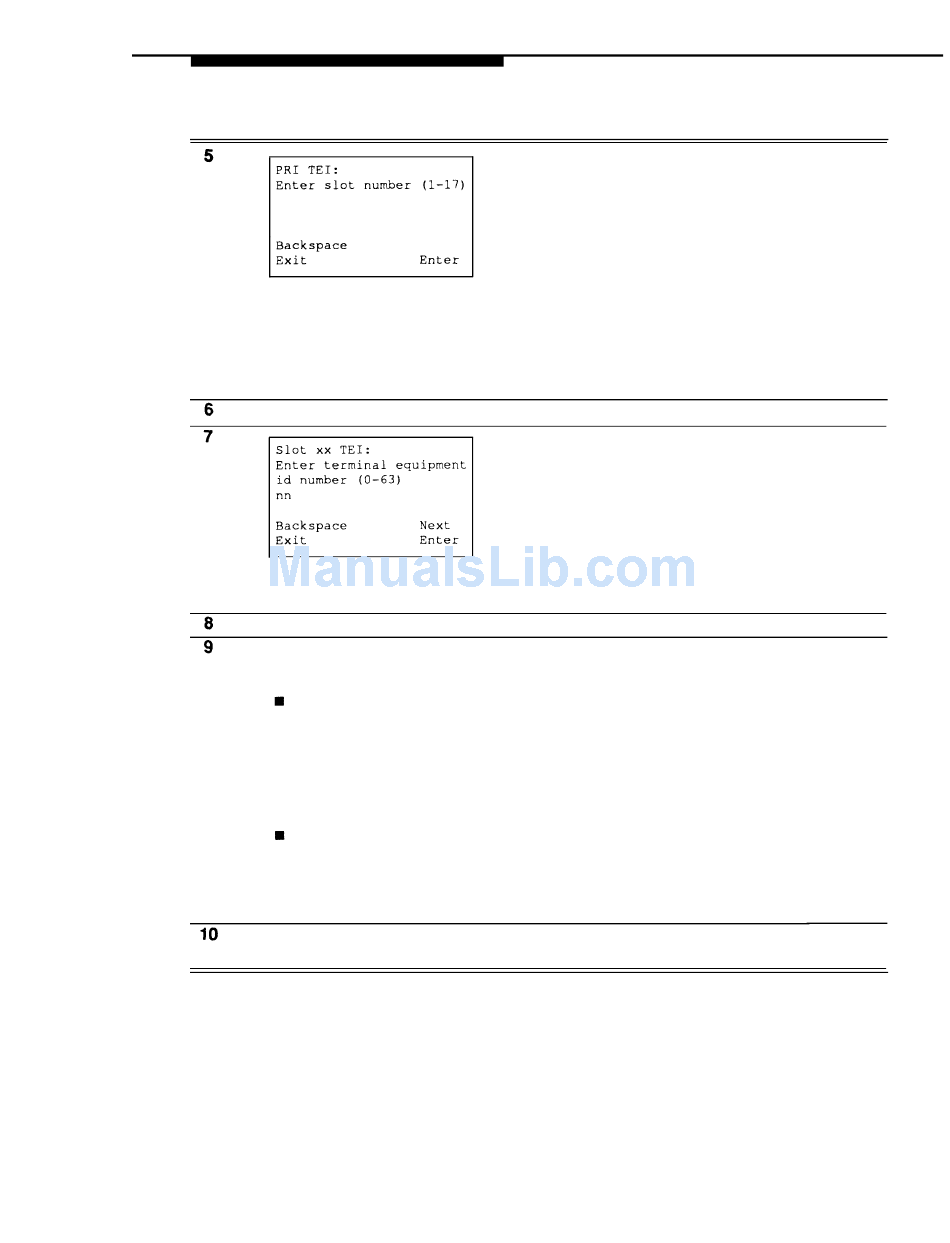

Specify the slot number that
contains the 100D module (if
you are programming a
sequence, enter the lowest
number).
Save your entry.
xx = number entered in Step 5
nn = current TEl number
Erase current setting.
Enter new ID number.
To save your entry and assign
id to another slot:
If next slot number is
sequential
Your previous entry is saved,
and next s/et number appears
on line 1 of the screen in Step
7.
If next slot number
is not sequential
To save your entry when all
entries are complete
To return to System
Programming menu
On the console
Dial [nn].
Select Enter.
Press Drop,
Dial [nn].
Select Next.
Repeat Steps 7 and 8.
Select Enter
Repeat Steps 4-8
Select Enter
Select Exit three
times.
Terminal Equipment Identifier
On the PC
Type [nn].
[F10]
Press
Type [nn].
[F9]
Press
Repeat Steps 7 and 8.
[F10]
Press
Repeat Steps 4-8
[F10]
Press
[F5]
Press
three times.
3-209
