Master Controller; Figure 39. Master Gptmn And Slave Gptmm/Mctmm Connection; Figure 40. Mto Selection - Holtek HT32F52220 User Manual

32-Bit Arm ® Cortex ® -M0+ MCU
HT32F52220/HT32F52230

Master Controller

The GPTMs and MCTMs can be linked together internally for timer synchronization or chaining.
When one GPTM is configured to be in the Master Mode, the GPTM Master Controller will
generate a Master Trigger Output (MTO) signal which includes a reset, a start, a stop signal or
a clock source which is selected by the MMSEL field in the MDCFR register to trigger or drive
another GPTM or MCTM, if exists, which is configured in the Slave Mode.

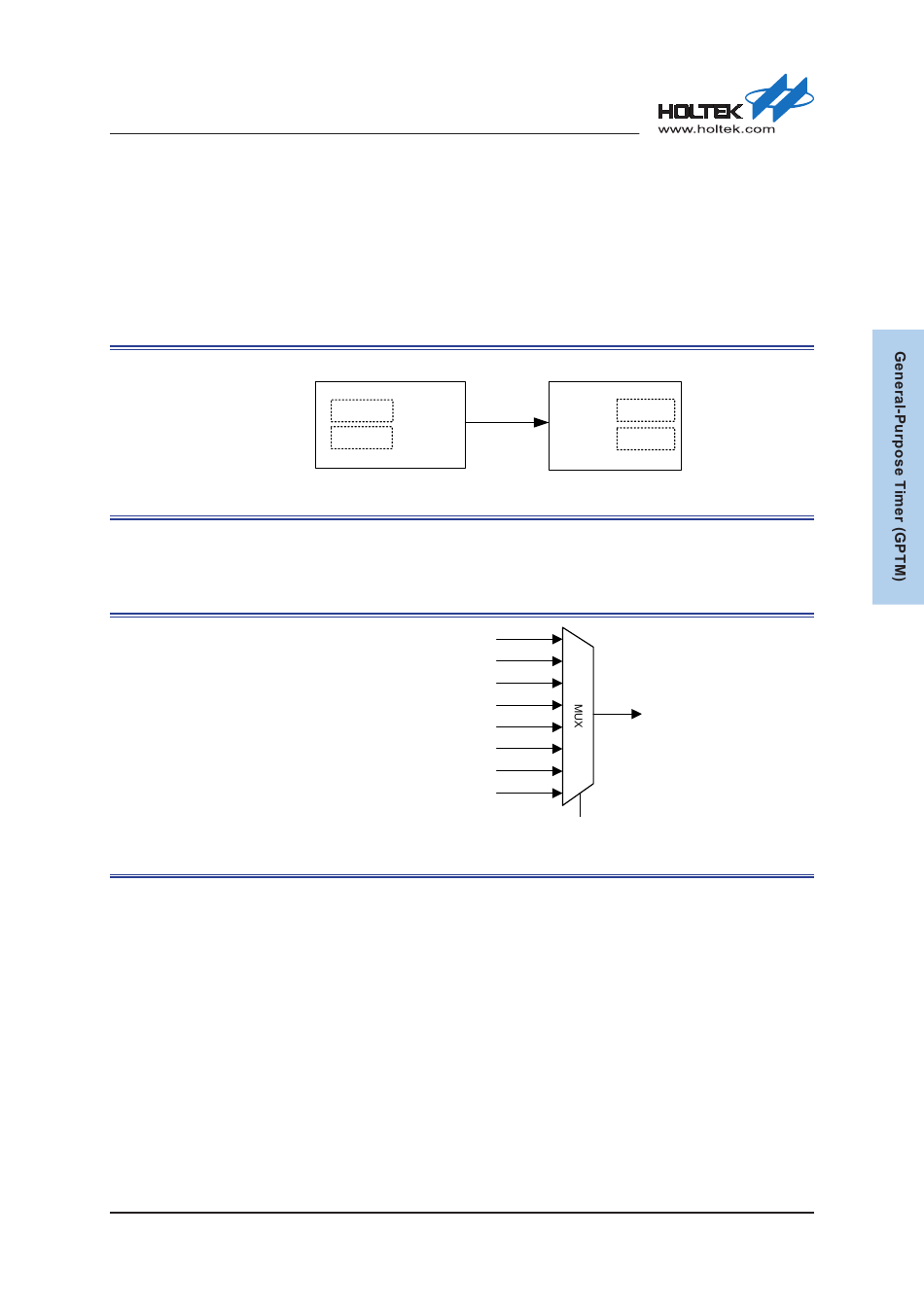

Figure 39. Master GPTMn and Slave GPTMm/MCTMm Connection

The Master Mode Selection bits, MMSEL, in the MDCFR register are used to select the MTO
source for synchronizing another slave GPTM or MCTM if exists.

Figure 40. MTO Selection

For example, setting the MMSEL field to 0x5 is to select the CH1OREF signal as the MTO signal
to synchronize another slave GPTM or MCTM. For a more detailed description, refer to the related
MMSEL field definitions in the MDCFR register.
