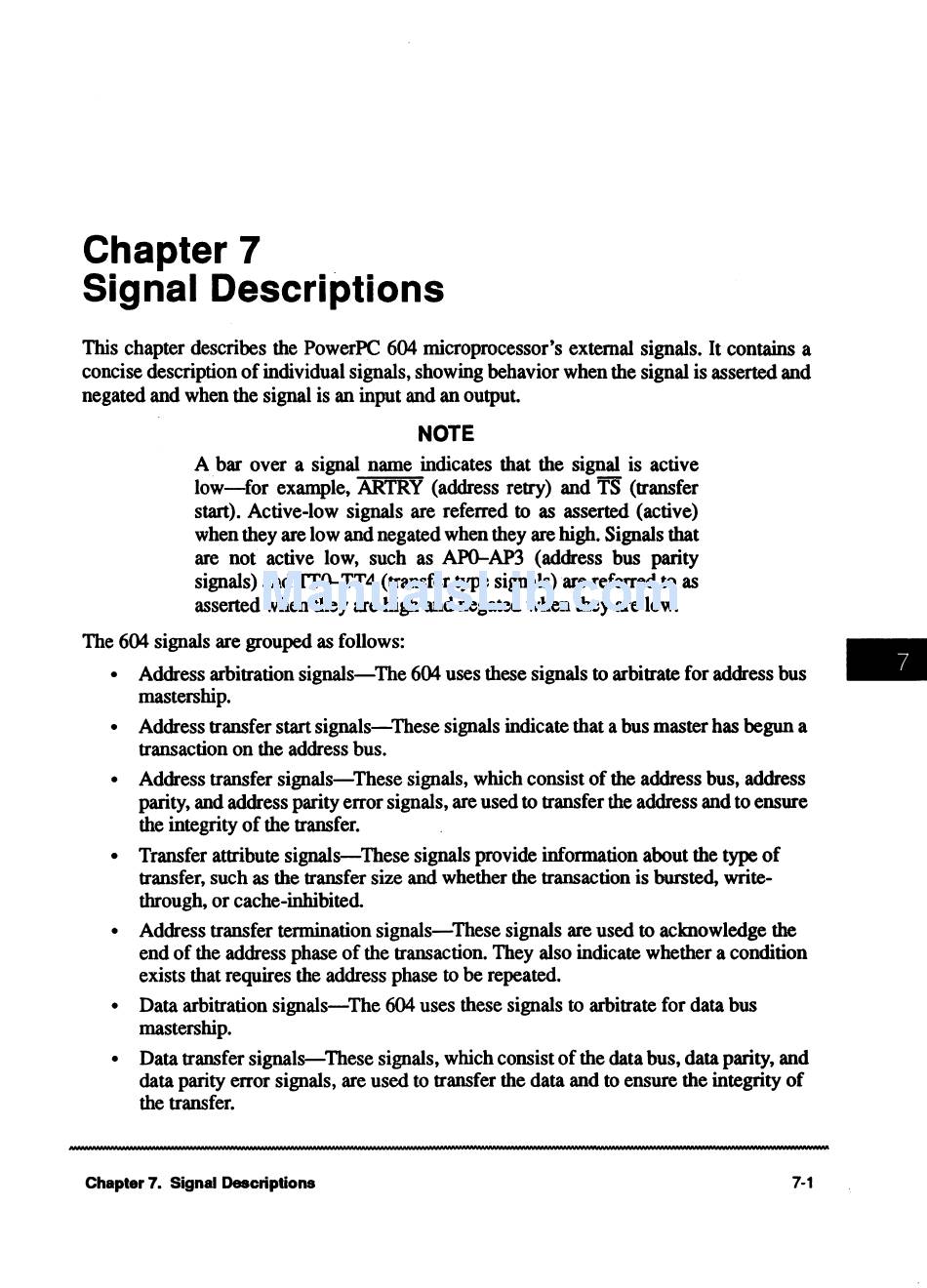

Chapter 7
Signal Descriptions
This chapter describes the PowerPC 604 microprocessor's external signals. It contains a
concise description of individual signals, showing behavior when the signal is asserted and
negated and when the signal is an input and an output.
NOTE
A bar over a signal name indicates that the signal is active
low-for example, ARTRY (address retry) and TS (transfer
start). Active-low signals are referred
to
as asserted (active)
when they are low and negated when they are high. Signals that
are not active low, such as APO-AP3 (address bus parity
signals) and 1TO-TT4 (transfer type signals) are referred to as
asserted when they are high and negated when they are low.
The 604 signals are grouped as follows:
• Address arbitration signals-The 604 uses these signals to arbitrate for address bus
mastership.
• Address transfer start signals-These signals indicate that a bus master has begun a
transaction on the address bus.
• Address transfer signals-These signals, which consist of the address bus, address
parity, and address parity error signals, are used
to
transfer the address and to ensure
the integrity of the transfer.
• Transfer attribute signals-These signals provide information about the type of
transfer, such as the transfer size and whether the transaction is bursted, write-
through, or cache-inhibited
• Address transfer termination signals-These signals are used
to
acknowledge the
end of the address phase of the transaction. They also indicate whether a condition
exists that requires the address phase to be repeated.
•
Data arbitration signals-The 604 uses these signals to arbitrate for data bus
mastership.
• Data transfer signals-These signals, which consist of the data bus, data parity, and
data parity error signals, are used to transfer the data and to ensure the integrity of
the transfer.
Chapter 7. Signal Descriptions 7·1
