ServeRAID M5000 Series Battery
Kit
Quick Install Guide
Attention: Go to
http://www-947.ibm.com/support/entry/
portal/docdisplay?Indocid=MIGR-5073015
download the latest firmware for correct
operation.
Thank you for purchasing the ServeRAID M5000 Series
Battery Kit. The ServeRAID M5000 Series Battery Kit
protects the integrity of the cached data on your SAS/SATA
controller by providing backup power if there is a complete
AC power failure or a brief power outage.
You can mount the ServeRAID M5000 Series Battery Kit
directly or remotely (using a daughtercard and a 12-inch
cable) to the following ServeRAID SAS/SATA controllers:
– ServeRAID-M5014 SAS/SATA controller
– ServeRAID-M5015 SAS/SATA controller
– ServeRAID-M5025 SAS/SATA controller
To install the battery kit directly, follow the steps in
"INSTALLING THE ServeRAID M5000 SERIES BATTERY
KIT
DIRECTLY".
To mount the battery kit remotely, follow the steps in
"CONNECTING THE ServeRAID M5000 SERIES BATTERY
KIT
REMOTELY".
Note:
Refer to the ServeRAID controller remote-battery
installation instructions document on the CD that
comes with this battery kit for information on
when and how to mount the battery kit remotely.
Take a few minutes to read this Quick Install Guide. If you
need more information about any topic covered in this guide,
refer to the documents on your ServeRAID M Support CD.
O V E R V I E W O F T H E S e r v e R A I D
M 5 0 0 0 B A T T E R Y K I T
The ServeRAID M5000 Series Battery Kit, an intelligent BBU
(iBBU), has built-in functionality to charge the battery pack
automatically and to communicate battery status information
such as voltage, temperature, and current, to the host
computer system.
For more information about this battery kit, refer to the
ServeRAID M5014/M5015 SAS/SATA Controllers User's
Guide on the ServeRAID M Support CD.

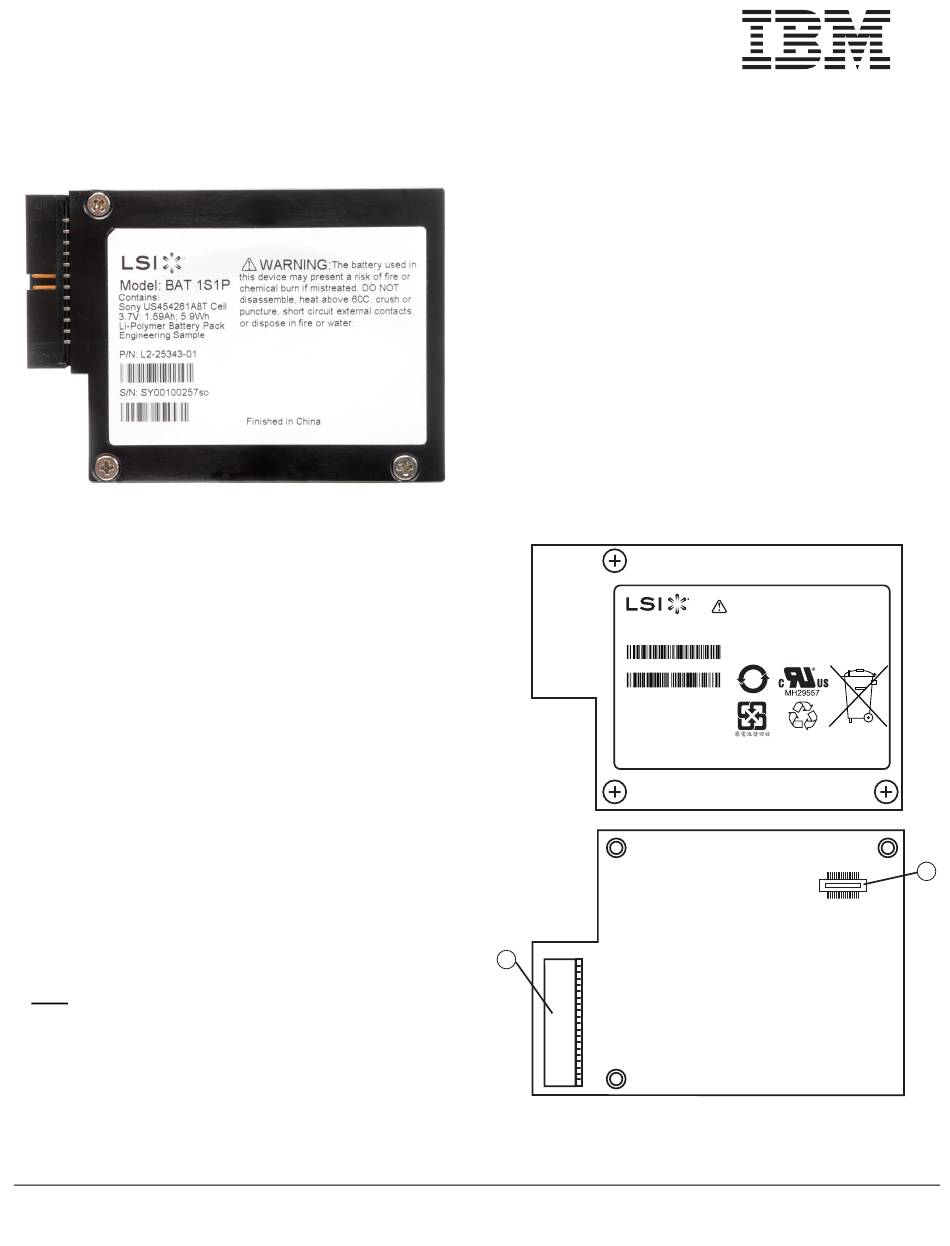

The following figure displays the top view and the rear view
of the battery kit (the "top" side is the side you can see after
you install the battery kit on the controller). Note that this unit
combines a battery pack with a daughtercard.
Figure 1 ServeRAID M5000 Series Battery Kit
and
Section,
Section,
J2
1
1 - J2 remote connector
2 - J1 board-to-board connector
WARNING:
The battery used in
this device may present a risk of fire or
Model: BAT 1S1P
chemical burn if mistreated. DO NOT
dissemble, heat above 60C, crush or
BBU P/N: L4-25343-04
puncture, short circuit external contacts,
or dispose in fire or water.
BBU S/N:SY02700225SO
5
Contains:
Sony US454261A8T Cell
Rechargeable Li-Polymer
Battery Pack
Rating:
Li-ion
3.7V; 1.59Ah; 5.9Wh
Finished in China
®
J1
2
85065-00
