Drive - Develop ineo+ 6500 Service Manual

Theory of Operation Ver1.0 Sep.2006

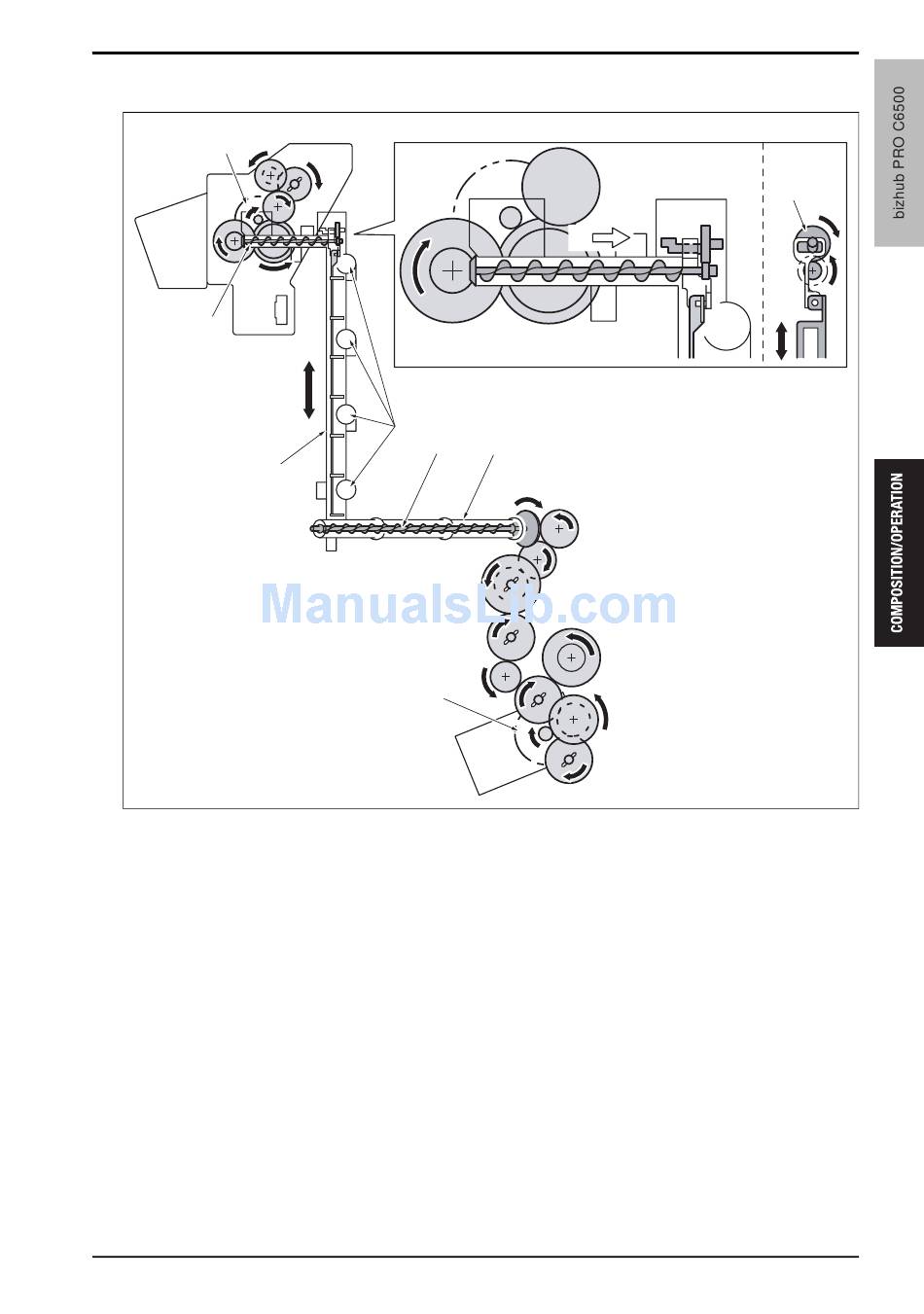

14.2 Drive

[7]
[6]
[5]
[1] Drum waste toner inlet
[2] Horizontal conveyance screw
[3] Horizontal conveyance pipe
[4] Paper feed motor (M41)
[1]
[2] [3]
[4]
[5] Vertical conveyance pipe
[6] Belt collection screw
[7] Transfer belt motor (M18)
[8] Belt collection cam
14. TONER COLLECTION SECTION
A
[8]
