Summary of Contents for Develop ineo+ 3110

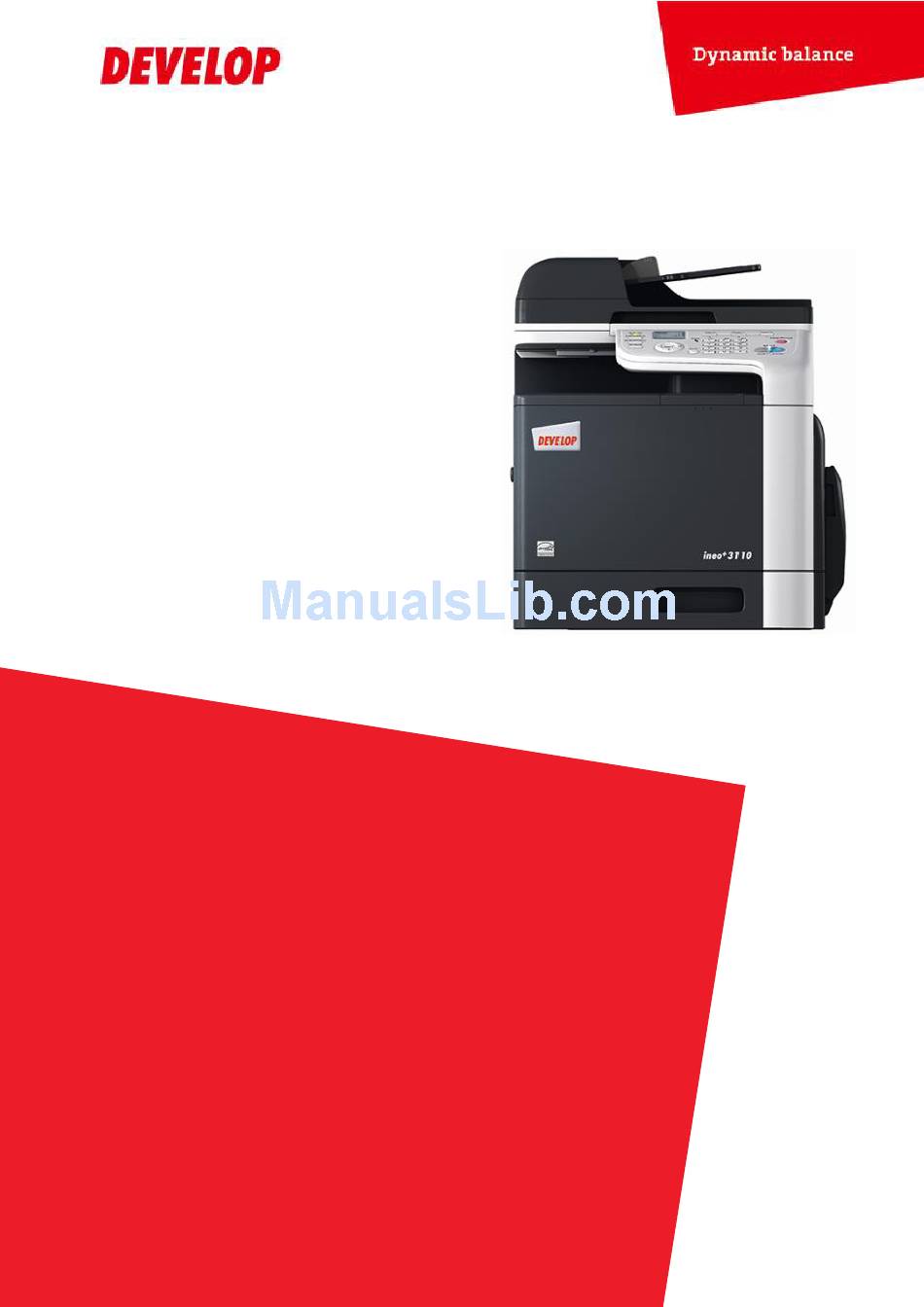

- Page 1 Product Guide 54 / 754 Status: 11.2012 Product Guide Version: 0 ineo 3110 17.07.14...
-
Page 2: Product Guide Ineo
Product Guide ineo 3110 Since changes in technical features may occur, please note that the technical data provided in this Product Guide was issued in July 2014. We reserve the right to make changes to the technical design. Specifications refer to maximum performance under standard conditions. -
Page 3: Table Of Contents
Product Guide ineo 3110 Table of contents Product Basics.................. 4 System Dimensions ................5 System Configuration ............... 6 System Specifications ..............7 Copier Specifications ..............10 Printer Specifications ..............12 Scanner Specifications ..............14 Fax Specifications (optional) ............15 Consumables.................. 16 Article numbers and compatibility ........... -
Page 4: Product Basics

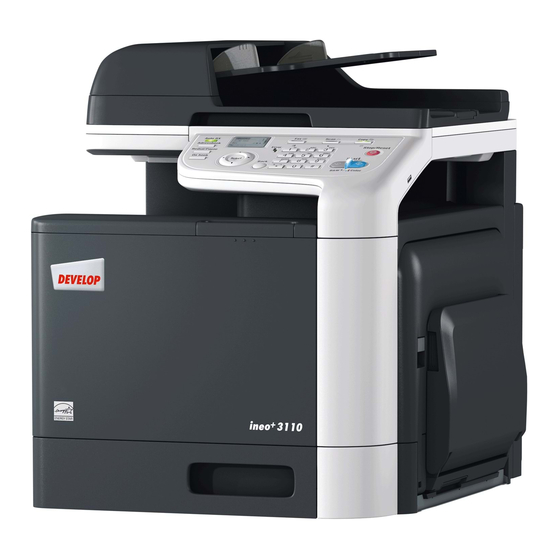

Product Basics MODEL NAME ineo+ 3110 MODEL DEVELOPMENT CODE Citrine-S AIO SUCCESSOR MODEL FOR ineo+ 25 DEVELOP ineo+ 3110 ALSO AVAILABLE AS Olivetti d-Color 3100 ESTIMATED SALES START 08/2014 INFOSOURCE SEGMENT Colour A4 segment IV (30-49 ppm) RECOMMENDED MONTHLY PAGE... -
Page 5: System Dimensions
Product Guide ineo 3110 System Dimensions ineo+ 3110 standard configuration (main body): ineo+ 3110 plus optional cassette... -
Page 6: System Configuration
Product Guide ineo 3110 System Configuration ineo+ 3110:... -
Page 7: System Specifications
Product Guide ineo 3110 System Specifications Document Feeder STANDARD Original size A4 Original weights 50 – 110 gsm Capacity 50 originals Feeding speed 30/30 ipm Standard paper feed tray STANDARD Capacity 1 x 250 sheets (80 gsm) Width: 92 - 216 mm Paper formats Length: 148 - 297 mm Paper weights 60 - 210 gsm... - Page 8 Product Guide ineo 3110 SCD-25 Simple Copier Desk OPTION Dimensions (W x D x H) 520 x 419.1 x 505 Weight 13.2 kg To place the machine in a correct operation height and to store paper Function and/or consumables Also compatible with ineo+ 3100P Remark Stabilizer must be mounted.
- Page 9 Product Guide ineo 3110 LK-106 i-Option license OPTION Functionality Additional barcode fonts Remark HD-P06 needed LK-107 i-Option license OPTION Functionality Additional barcode fonts Remark HD-P06 needed LK-108 i-Option license OPTION Functionality Additional barcode fonts Remark HD-P06 needed LK-111 i-Option license OPTION Functionality ThinPrint connectivity SX-BR-4600 Wireless LAN...
-
Page 10: Copier Specifications
Product Guide ineo 3110 Copier Specifications LCD: 128x64 Bitmap Buttons: Start key (Color), Start key (B/W), Stop / Reset key, Ten key (0 - 9, *, #), Menu Select key, Dark / Left key, Light / Right key, Up key, Down key, Back key, Copy mode key / Power, Scan mode key / Sleep, OPERATION PANEL Fax mode key / Access, Redial/Pause key, On hook key, Address-book... - Page 11 Product Guide ineo 3110 MACHINE DIMENSIONS (W x D x H) 447 x 544 x 500 mm (main body) Device only: 29.5 kg MACHINE WEIGHT Device including supplies: 34.3 kg Device including package: 43.3 kg PAPER OUTPUT CAPACITY 150 sheets (plain paper) Std.: 350 sheets (2-way) PAPER INPUT CAPACITY Max.: 850 sheets (3-way, optional)
-
Page 12: Printer Specifications
Product Guide ineo 3110 Printer Specifications 1.066 GHz (MV78230) PRINT SPEED A4 simplex col/bw (plain paper) 31/31 ppm A4 simplex col/bw (thick paper) 15.5/15.5 ppm A4 duplex col/bw (plain paper) 31/31 ppm A4 duplex col/bw (thick paper) 15.5/15.5 ppm FIRST COPY Colour (sec. - Page 13 Product Guide ineo 3110 HOST INTERFACES 10Base-T/100Base-TX/1000 Base-T yes (std.) Ethernet USB 2.0 yes (std.) USB host yes (std., for USB direct printing) NETWORK PROTOCOLS TCP/IP (IPv4, IPv6) SNMP HTTP HTTPS SUPPORTED OS Windows Vista (32/64) Windows 7 (32/64) Windows 8 (32/64) Windows Server 2003 (32/64) Windows Server 2003 R2 (32/64) Windows Server 2008 (32/64)
-
Page 14: Scanner Specifications
Product Guide ineo 3110 Scanner Specifications SCAN FUNCTIONS Scan-to-eMail Scan-to-SMB Scan-to-FTP Scan-to-HDD Scan-to-USB Scan-to-DPWS Network TWAIN scan SCAN SPEED Up to 30 ipm (via RADF) COLOUR SCANNING CAPABILITY MAX. SCAN ORIGINAL SIZE Flatbed Max. A4 Max. 215.9 x 500 mm 200x200 dpi;... -
Page 15: Fax Specifications (Optional)
Product Guide ineo 3110 Fax Specifications (optional) Communication Super G3 Public switch telephone network, private branch exchange, fax Compatible lines communication line 600 x 600 dpi (ultra fine) Line density 400 x 400 dpi (super fine) 200 x 200 dpi (fine) 2.4 –... -
Page 16: Consumables
Product Guide ineo 3110 Consumables TONER BLACK Name TNP51K Concept Cartridge system Yield R&D 5,000 (3 pages/job) Standard Field Value 4,700 (2 pages/job) Units per box 1 cartridge TONER COLOUR (C/M/Y) Name TNP51C/M/Y Concept Cartridge system Yield 5,000 (3 pages/job) Standard Field Value 4,700 (2 pages/job) Units per box... -
Page 17: Article Numbers And Compatibility
Product Guide ineo 3110 Article numbers and compatibility Machine Article number Compatibility ineo+ 3110 A6DT121 Accessories Article number Compatibility PF-P14 Lower paper feeder A73HWY1 ineo+ 3100P/3110 SCD-25 Simple copy desk 9960880000 ineo+ 25/3100P/3110 HD-P06 Hard disk kit A734WY1 ineo+ 3100P/3110... - Page 18 Product Guide ineo 3110 Consumables Article number Compatibility TNP51C Toner C A0X54D5 ineo+ 3110 TNP51M Toner M A0X53D5 ineo+ 3110 TNP51Y Toner Y A0X52D5 ineo+ 3110 TNP51K Toner K A0X51D5 ineo+ 3110 IUP23C Imaging Unit C A7331KJ ineo+ 3100P/3110 IUP23M Imaging Unit M...
-
Page 19: Documentation
Product Guide ineo 3110 Documentation Legal Required Information (LRI) and Face Sheet Legal Required Information (LRI) Face Sheet 4821311000 9969311000 4821311001 9969311001 4821311002 9969311002 4821311003 9969311003 4821311004 9969311004 4821311005 9969311005 4821311006 9969311006 4821311007 9969311007 4821311009 9969311009 4821311010 9969311010 4821311011 9969311011 4821311013 9969311013 4821311015... - Page 20 Product Guide ineo 3110 Driver and User Documentation (Quick Guides) English German French Spanish Italian Portuguese Dutch Danish Norwegian On DVD, packed with printed LRI to machine. Greek Turkish Czech Hungarian Polish Romanian Russian Slovakian...
-
Page 21: Recommended Media
Product Guide ineo 3110 Recommended Media Remark Article number PAPER Konica Minolta Color + A4, 90 gsm 9966131000 (Konica Minolta branded) Konica Minolta Original A4, 80 gsm 9960612000 (Konica Minolta branded) Color Copy Mondi, A4, 100/160/200 gsm Color Copy Style Mondi, A4, 100/160/200 gsm Trend White 80 (Reycling paper) Steinbeis, A4, 80 gsm... -
Page 22: Appendix
Product Guide ineo 3110 Appendix Paper weights and sizes to be used Source Capacity (80 gsm) Size Weight (gsm) A4 – A6 60 – 210 Tray 1 250 sheets A4 – A6 60 – 210 Bypass tray 100 sheets Width: 92 x 216 mm Length: 148 x 356 mm 60 –... - Page 23 Product Guide ineo 3110 Applications Device Manager Account Manager Yes (with optional HDD) Authenticaton Manager Yes (with optional HDD) My Print Manager Yes (with optional HDD) Direct Print Yes (with optional HDD) Data Administrator ineoPRINT App Print Status Notifer ineo RC Yes (via DCA) Download Manager Driver Packaging Utility...
- Page 24 Product Guide ineo 3110 HDD enabled function Security functions: Device functionality: ISO 15408 EAL3 Electronic Sorting IP filtering and port blocking Job deletion (Delet job by other user) SSL2 Trial copy/trial print SSL3 and TSL 1.0 network communication Continuous scanning setting (Scan one job ...
- Page 25 Product Guide ineo 3110 What is delivered with the machine? Packed at factory Added in Europe Toner CMYK yes (full capacity) Imaging units CMYK yes (full capacity) Waste toner bottle Legal Required Information (LRI) yes (printed) DVD with drivers & user guides Face sheets Telephone line cable USB cable...
- Page 26 Product Guide ineo 3110...
- Page 27 Product Guide ineo 3110...
- Page 28 July 2014. We reserve the right to make changes to the technical design. Specifications refer to maximum performance under standard conditions. No guarantee is provided in relation to any of the data supplied. Your DEVELOP Marketing...
