Develop ineo+ 6500 Service Manual page 514

Theory of Operation Ver1.0 Sep.2006
B. Punch control (PK-512)
The FNS transfer motor (M1) is driven by the main body start signal.
In the punching mode, the motor M1 stops temporarily after the FNS entrance sensor (PS4) detects the rear edge of paper.
At the same time, the punch motor (M301) [3] rotates in the direction according to the number of punched
holes. Number of punched holes of PK-512 is switched between 2 to 4 and 2 to 3 holes depending on the
country. The motor M301 drives the slide link in the main scanning direction through the eccentric cam. As a
result, the projection of the switching cam is pushed in the slide link moving direction and the switching cam is
rotated around its axis. And then the punching blade [7] lowers to punch a hole. The projection of the punch
blade is fitted into the groove of the switching cam.
Moving distance of the slide link [5] is controlled by detecting the eccentric cam actuator [4] with the punch
home sensor (PS301) [1]. When the actuator rotates 180 degrees, first punching is completed. In the second
punching, M301 is reversed. When the actuator reverses 180 degrees, punching is completed. Forward and
reverse rotations are repeated alternately.
The rotating speed of M301 is controlled by detecting the rotation of the punch encoder plate [6] fixed to the
axis of M301 with the punch encoder sensor (PS306) [2].
Then, M301 reverses and the punch home sensor (PS301) [1] returns to ON and the M301 stops finally.
When a specified time elapsed after M1 stops temporarily, M1 resumes rotating and paper is transferred.

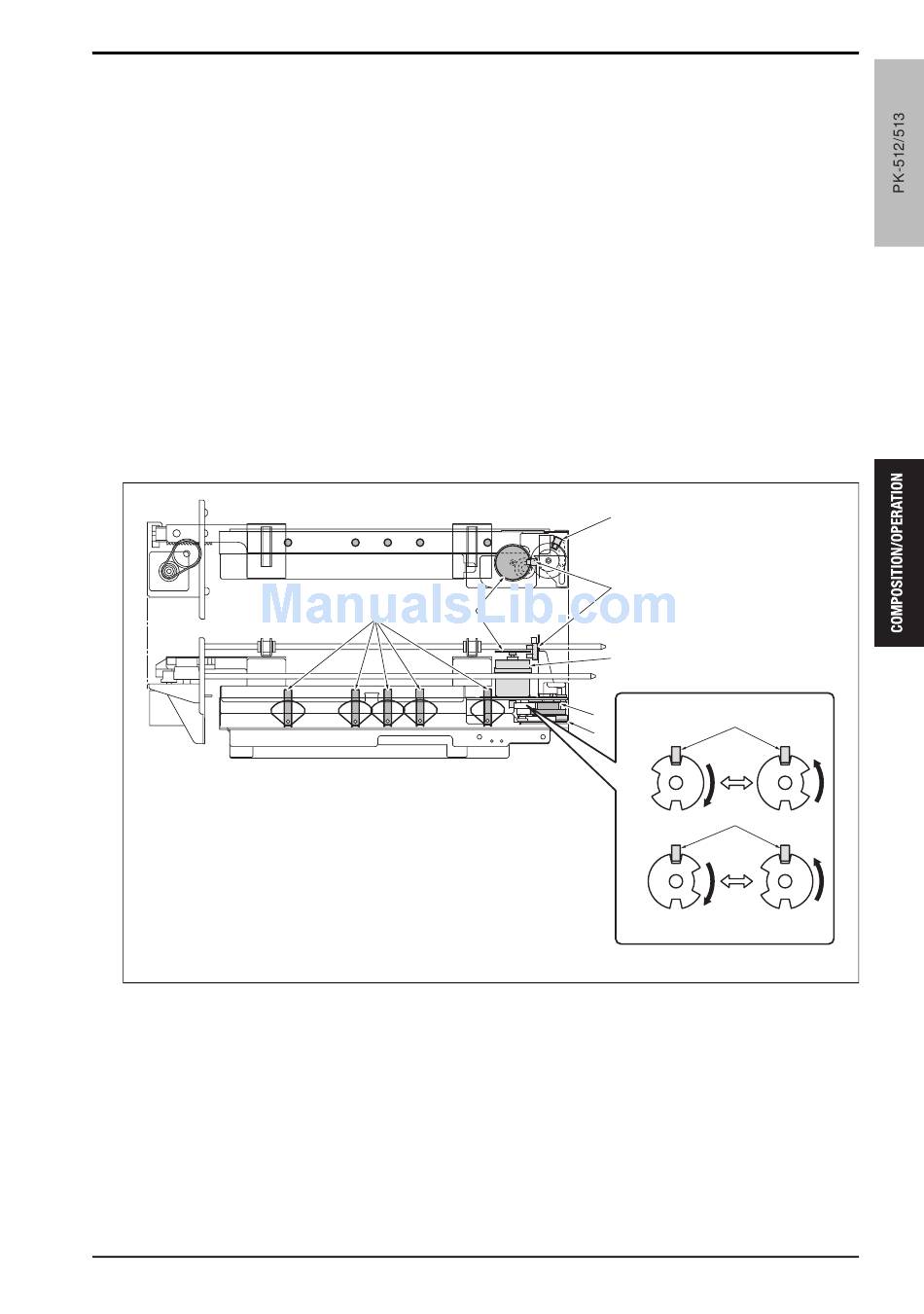

[1] Punch home sensor (PS301)
[2] Punch encoder sensor (PS306)
[3] Punch motor (M301)
[4] Actuator
[5] Slide link
[6] Punch encoder plate
[7] [6]
[7] Punching blade
[8] Operation of 3-hole punching in the 2 to 3 hole
mode and 4-hole punching in the 2 to 4 hole mode
[9] Operation of 2-hole punching in the 2 to 3 hole
mode and 2-hole punching in the 2 to 4 hole mode
4. PUNCH SECTION
[1]
[2]
[3]
[4]
[1]
[5]
[8]
[1]
[9]
15kjt2e008na
13
