Develop ineo+ 6500 Service Manual page 612

Theory of Operation Ver2.0 Sep.2006

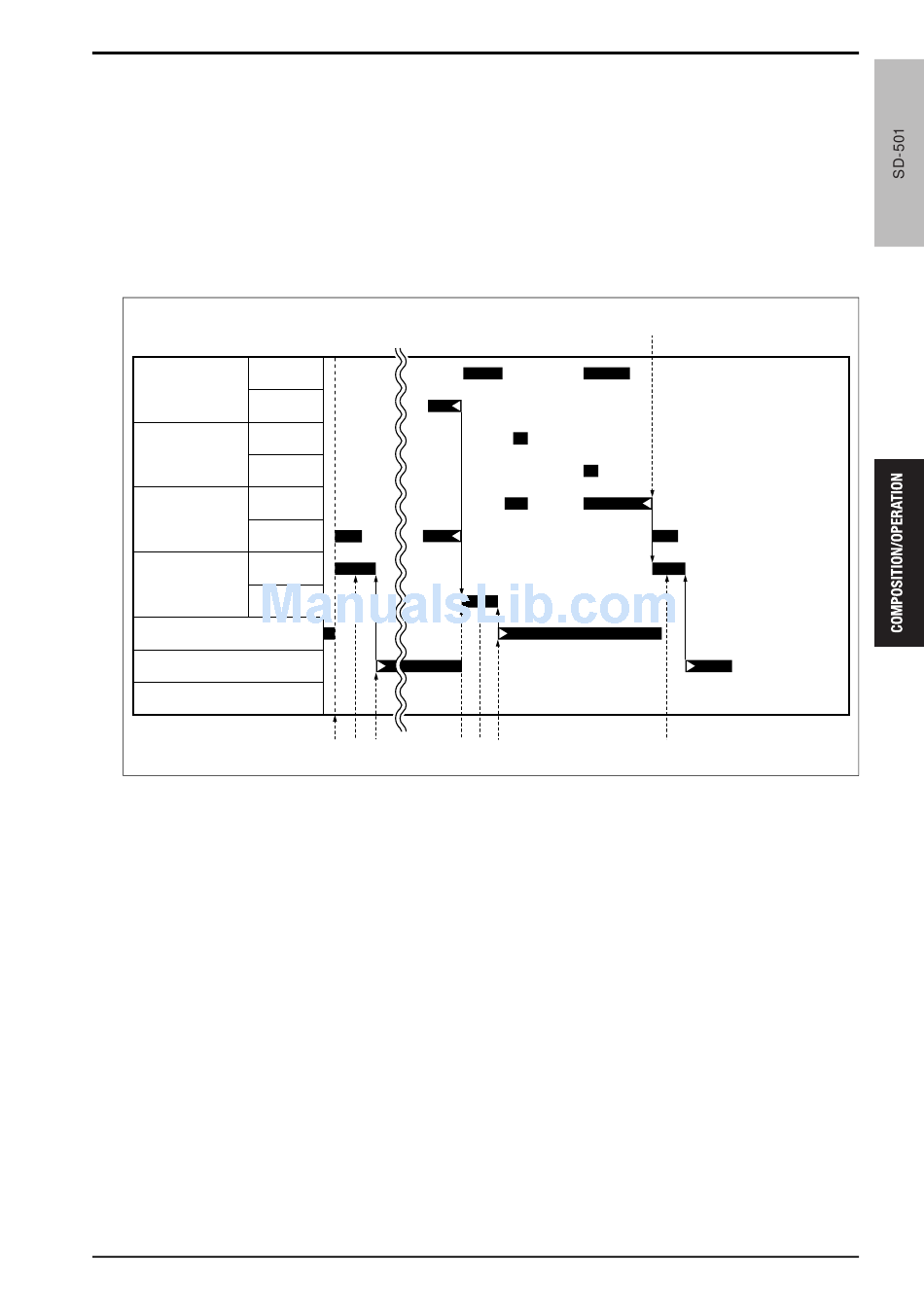

(2) No trimming mode
The bundle press stage up down motor (M24) rotates in the forward direction to move up the bundle press
stage [2] when the main body start signal [1] turns ON. M24 stops while holding the bundle press stage in slant-
ing position when the bundle press stage up down limit sensor (PS45) turns ON [3].
M24 rotates in the reverse direction to move down the bundle press stage [5] after the bundle clip releases the
paper, the bundle registration motor (M12) assists the paper conveyance operation, and the bundle press move-
ment motor (M17) conveys the paper to the paper conveyance position [4]. M24 stops when the bundle press
stage up down home sensor (PS35) turns ON [6].
M24 moves up the bundle press stage [8] for the subsequent set when M12 completes the paper exit [7].
Forward
Bundle press
movement
Reverse
motor (M17)
Forward
Bundle press
motor (M23)
Reverse
Bundle registra-
Forward
tion motor
(M12)
Reverse
Bundle press
Forward
stage up down
motor (M24)
Reverse
Bundl e press stage up down home sensor (PS35)
Bundl e press stage up down l i m i t sensor (PS45)
Bundle registration plate home sensor (PS16)
[1] Main body start signal
[2] Bundle press stage moved up
[3] Stopped at the upper limit
[4] Paper conveyance assisting operation completed
[5] Bundle press stage moved down
*
[1] [2] [3] [4][5][6]
8. BUNDLE PROCESSING SECTION
[7]
[8]
[6] Returning to the home position
[7] Paper exit completed
[8] Bundle press stage moved up
* Only for the paper of 297 mm or more
(before folding)
