6. STACKER SECTION
6.2

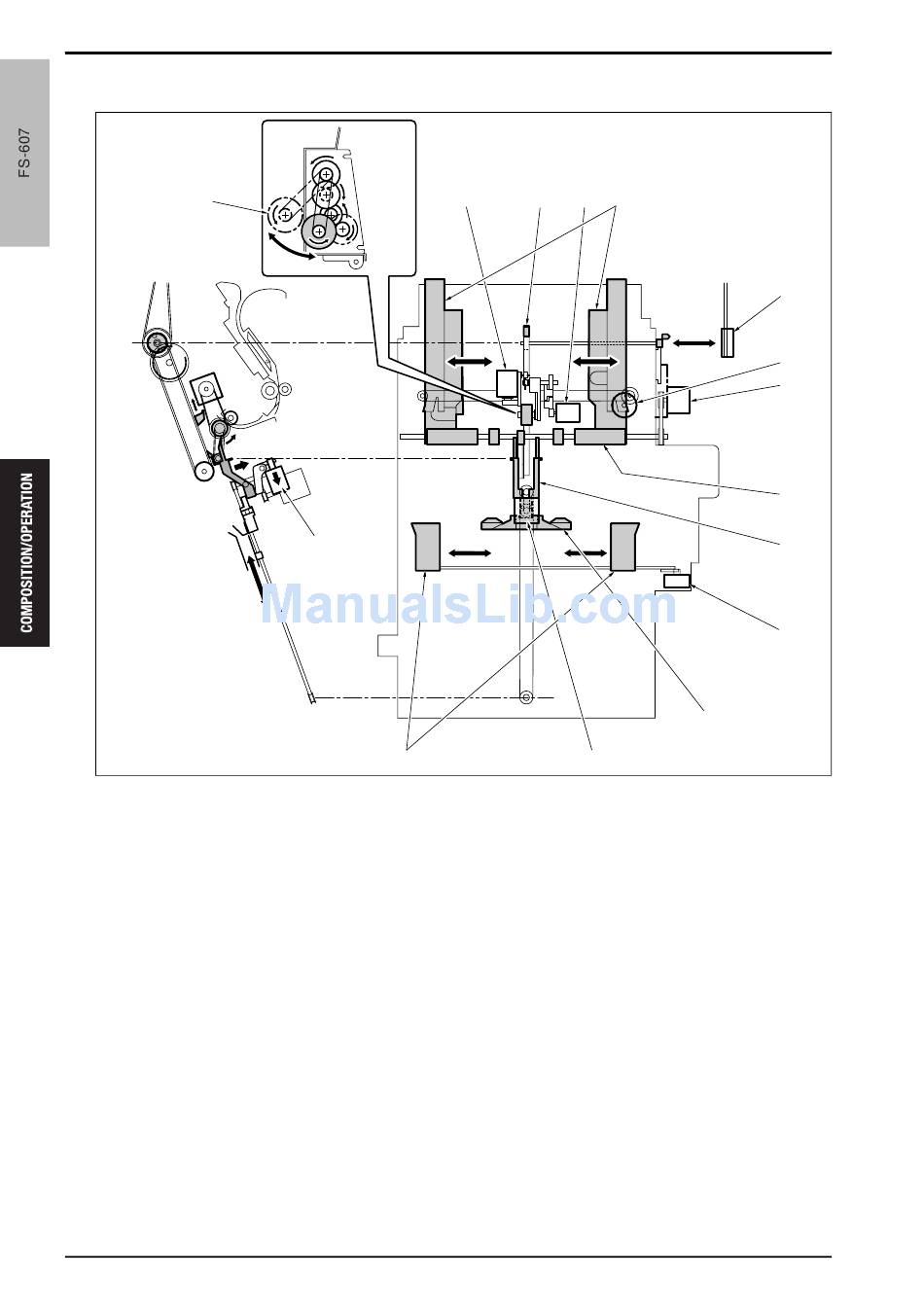

Drive

[11]
[1] Coupling (from M7)
[2] Alignment motor /Up (M5)
[3] Stacker entrance motor (M13)
[4] Stacker entrance roller
[5] Flat-stapling stopper /Fr, Flat-stapling stopper /Rr
[6] Alignment motor /Lw (M16)
[7] Saddle stitching stopper
[8] Saddle stitching stopper motor (M18)
30
[12]
[10]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
Theory of Operation Ver1.0 Sep.2006
[13] [14] [15]
[8]
[9] Alignment plate /Lw
Flat-stapling stopper release solenoid /Fr (SD8),
Flat-stapling stopper release solenoid /Rr (SD7)
Paper assist roller
Paper assist solenoid (SD51)
Paper exit arm
Paper assist motor (M51)
Alignment plate /Up
[1]
[2]
[3]
[4]
[5]
[6]
[7]
