Develop ineo+ 6500 Service Manual page 128

Theory of Operation Ver1.0 Sep.2006

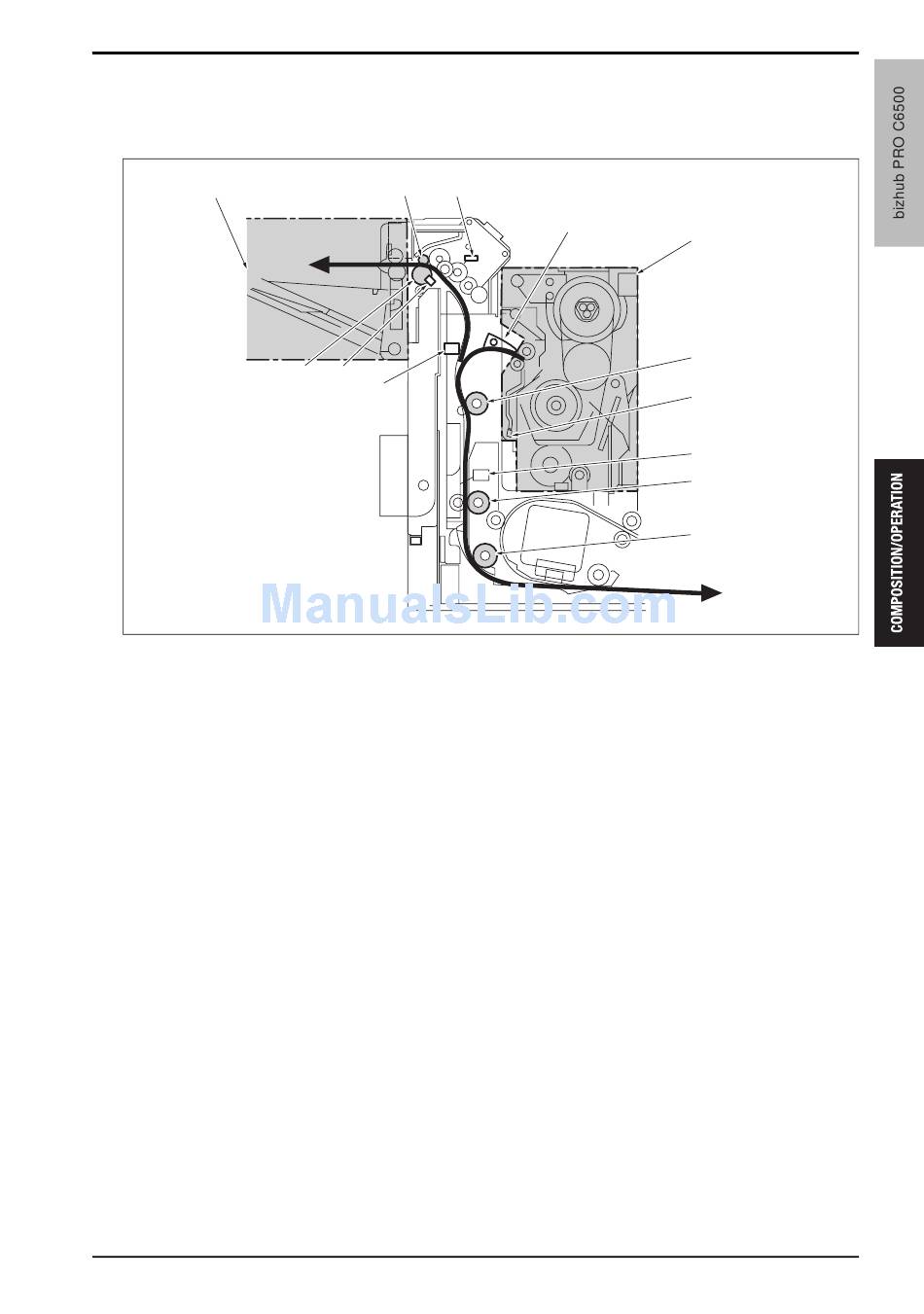

C. Reverse/paper exit
• This paper path is used to exit paper face down after printing on the backside in one-side printing or dou-
ble-side printing.
[10]
[1] Fusing section
[2] Reverse decurler roller
[3] Fusing paper exit sensor (PS17)
[4] Reverse paper exit sensor (PS19)
[5] Small size roller
[6] Reverse roller /Lw
[7] Decurler sensor (PS62)
[11] [12]
[9] [8]
[7]
20. REVERSE/PAPER EXIT SECTION
[13]
[8] Paper exit pressure sensor (PS10)
[9] Paper exit decurler roller
[10] OT-502 (Option)
[11] Paper exit roller
[12] Paper exit sensor (PS13)
[13] Reverse gate
[1]
[2]
[3]
[4]
[5]
[6]
a03ut2c074ca
97
