4. PAPER FEED SECTION

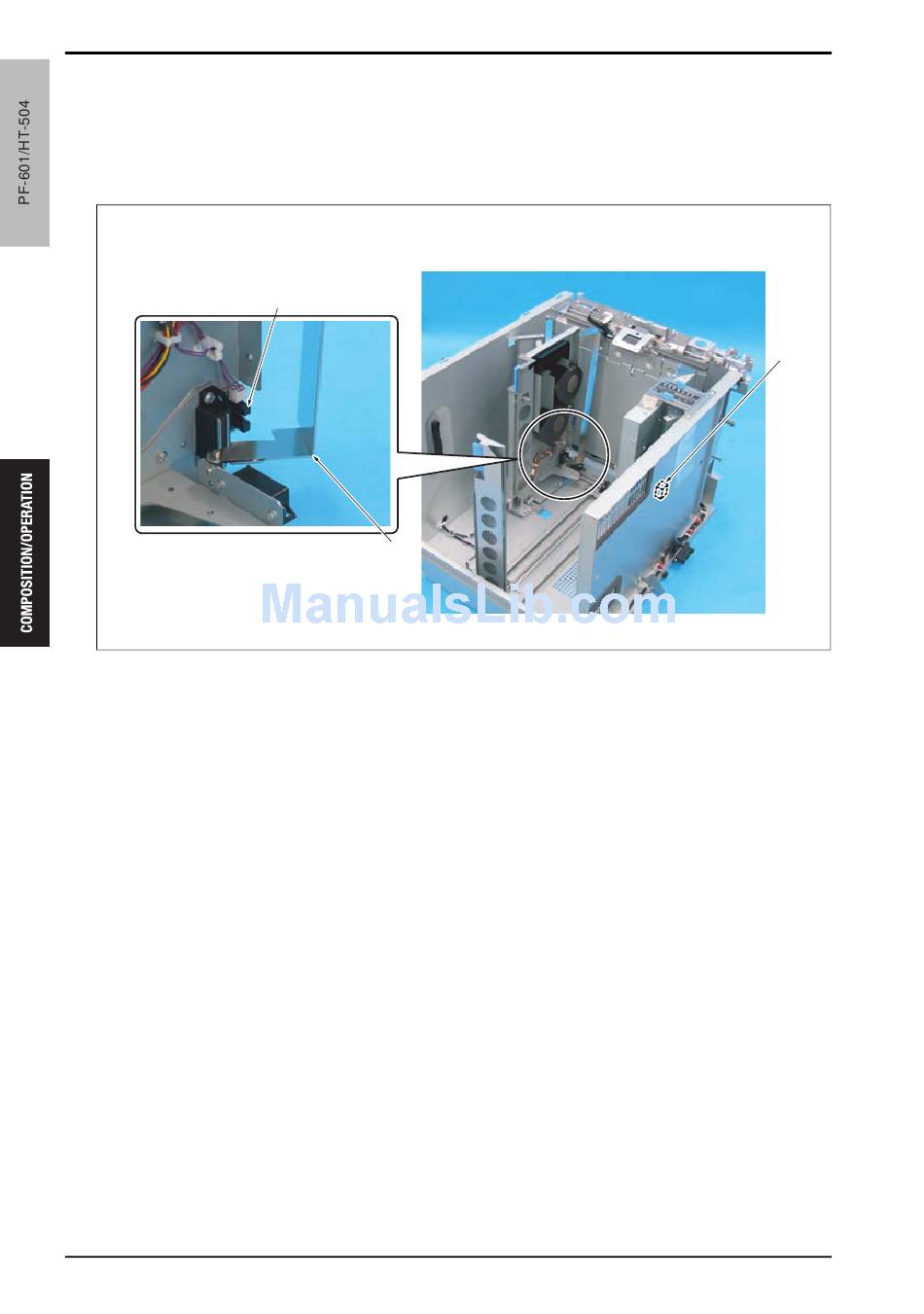

B. Assist guide detection control
• The paper size sensors /Fr1 (PS7), /Fr2 (PS15) [2], /Rr1 (PS8), and /Rr2 (PS16) [3] detect opening or clos-
ing of the auxiliary guide [1] when A6S size paper are set.
• When the auxiliary guide [1] is in use, PS15 and PS16 are turned off.
• Tray/4 does not support A6S paper.
[1] Auxiliary paper guide
[2] Paper size sensors /Fr1 (PS7), and /Fr2
(PS15)
12
[2]
[1]
Theory of Operation Ver1.0 Sep.2006
[1]
[3] Paper size sensors /Rr1 (PS8), and /Rr2
(PS16)
[3]
a03xt2c007ca
