6. STACKER SECTION
6.3.2

Alignment /Lw control

In the saddle stitching/folding/tri-folding mode, the alignment plate /Up and the alignment plate /Lw move back
and forth to align the paper in the main scan direction.
The alignment motor /Lw (M16) performs the alignment operation by rotating in the forward and reverse direc-
tion to move the alignment plate back and forth.

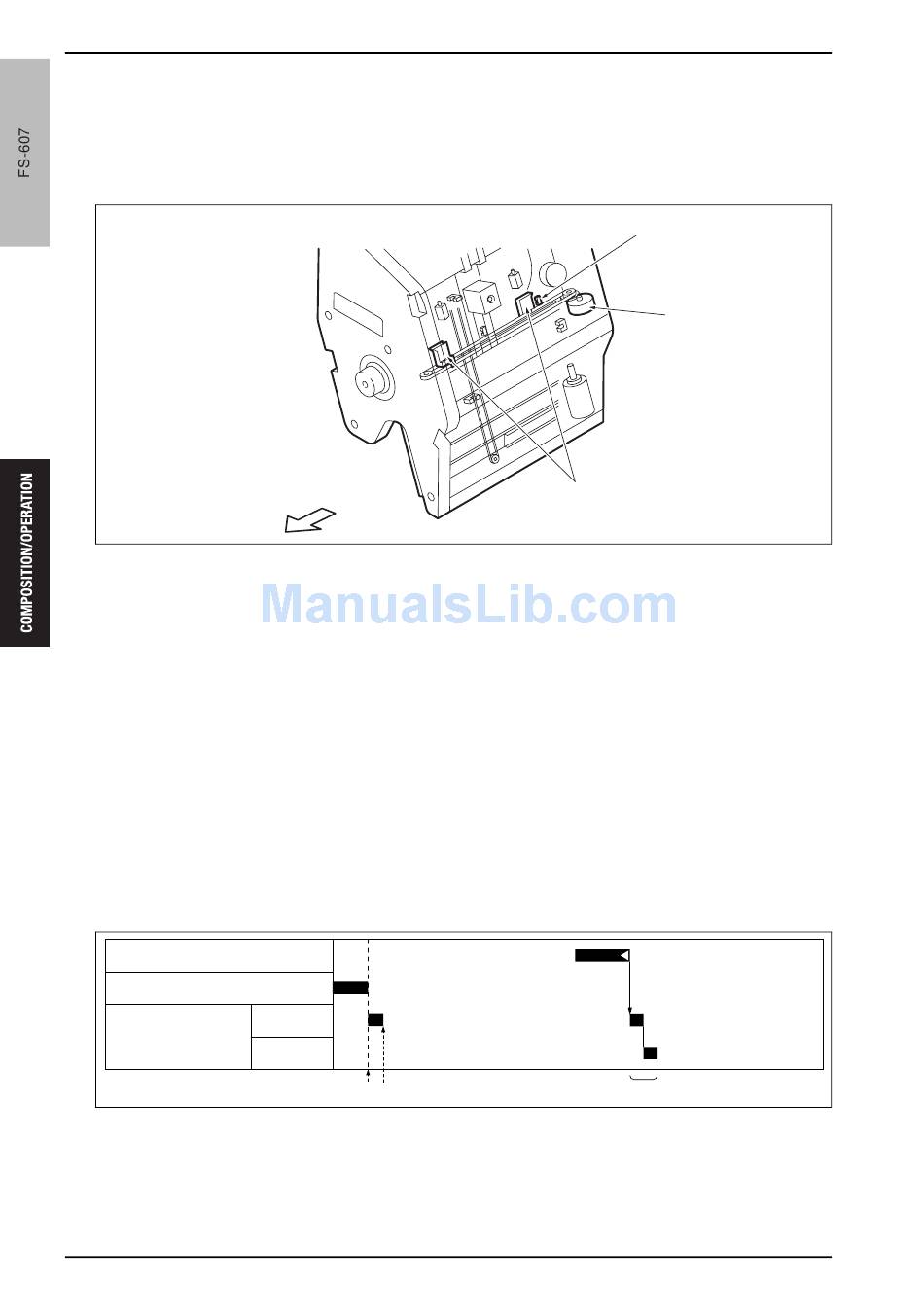

[1] Alignment plate home sensor /Lw (PS24)
[2] Alignment motor /Lw (M16)
A. Alignment /Lw operation
The alignment motor /LW (M16) rotates to open/close the alignment plate via the alignment belt.
The alignment home sensor /Lw (PS24) detects the home position of the alignment plate.
B. Alignment /Lw control
In the saddle stitching/folding/tri-folding mode, transmitting the FNS signal from the main body, the alignment
motor /Lw (M16) rotates to close the alignment plate /Lw [1], and then it stops the alignment plate at the
standby position that is a little wider than the paper width [2].
M16 performs the alignment operation by rotating in the forward and reverse direction to move the alignment
plate /Lw back and forth after a specified period of time since the stacker entrance sensor (PS5) detects the
trailing edge of the paper. The alignment operation is performed for every paper [3].
Stacker entrance sensor (PS5)
Alignment plate home sensor /Lw (PS24)
Alignment motor
/Lw (M16)
[1] Closing the alignment plate /Lw (FNS signal)
[2] Standby position of the alignment plate /Lw
32
FRONT
CLOSE
OPEN
[1][2]
Theory of Operation Ver1.0 Sep.2006
[1]
[2]
[3]
[3] Alignment plate /Lw
[3]
[3] Alignment operation for every paper
15jmf5c024na
15jmt2c003na
