5. ENTRANCE CONVEYANCE SECTION
5.3.3

Paper cooling mechanism

Paper conveyed to the LS is likely to curl up due to fusing heat.
Heat storage accumulated in paper stacked during continuous printing may cause tacking (sheets of paper
sticking hard each other by toner) when toner that has been fused is re-fused and adheres. So, fresh air is blown
on the paper from under the entrance guide plate and above the path guide of the upper surface of the paper
stack section, thus cooling down the paper to correct curling and prevent tacking.

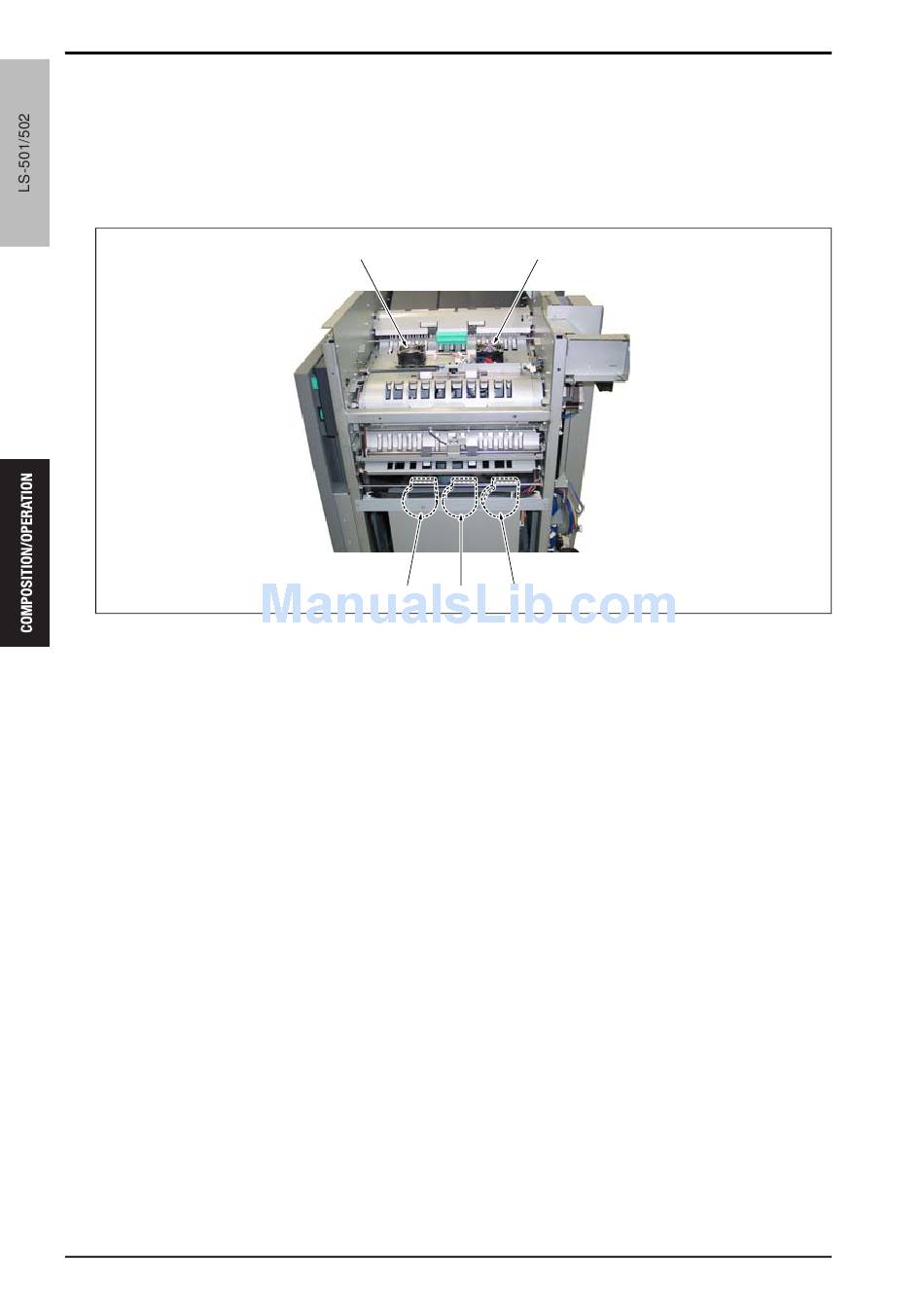

[1] Paper cooling fan motor /Rr (FM5)
[2] Paper cooling fan motor /Mi (FM3)
[3] Paper cooling fan motor /Fr (FM1)
14
[4]
[3] [2] [1]
[4]
[5]
Theory of Operation Ver2.0 Sep.2006
[5]
Paper cooling fan motor /1 (FM2)
Paper cooling fan motor /2 (FM6)
