Theory of Operation Ver1.0 Sep.2006

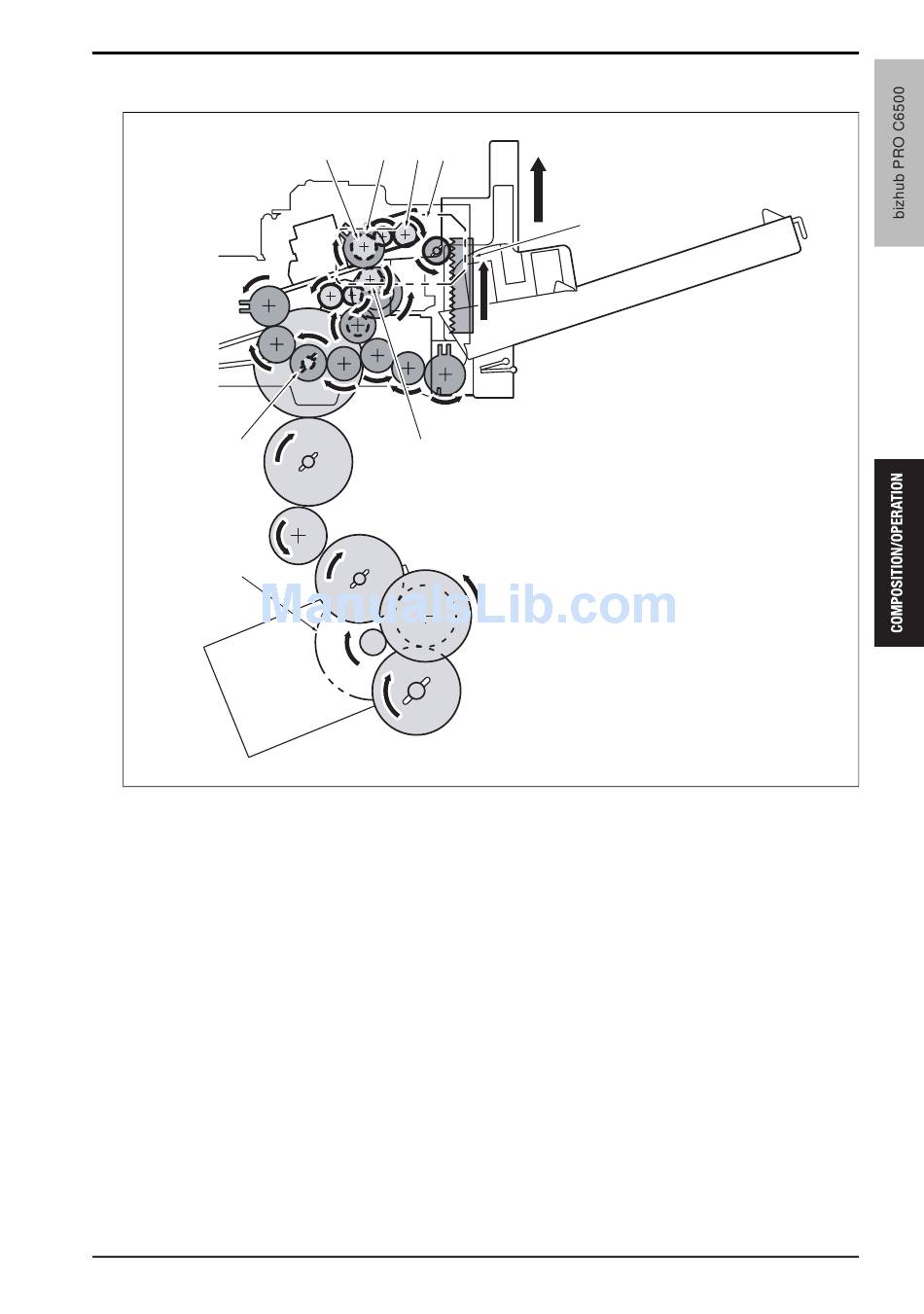

16.2 Drive
[5]
[4]
[1]
Lift gear
[2]
Pick-up roller
[3]
Separation roller
[4]
Paper feed motor (M41)
[6]
[7]
[2]
[8]
[3]
16. BYPASS FEED TRAY SECTION
[1]
[5]
Drive coupling
[6]
Paper feed roller
[7]
Paper feed clutch /BP (MC6)
[8]
Paper lift motor /BP (M35)
a03ut2c054ca
