Theory of Operation Ver1.0 Sep.2006
6.3

Operation

6.3.1

Alignment /Up control

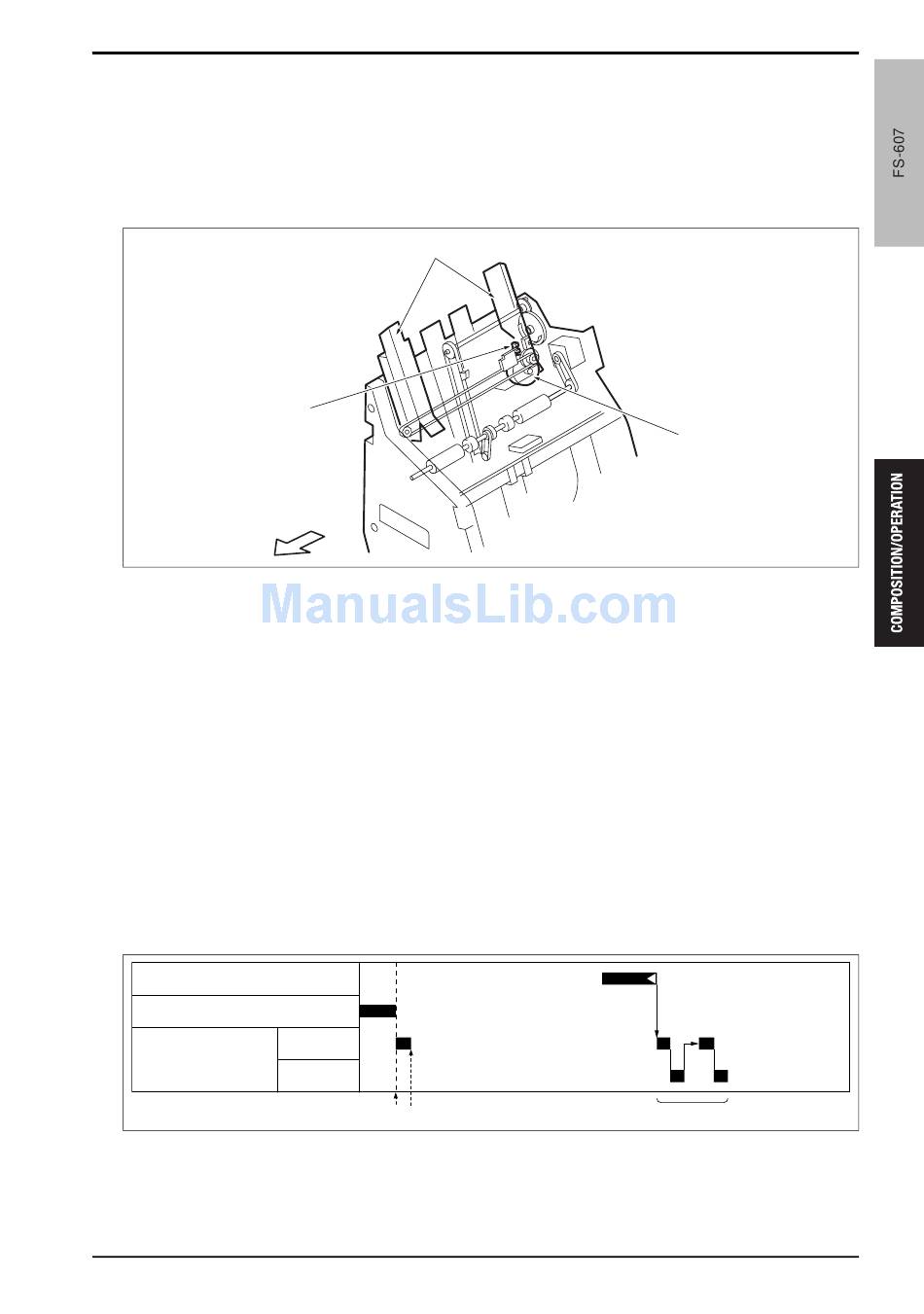

In the stapling/saddle stitching/tri-folding mode, the alignment motor /Up (M5) rotates in the forward/reverse
direction to open/close the alignment plate /Up to perform the alignment of the paper transferred to the stacker
in the main scan direction.
FRONT
[1] Alignment motor (M5)
[2] Alignment home sensor (PS8)
A. Alignment /Up operation
The alignment motor /Up (M5) rotates to open/close the alignment plate via the alignment belt.
The alignment home sensor /Up (PS8) detects the home position of the alignment plate.
B. Alignment /Up control
Transmitting the FNS signal from the main body, the alignment motor /Up (M5) rotates to close the alignment
plate /Up [1], and then it stops the alignment plate at the standby position that is a little wider than the paper
width [2].
M5 performs the alignment operation by rotating in the forward and reverse direction to move the alignment
plate /Up back and forth after a specified period of time since the stacker entrance sensor (PS5) detects the
trailing edge of the paper. The alignment operation is performed for every paper [3].
Stacker entrance sensor (PS5)
Alignment home sensor /Up (PS8)
Alignment motor
/Up (M5)
[1] Closing the alignment plate /Up (FNS signal)
[2] Standby position of the alignment plate /Up
[3]
[2]
CLOSE
OPEN
[1] [2]
[1]
[3] Alignment plate /Up
[3]
[3] Alignment operation for every paper
6. STACKER SECTION
15jmt2c023na
15jmt2c002na
31
