6. REVERSE/PAPER EXIT SECTION
B. Reverse/paper exit

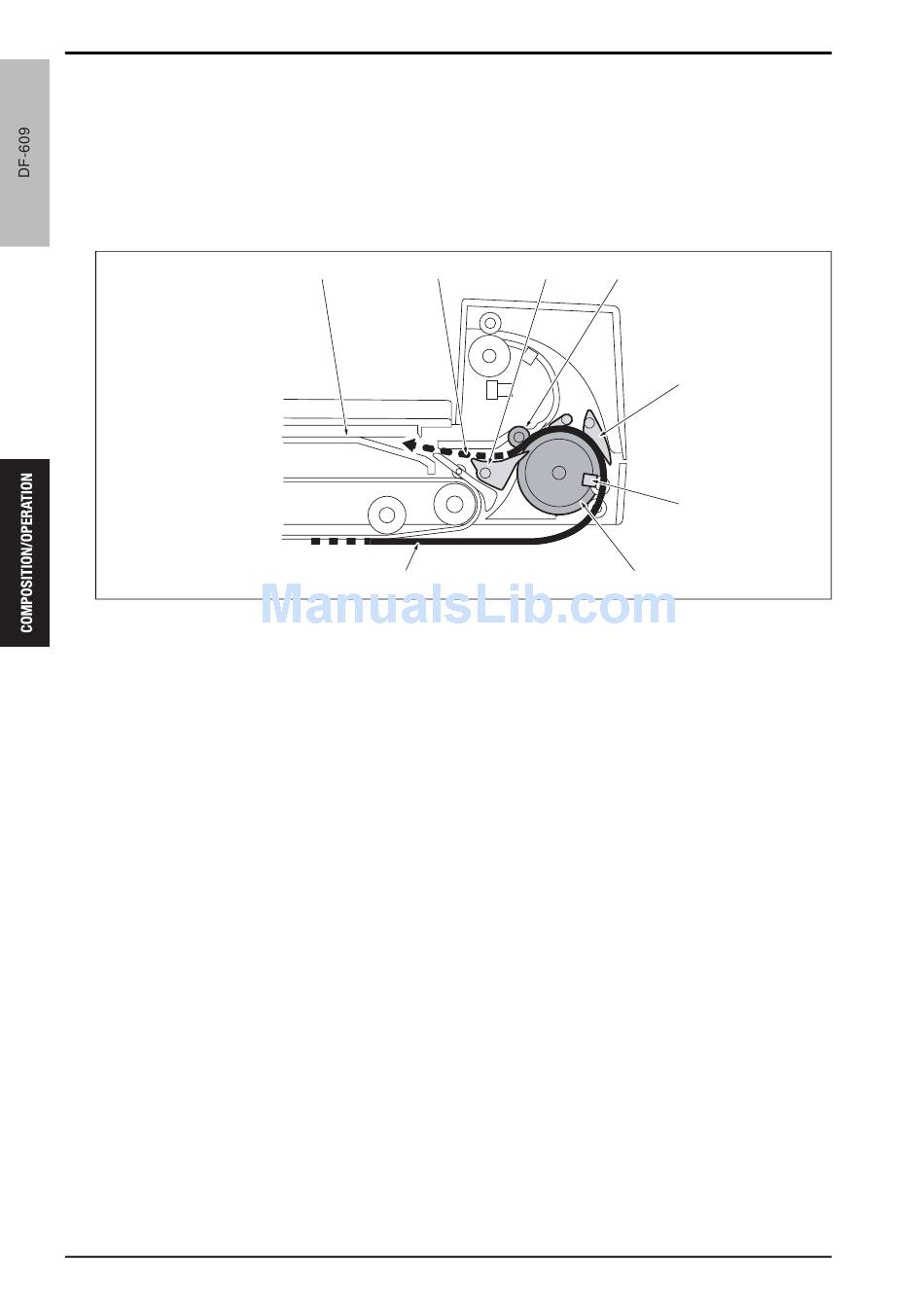

(1) Operation
• The paper exit solenoid (SD301) and the reverse solenoid (SD302) are off in this mode.
1.
The original [4] from the conveyance section is fed around the reverse roller [3] through the paper exit gate
[1], and conveyed to the reverse stacker [5] by the reverse gate [7].
2.
The original stops proceeding with its rear end nipped by the reverse roller [8].
[1] Paper exit gate (OFF)
[2] Reverse sensor (PS305)
[3] Reverse roller
[4] Original
3.
The reverse roller stops rotating once, then starts reverse rotating and feed the original to the reverse paper
exit conveyance path.
4. The paper exit roller slows down when feeding the rear end of the original, and ejects the original with no
skew.
26
[5] [6]
[4]
Theory of Operation Ver1.0 Sep.2006
[7] [8]
[3]
[5] Reverse stacker
[6] Conveyance direction
[7] Reverse gate (OFF)
[8] Nipping rear end of the original
[1]
[2]
