8. BUNDLE PROCESSING SECTION
(2) No trimming mode

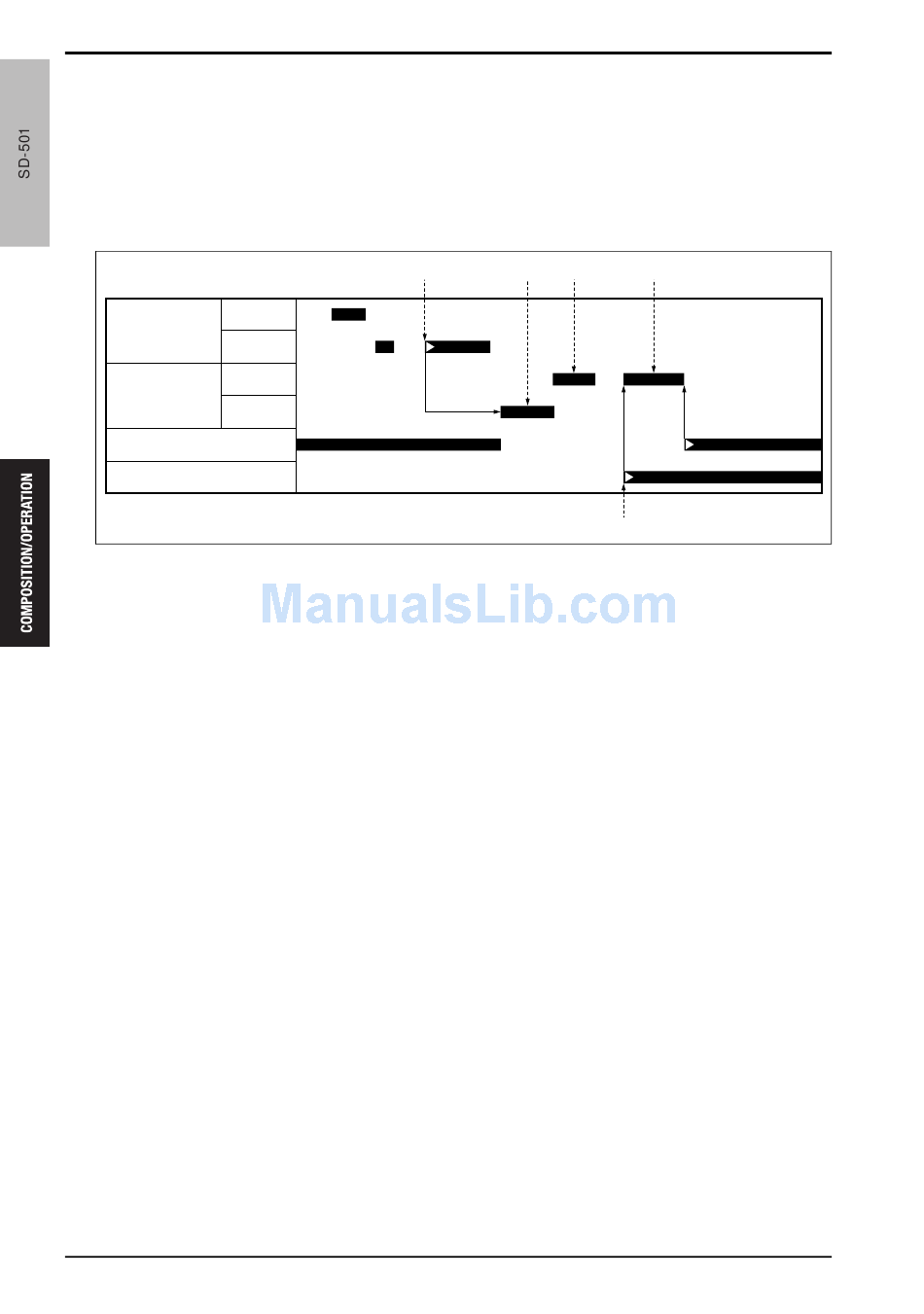

The bundle press movement motor (M17) rotates in the reverse direction to move the bundle press section to
the paper conveyance position [2] after a specified period of time since the bundle clip motor (M11) starts con-
veying the paper [1]. Then M17 rotates in the forward direction to move the bundle press section to the appro-
priate press position in accordance with the paper size [3].
M17 rotates in the forward direction to return the bundle press section to the home position [5] when the bundle
press stage up down home sensor (PS35) detects that the bundle press stage has been moved down [4].
Forward
Bundle clip
motor (M11)
Reverse
Forward
Bundle press
movement
Reverse
motor (M17)
Bundle press movement home sensor (PS36)
Bundl e press stage up down home sensor (PS35)
[1] Conveyed by the bundle clip
[2] Moved to the shelter position
[3] Moved to the press position
94
Theory of Operation Ver2.0 Sep.2006
[1] [2] [3]
*
[4] Bundle press stage up down home position
[5] Returning to the home position
* Only for the paper of 297 mm or more
(before folding)
[5]
[4]
