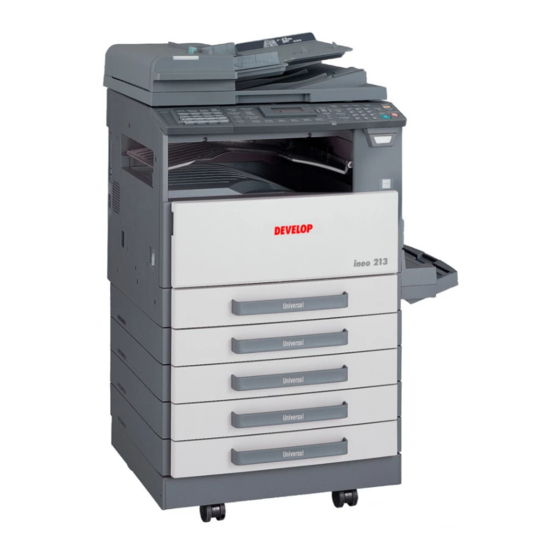

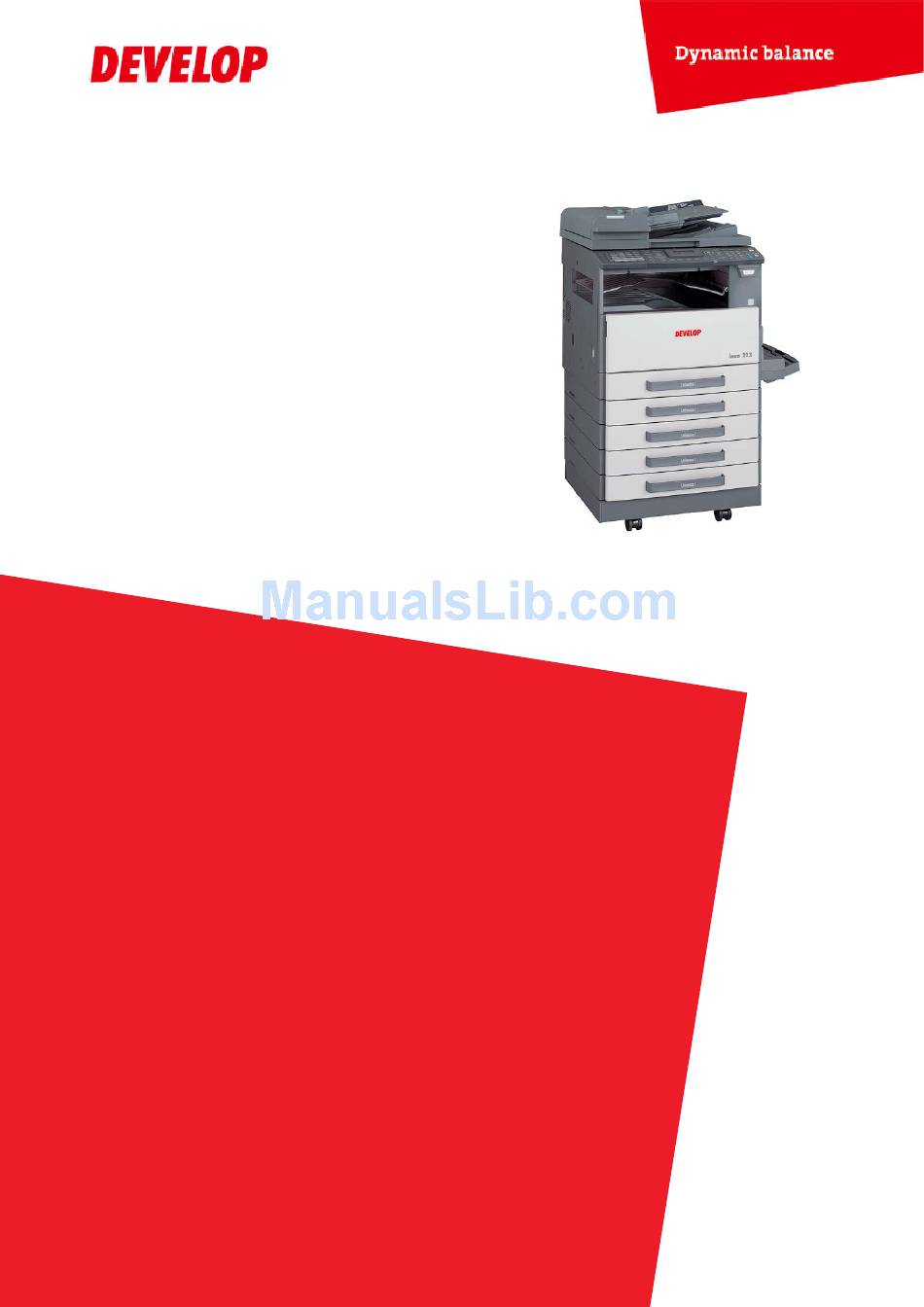

- Page 1 Product Guide ineo 163/213 Product Guide ineo 163/213 23.07.07...
-
Page 2: Table Of Contents
Product Guide ineo 163/213 Table of contents Product Basic ................... 3 Product Configuration................4 System Specifications ................7 Copier Specifications................11 GDI-Printer Specifications (Standard) ............ 14 PCL-Printer Specifications with IC-206 ..........15 Scanner Specifications................19 Fax Specifications .................. 21 Internet Fax .................... 25 Consumables .................. -
Page 3: Product Basic
Product Guide ineo 163/213 ineo 163 ineo 213 Tenryu 2 (S) Tenryu 1 (S) MODEL DEVELOPMENT CODE ineo 163 ineo 213 PROPOSED MODEL NAME ineo 161 ineo 210 SUCCESSOR MODEL FOR 06 / 07 ESTIMATED SALES START DATAQUEST SEGMENT KM bizhub 163... -
Page 4: Product Configuration
Product Guide ineo 163/213 SYSTEM DIMENSION ineo 163 ineo 213... -
Page 5: Automatic Document Feeder
Product Guide ineo 163/213 SYSTEM CONFIGURATION ineo 163 Automatic Document Feeder DF-502 Original Cover OC-504 Shift Tray SF-501 Job Separator JS-503 Multi Bypass Tray MB-501 Paper Feed Unit PF-502 SCD-21 Stand Copy Desk Copy Desk SCD-21 Large SCD-21 Small Image Controller... -
Page 6: Automatic Document Feeder
Product Guide ineo 163/213 SYSTEM CONFIGURATION ineo 213 Original Cover OC-504 Automatic Duplex Document Feeder Mount Kit for DF-605 DF-605 MK-501 Automatic Document Feeder DF-502 Shift Tray SF-501 Job Separator Automatic Duplex JS-503 Unit AD-504 Multi Bypass Tray MB-501 Paper Feed Unit... -
Page 7: System Specifications
Can be used only with ineo 213. Mount Kit MK-501 is Remark required. MOUNT KIT MK-501 Option Remark Is required to assemble the DF-605 to the ineo 213 ORIGINAL COVER OC-504 Remark Standard for ineo 163, option for ineo 213... - Page 8 Product Guide ineo 163/213 Standard PAPER CASSETTE Capacity 1 x 250 sheets universal (80 g/m²) Paper Format A5 to A3 Paper Weight 60 – 160 g/m² Plain paper, thick paper, OHP, envelopes (refer to Copy Media recommended media) 251 sheets standard (cassette and single bypass), Max.
- Page 9 With the NC-503 network printing for GDI and network scanning Remark (TWAIN, Scan to e-mail/FTP) is possible. FAX KIT FK-506 Option Remark Adds fax functionality to ineo 163 / 213 EXPANDED MEMORY EM-103 Option Capacity 128 MB Shared memory for Copier/Fax/Print. Memory increases the...
- Page 10 Product Guide ineo 163/213 SCD-21 LARGE Option Dimensions (WxDxH) (mm) 581 x 500 x 459 Should be used if the system is equipped with 1 PF-502 paper Remark cassettes or if no additional cassette is used at all. SCD-21 SMALL...
-
Page 11: Copier Specifications
Less than ± 3 mm left/right side 250 sheets A4 crosswise, 150 sheets others than A4 crosswise OUTPUT CAPACITY 220 – 240 V : 4.5 A (ineo 163), 5.5 A (ineo 213) POWER REQUIREMENT 50 / 60 Hz 1,050 W... - Page 12 Product Guide ineo 163/213 Page Insertion Cover Mode Continuous Number Stamping Date Stamp Page Stamp Distribution Numbering Watermark Department Control Yes (50) Edge / Frame Erase Image Insertion Image Repeat Image Shift Image Rotation Job / Memory Recall Non-Image Area Erase...
- Page 13 Product Guide ineo 163/213 FINISHING FEATURES Electronic Sorting Criss / Cross Sorting Yes with 2 cassette or multi bypass tray Off-Set Sorting Yes, with SF-501 Stapling Punching Folding...
-
Page 14: Gdi-Printer Specifications (Standard)
Product Guide ineo 163/213 Shared with copier PRINT SPEED 12 ppm A4 crosswise for ineo 163 (600 x 600 dpi) 16 ppm A4 crosswise for ineo 163 (300 x 300 dpi) 12 ppm A4 crosswise for ineo 213 (600 x 600 dpi) -
Page 15: Pcl-Printer Specifications With Ic-206
Product Guide ineo 163/213 Hitachi CX86202 PRINT SPEED 16 ppm A4 crosswise [600 x 600dpi] (ineo 163) 21 ppm A4 crosswise [600 x 600dpi] (ineo 213) 13 ppm A4 crosswise [1200 x 600dpi] (ineo 163) 13 ppm A4 crosswise [1200 x 600dpi] (ineo 213) - Page 16 Product Guide ineo 163/213 PROTOCOLS Netware Yes NDPS Yes Ipd Yes IPP No Apple Talk No Windows 98SE/Me/2000/XP/2003 Server SUPPORT OS (Vista 10/07) UTILITIES NMU Yes Web Connection Yes Network Setup Yes NDPS Gateway Yes EMS Plug-ins Yes Workware Demo No (Workware optional)
- Page 17 Product Guide ineo 163/213 FEATURE LIST Booklet Creation No Chapter Insertion No Continuous Number Stamping No Cover Mode Yes Date Stamp No Distribution Numbering No Edge / Frame Erase No Image Insertion No Image Repeat No Image Shift No Image Rotation No...
- Page 18 Product Guide ineo 163/213 FEATURE LIST cont. Transmit Once Print Many No RIP Once Print Many Yes. All Raster / Download as bitmap Yes WHQL Yes FINISHING Sorting Yes, electronic sort function Stapling No Punching No Folding No Cover Insertion No...
-
Page 19: Scanner Specifications
Scan to iFAX Yes (with FK-506 and NC-503 or IC-206) Scan to IP Scanner (Direct send to PC) No SCAN BASICS ineo 163 with DF-502: 16 opm Scan Speed (with ADF) ineo 213 with DF-502: 16 opm ineo 213 with DF-605: 20 opm Paper Size A5 –... - Page 20 Product Guide ineo 163/213 SCAN TO FTP Protocol FTP Client Resolution 150x150dpi, 300x300dpi, 600x600dpi Max. destinations 10 SCAN TO iFAX (e-mail / LAN-FAX) Protocol SMTP, POP3 Paper Size A4 (advanced mode: B4, A3) Resolution 204x98dpi, 204x196dpi (Advanced mode : 204x392dpi)
-
Page 21: Fax Specifications
Product Guide ineo 163/213 GENERAL DATA Min Transmission Time (seconds) < 3 Sec. ITU-T V.34,JBIG (ITU No. 1) Max. Modem Speed / Compatibility 33,6 kbps / ECM, Super G3 Coding / Error Correction (ECM) MH, MR, MMR, JBIG / ECM... - Page 22 Product Guide ineo 163/213 TRANSMISSION/INPUT Std: 8 x 3.85 line/mm FINE: 8 x 7.7 line/mm Transmission Resolution S-FINE: 8 x 15.4 line/mm S-FINE: 16 x 15.4 line/mm (ineo 213 ADF TX) Effective Scanning Width Erase 2mm (According to detected size or user selection) Max.
- Page 23 Product Guide ineo 163/213 RECEIVING/OUTPUT Receiving Resolution Up to 408 x 392 dpi Effective Print Width (fax mode) Erase 4mm from both edges Smoothing Yes Auto/Manual Reception Yes Storable RX Jobs Depends on memory and files (1024 files) Reduction in Fax Mode Yes...
- Page 24 Product Guide ineo 163/213 REPORTS AND LISTS Telephone List Yes Key Setting List Yes Transmission Report Yes Reception Result Report Yes Reservation Report Yes Relay Broadcast Report Yes Error Report Yes Machine Status List Yes Journal (max. 60 communications) Yes Consumable Order Report Yes (name is changed to “Service Report”)
-
Page 25: Internet Fax
Product Guide ineo 163/213 Transmission Protocols TCP/IP, SMTP, POP3 Transmission Mode Simple mode Original Size A3, B4, A4 Paper Size Max. A3 Resolution for Sending 204 x 98dpi, 204 x 196dpi, 204 x 391dpi 200 x 100dpi, 200 x 200dpi, 204 x 98dpi, 204 x 196dpi, 204 x... -
Page 26: Consumables
Product Guide ineo 163/213 TONER Name Toner TN114 Concept Toner Bottle Weight 413 g Yield 11 k (6 % coverage, 2 pages per job) each bottle Units per carton 2 bottles DEVELOPER Name Developer DV110 Contents of one unit 200 g... -
Page 27: Article Numbers
Product Guide ineo 163/213 MACHINE Article Number ineo 163 A09A121 ineo 163 (120V) A09A1P1 ineo 213 A08E121 ineo 213 (120V) A08E1P1 ACCESSORIES Article Number Compatibility Automatic Document Feeder DF-502 4688625 ineo 161/210 Duplexing Document Feeder DF-605 4344715 ineo 210/250/350 DF-605 Mount Kit MK-501... - Page 28 Product Guide ineo 163/213 ADDITIONAL ACCESSORIES for the Article Number Compatibility ineo 163/213 with FK-506/NC-503 Unimessage Pro single user on demand (4968332) ineo 161/210 Unimessage Pro 5-users on demand (4968342) ineo 161/210 I-Net Portal on demand (1418401) ineo 161/210 CONSUMABLES...
-
Page 29: Service Part
Installation Flowchart In order to perform the installation process of ineo 163/213 in the most efficient way, it is recommended to follow the flowchart below. All reported installation times are related to this process. Outline of Installation Procedure for ineo 163/213 System... - Page 30 Software please refer to Remote Setup & Diagnostic. The third way to update the firmware is to use a ineo 163/213 connected to another ineo 163/213. In that case, the machine with the newer firmware can “call” the other and update the firmware using the telephone connection.
- Page 31 Product Guide ineo 163/213 PM Time PM Parts Maintenance Time PC Drum Unit Replace 00:38 sec. Drum Charge Unit Replace 01:15 sec. Cleaning Blade Replace 01:02 sec. Developer Replace 10:32 sec. Pick-up Roller Replace 01:37 sec. Friction Roller Assy Replace 01:09 sec.
- Page 32 Product Guide ineo 163/213 CM Time Section CM Parts Time Resist Sensor 06:39 sec. Main Motor 02:32 sec. Paper Empty Sensor 01:45 sec. Neutralizing Sheet 03:30 sec. Transportation Cover Exhaust Fan 07:34 sec. Paper Empty Sensor (at additional cassette) 04:56 sec.
- Page 33 Product Guide ineo 163/213 Section CM Parts Time Paper Size Detection SW 06:00 sec. PWB-I (Paper Size Detection Board) 04:37 sec. Operation Panel 01:22 sec. CCD Unit 04:29 sec. Exposure Lamp 06:54 sec. Exposure Lamp Inverter 06:38 sec. Original Size Detection Sensor 02:34 sec.
-
Page 34: Periodical Replacement Parts
Product Guide ineo 163/213 Periodical Replacement Parts Replacement after Spare Parts Article No. (K) copies PC Drum Unit 4021 – 0297 - 01 40 K Cleaning Blade 40 K Drum Charge Unit 40 K Developer 8936 - 488 40 K... -
Page 35: Appendix
Product Guide ineo 163/213 Different cassette configurations ineo 163 / 213 with: ineo 163 / 213 with: Copy Desk Large & Stand & 1 x PF-502 4 x PF-502 ineo 163 / 213 with: ineo 163 /213 with: Copy Desk Small &... -
Page 36: Product Guide Ineo
Product Guide ineo 163/213 List of functions and necessary options UMP/ FK-506 NC-503 IC-206 AD-504 PF-502 MB-501 SF-501 ٭ I-NetP Copier Double-sided copies Electronic sorting Crisscross sorting ¹ ¹ Shift sorting Printer Local GDI print Network GDI print Network PCL print... -
Page 37: Ineo
Product Guide ineo 163/213 Multi Task Capability Copy Print Scan Data Trans- Recep- Data Scanning Copying Printing Scanning Receiving mission tion Sending Scanning Copying Data Receiving Printing Trans- mission Recep-tion Scanning Data Sending Remark: For GDI version it can not print data during both, copying and fax reception. Also it can not copy... -
Page 38: Original Cover Oc
Product Guide ineo 163/213 Compatibility Model Description ineo 161 ineo 210 ineo 163 ineo 213 Name Automatic Document Feeder DF-502 Duplexing Document Feeder DF-605 Mount Kit for DF-605 MK-501 Paper Feed Unit PF-502 Multi Bypass MB-501 Job Separator JS-503 Shift Tray... -
Page 39: Product Guide Ineo
Product Guide ineo 163/213 Compatibility cont.. Model Description ineo 161 ineo 210 ineo 163 ineo 213 Name Mechanical Counter MC-503 Key Counter Mount Kit Unimessage Pro Unimessage Pro I-net portal Drum (Yield 40 k) DR114 Developer (Yield 40 k) DV110... -
Page 40: Product Guide Ineo
Product Guide ineo 163/213 www.develop.de Note! Since changes in technical features are the order of the day in the world of digital copiers and printing technology, please note that the technical data provided in this material was issued in May 2007. We reserve the right to make changes to the technical design.
