D. Air assist control

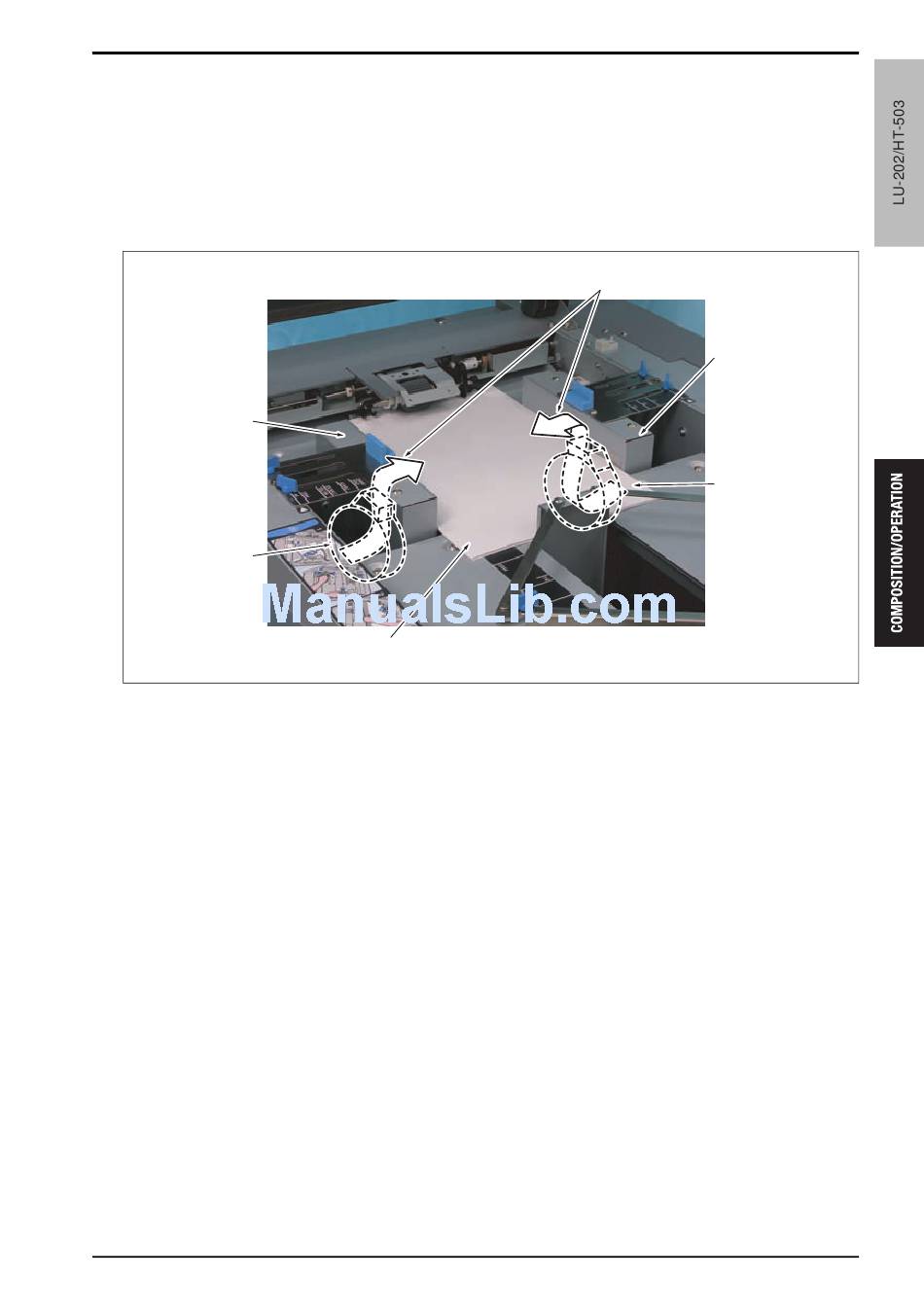

• The paper feed assist fan/Fr (FM1) and /Rr (FM2) are mounted to the side guide/Fr and /Rr respectively in
order to assist the separation of paper.
• When coated paper has been selected at the paper setting, FM1 and FM2 turns on upon receiving a print
start signal.
• The air-blowing level of the FM1 and FM2 can be selected from Auto, ON (strong), ON (weak), and OFF at
the paper setting.
[5]
[4]
[1] Side guide/Rr
[2] FM2
[3] Paper
[3]
[4]
[5]
[6]
4. PAPER FEED SECTION
[6]
[1]
[2]
FM1
Side guide/Fr
Airflow
a03wt2c009ca
