6. IMAGE CREATING PROCESS
6.4

Image development process (Step 3)

The non-image points of the electrostatic latent image on the photoconductor drum is charged negatively while
the image points are neutralized. As the toner is negatively charged, it is attracted to the image points on the
drum and as a result, a visible toner image is created on the drum. This operation is referred to as "develop-
ment."

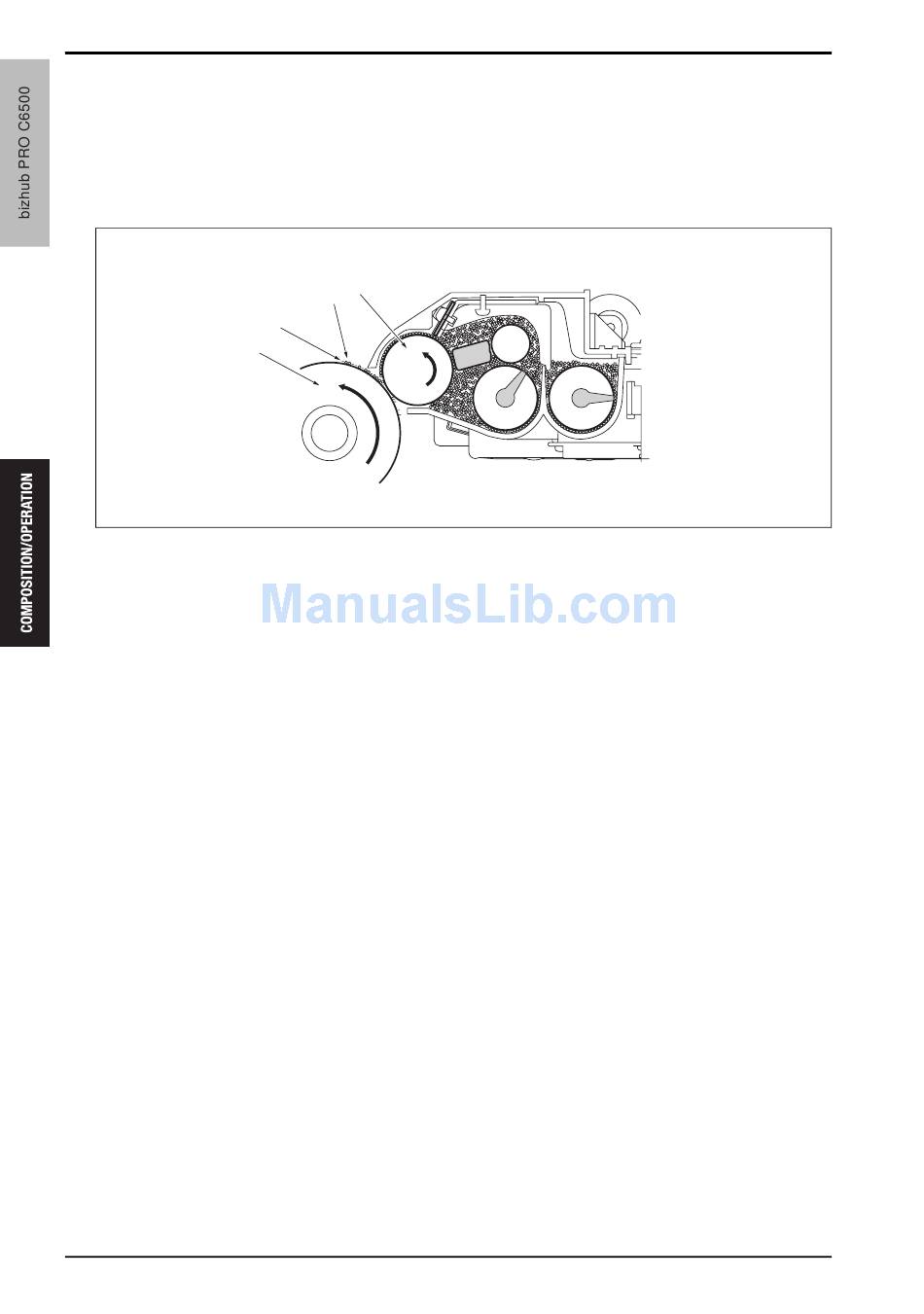

[1]
[1] Drum
[2] Negative electrostatic charge
14
[4]
[3]
[2]
Theory of Operation Ver1.0 Sep.2006
[3] Negatively charged toner
[4] Developing roller
a03ut2c005ca
