7. SADDLE STITCHING SECTION
7.3.3

Saddle stitching hold control

A. Mechanism

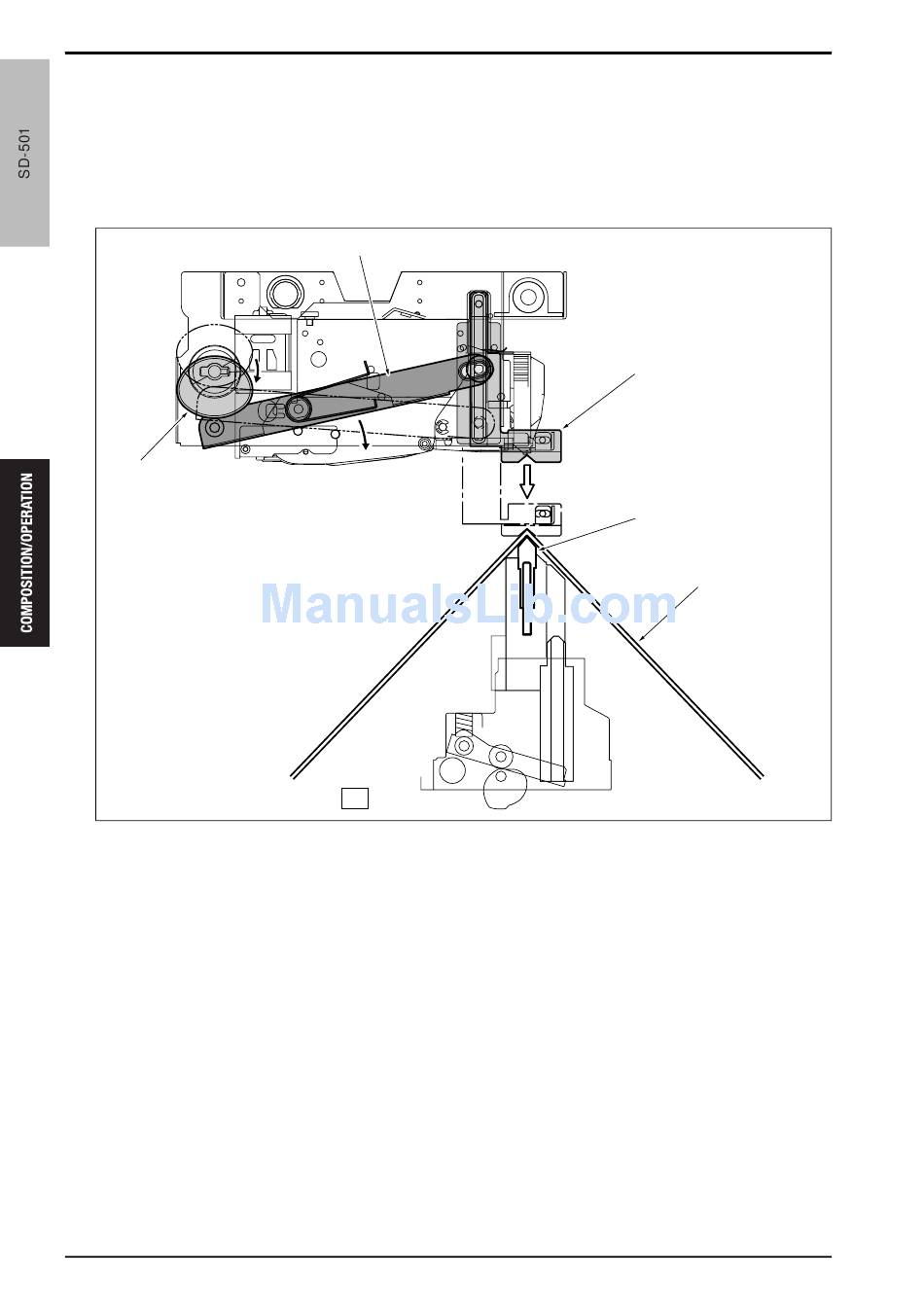

The saddle stitching hold is the mechanism to prevent the paper misalignment at stapling. The saddle stitching
hold /Up [1] moves down to the saddle stitching hold /Lw [2] at its lower position and hold the center folded
paper [3] at the fold line from both up and down.
The eccentric cam [5] moves the saddle stitching hold /Up [1] up and down via the arm [6].
[5]
[1] Saddle stitching hold /Up
[2] Saddle stitching hold /Lw
[3] Center folded paper
62
[6]
[4]
[4]
[5]
[6]
Theory of Operation Ver2.0 Sep.2006
[1]
[2]
[3]
Left side view
Eccentric cam
Arm
15ant2c039na
