Develop ineo+ 6500 Service Manual page 472

Theory of Operation Ver1.0 Sep.2006

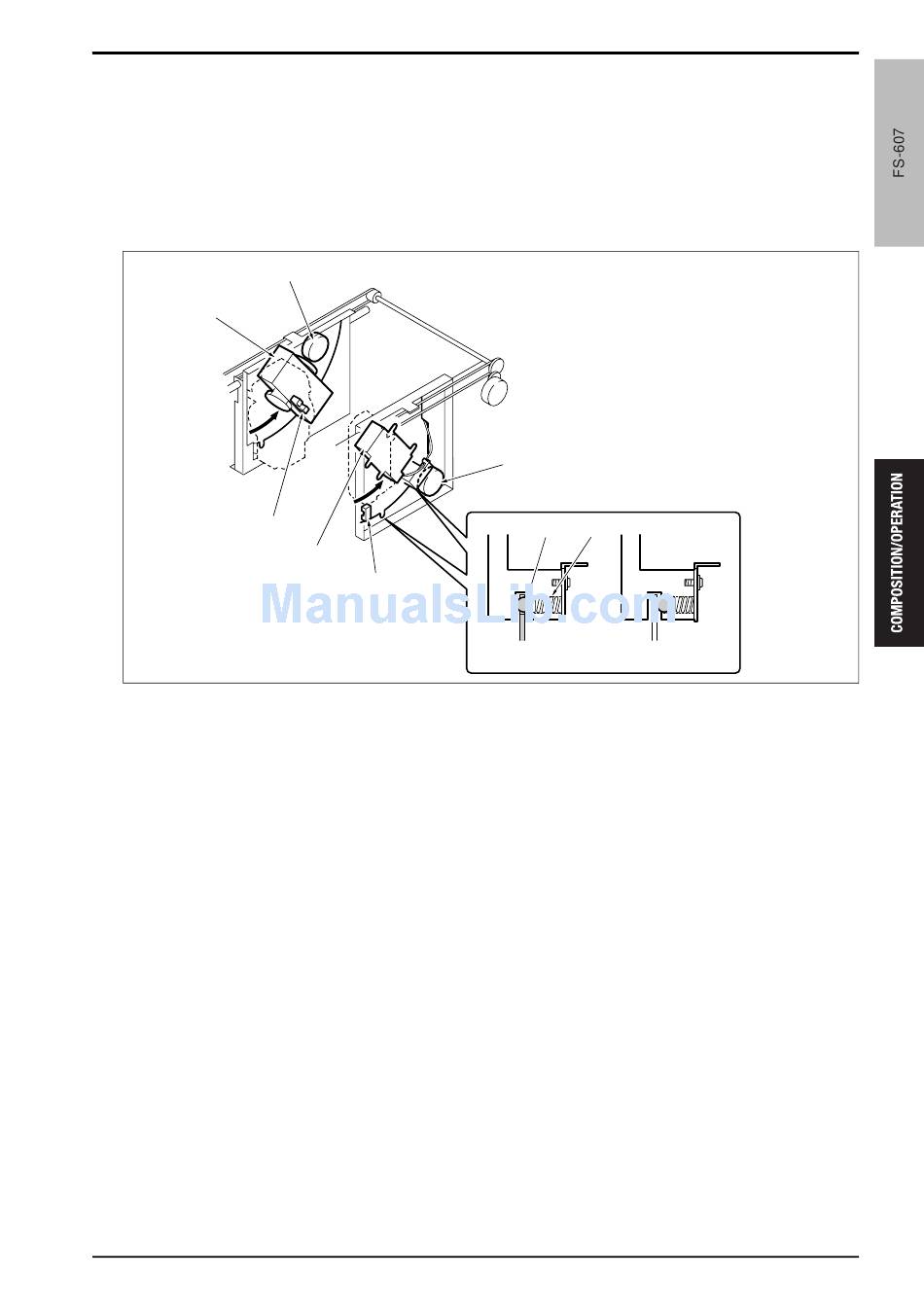

B. Rotational movement operation
The stapler /Rr and the clincher /Rr rotate 45° for performing 1 staple/one-corner stapling at rear.
The stapler rotation motor (M6) [10] rotates the stapler /Rr [9] and the clincher rotation motor (M4) [5] rotates the
clincher /Rr [7].
The ball rock mechanism that consists of the ball [1] and the spring [2] securely locks the stapler and the clincher
at 0° or 45°.
The illustrations [3] and [4] show the mechanism locked and unlocked respectively.
[9]
[8]
[1] Ball
[2] Spring
[3] Locked
[4] Unlocked
[5] Clincher rotation motor (M4)
[10]
[7]
[6]
[5]
[1] [2]
[3] [4]
[6] Clincher rotation home sensor (PS14)
[7] Clincher /Rr
[8] Stapler rotation home sensor (PS13)
[9] Stapler /Rr
[10] Stapler rotation motor (M6)
7. STAPLER SECTION
15jmt2c016na
47
