6. FOLDING SECTION
6.3

Operation

6.3.1

Folding entrance conveyance control

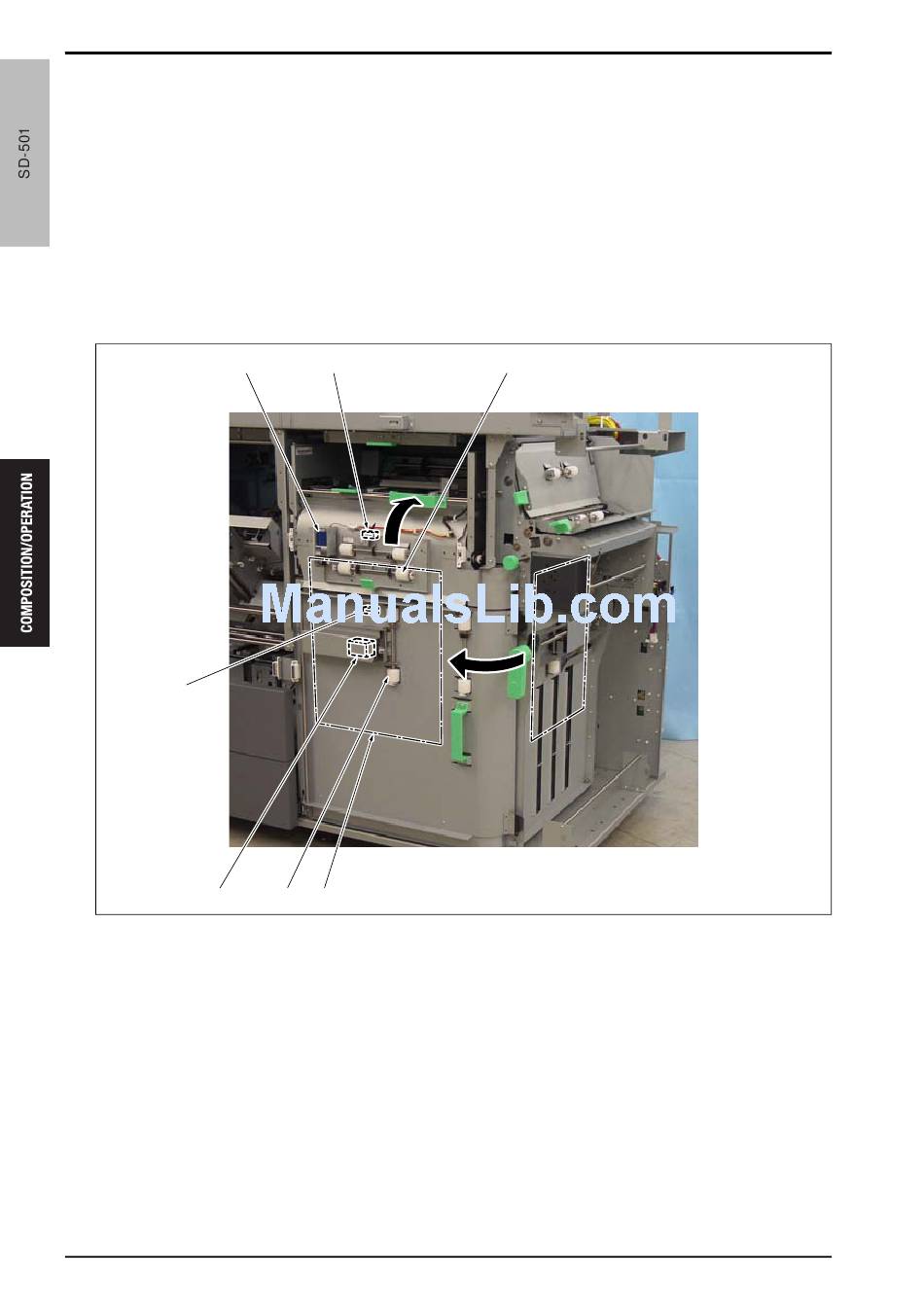

A. Mechanism
The folding entrance motor (M3) and the roller release solenoid /3 (SD7) [5] conduct the folding entrance con-
veyance operation.
The paper [1] conveyed from the right angle conveyance section is conveyed to the folding entrance with the
pressure of the folding entrance roller /1 [7] released. Once the right angle conveyance is completed, SD7 [5]
turns ON to pressure the nipping of the folding entrance roller /1 and the roller release solenoid /2 (SD6) [3] turns
ON to release the right angle conveyance roller /4, M3 convey the paper to the folding section.
The folding entrance sensor (PS60) [6] detects the paper at the folding entrance.
[5]
[4]
[3]
[1] Paper
[2] Right angle conveyance roller /4
[3] Roller release solenoid /2 (SD6)
[4] Right angle conveyance sensor /2 (PS6)
36
[6]
[2] [1]
Theory of Operation Ver2.0 Sep.2006
[7]
[5] Roller release solenoid /3 (SD7)
[6] Folding entrance sensor (PS60)
[7] Folding entrance roller /1
15ant2c022na
