(2) Control
1.
After the registration roller nips the original [1], the original is conveyed [2] from the paper feed section.
2.
After the specified time has elapsed from when the timing sensor (PS302) has turned off (Rear end detec-
tion), M302 is turned off and the original is conveyed to the point that the rear end of the original comes over
the positioning plate, and then the conveyance stops [3].
3. After the specified time, M302 rotates in reverse at low speed and returns the original [4], and the original is
stuck against the positioning plate (Swing-back).
4.
The scanning is performed in the main body [5].
5.
After scanning the second sheet (small size paper) or the first sheet (large size paper), the reverse/paper exit
motor (M303) is turned on at the same time as M302. Then the scanned original is conveyed to the reverse/
paper exit section [6] while the next original is conveyed to the conveyance section.
6.
When the scanning of the last page is completed and after the specified time has elapsed from when the
reverse sensor (PS305) is turned on, M302 is turned off [7].

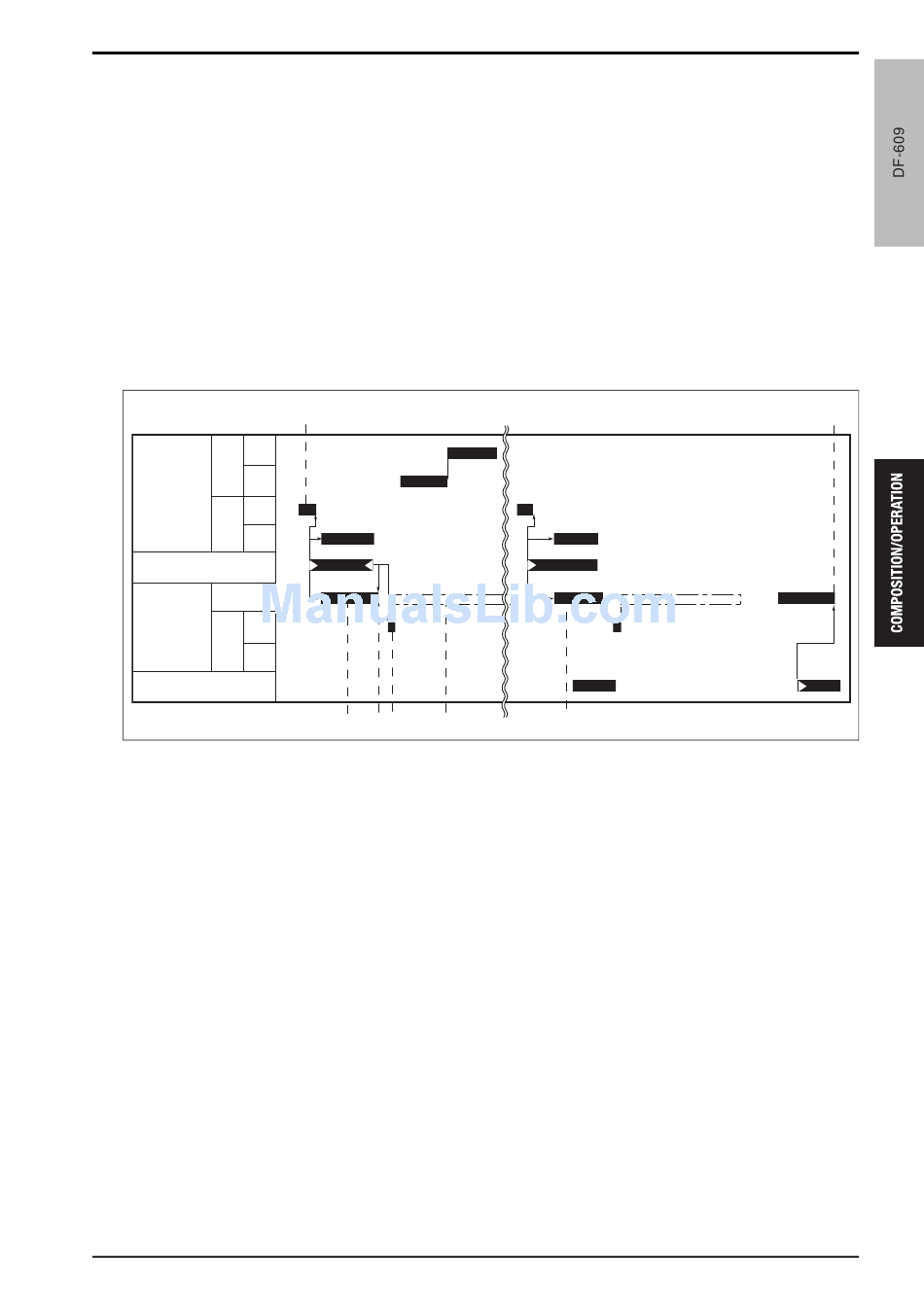

High
For-
war
Low
Paper feed motor
(M301)
Low
Rev
erse
High
Timing sensor (PS302)
Forward
Conveyance
Low
Rev
motor (M302)
erse
High
Reverse sensor (PS305)
[1] Nipping the original
[2] Conveyance from the paper feed section
[3] Pausing for swing-back
[4] Swing-back
[5] Scanning the original
[1]
[2] [3][4] [5]
5. CONVEYANCE SECTION
[6]
[6] Conveyance from the paper feed section
and paper exit
[7] Conveyance to the reverse/paper exit sec-
tion completed
[7]
a052t2c009ca
