Theory of Operation Ver2.0 Sep.2006

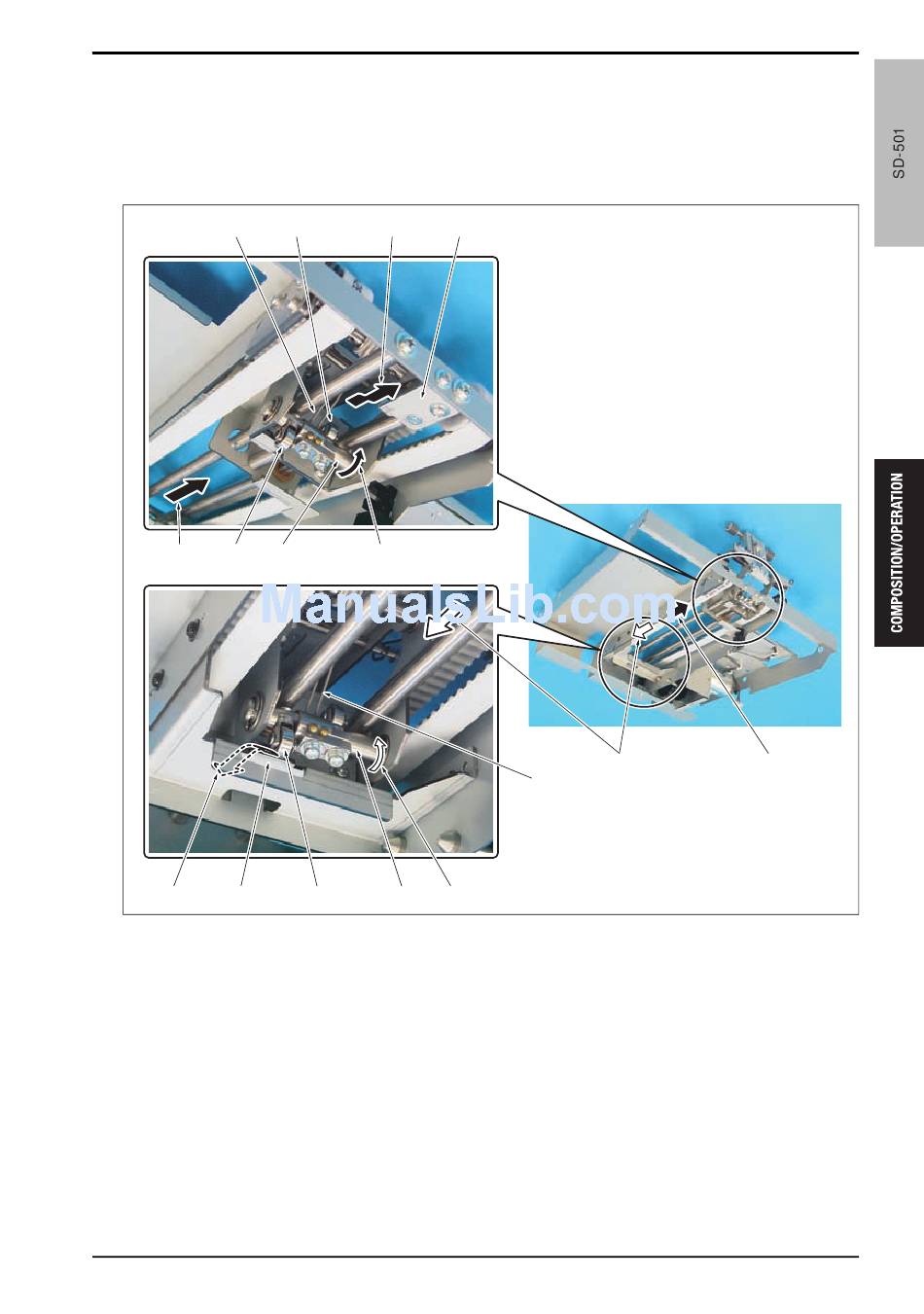

The bundle clip is closed all the time except when it is located at the upper and lower limit position. When the
bundle clip moves up [1], the release roller /Up [6] gets onto [7] the release plate /Up [8]. Then the wire winding
shaft [4] rotates [3] and takes up the wire [5] to open the bundle clip.
In the same way, when the bundle clip moves down [2], the release roller /Lw [10] gets onto [12] the release
plate /Lw [11] and then the wire winding shaft [4] rotates [9] and takes up the wire [5] to open the bundle clip.
[5]
[1] [10]
[12] [11]
[1] Up
[2] Down
[3] Wire winding rotation
[4] Wire winding shaft
[5] Wire
[6] Release roller /Up
[6] [7]
[4] [3]
[10] [4]
[8]
[2]
[5]
[9]
[7] Getting over at up
[8] Release plate /Up
[9] Wire winding rotation
[10] Release roller /Lw
[11] Release plate /Lw
[12] Getting over at down
7. SADDLE STITCHING SECTION
[1]
15ant2c049na
81
