Operation; Conveyance Control - Develop ineo+ 6500 Service Manual

Theory of Operation Ver1.0 Sep.2006
4.3

Operation

4.3.1

Conveyance control

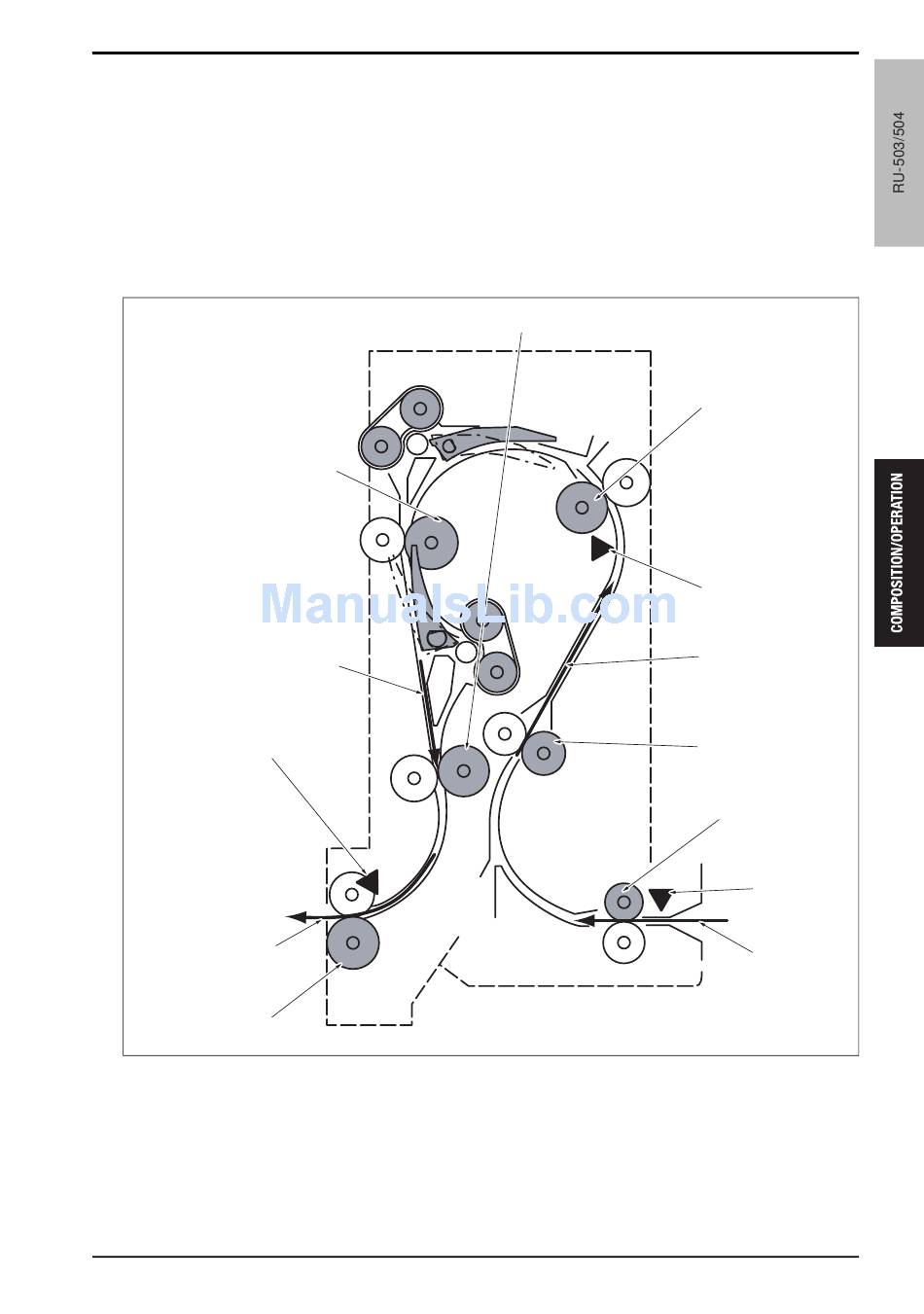

• The entrance conveyance motor (M1) controls the rotation of the entrance rollers /1 [6] and /2 [5].
• The paper exit motor (M5) controls the rotation of the intermediate rollers /1 [2], /2 [12], /3 [1] and the paper
exit roller [9].
• The paper ejected from the main body is conveyed to the RU section by the entrance roller /1 [8]. Then the
intermediate roller conveys the paper [4], and then paper exit roller exits it [10].
• The intermediate sensor (PS2) [3] detects paper jam.
[11]
[10]
[9]
[1] Intermediate roller /3
[2] Intermediate roller /1
[3] Intermediate sensor (PS2)
[4] Conveyance by the intermediate roller
[5] Entrance roller /2
[6] Entrance roller /1
[12]
[4]
4. CONVEYANCE SECTION
[1]
[7] Entrance sensor (PS1)
[8] Conveyance to the RU section
[9] Paper exit roller
[10] Paper exit from the RU section
[11] Paper exit sensor (PS3)
[12] Intermediate roller /2
[2]
[3]
[4]
[5]
[6]
[7]
[8]
a04kt2c003ca
