5. MAIN TRAY SECTION

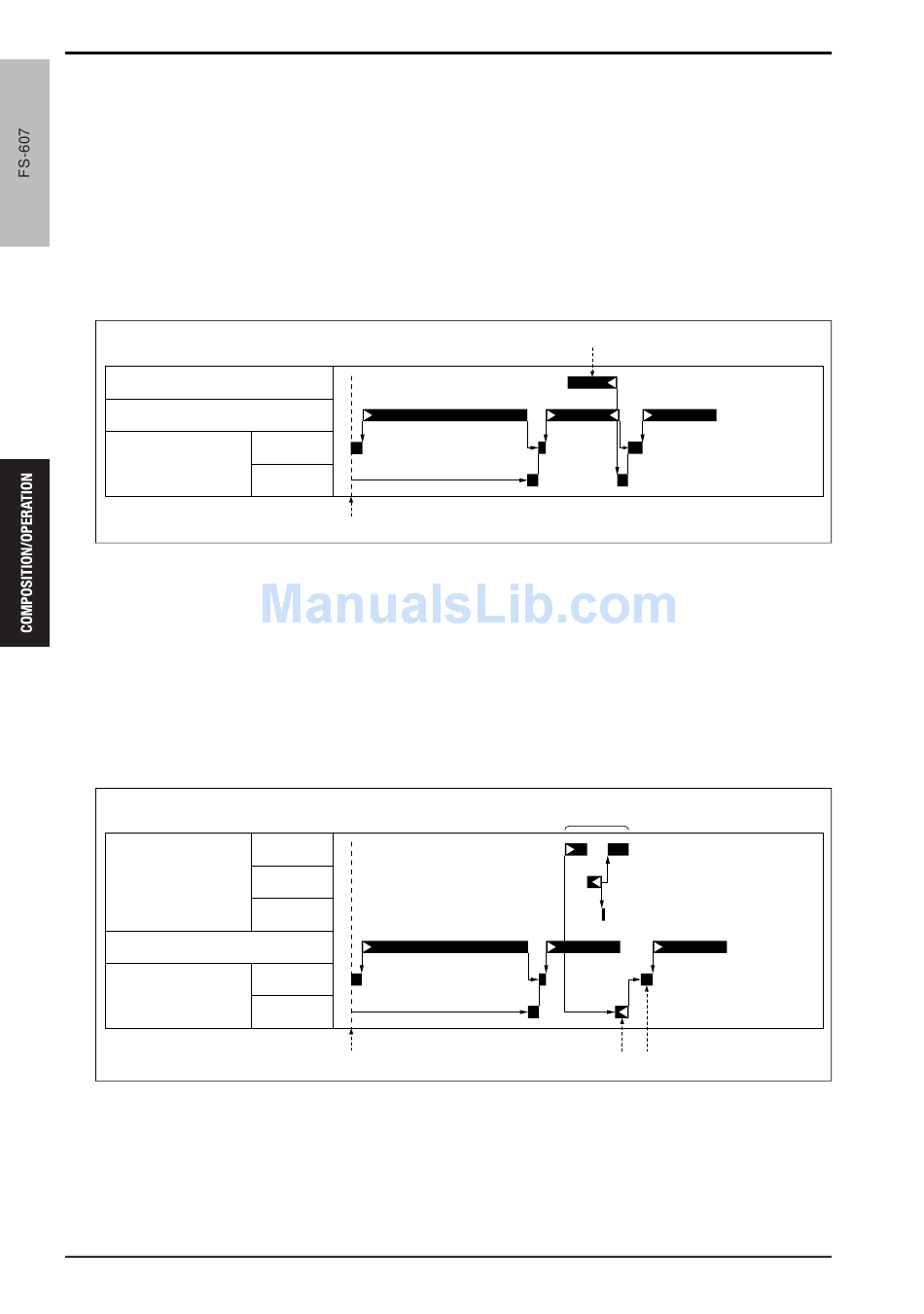

C. Tray lift control
The main tray lift motor (M3) lifts up and down the main tray by rotating in the forward and reverse direction
respectively. The FNS control board (FNSCB) controls M3.
(1) Non-sort/sort/group mode
Transmitting the FNS signal from the main body, the tray lift motor (M3) lifts up the tray until the main tray upper
limit sensor (PS2) turns ON.
M3 lifts down the tray when the paper passes the main tray paper exit sensor (PS6). M3 lifts up the tray again
after a specified period of time since the PS2 turns OFF, and then stops when PS2 turns ON.
These operations are repeated for every paper.
Main tray paper exit sensor (PS6)
Main tray upper limit sensor (PS2)
Tray lift motor (M3)
[1] FNS start signal turned ON
(2) Stapling mode
Transmitting the FNS signal from the main body, the tray lift motor (M3) lifts up the tray until the stapler paper exit
upper limit sensor (PS2) turns ON.
The tray lift motor (M3) lifts down the main tray after a specified period of time since the paper exit roller motor
(M7) turns ON. After a specified period of time, M3 rotates in the reverse direction to lift up the main tray, and
then stops when the stapler paper exit upper limit sensor (PS7) turns OFF.
Paper exit roller
motor (M7)
Stapler paper exit upper limit sensor (PS7)
Tray lift motor (M3)
[1] FNS start signal turned ON
[2] Paper bundle exited to the main tray
28
UP
DOWN
[1]
400 mm/s
253 mm/s
Reverse
UP
DOWN
[1]
Theory of Operation Ver1.0 Sep.2006
[2]
[2] Paper exited to the main tray
[2]
[3] [4]
[3] Main tray lifted down
[4] Main tray lifted up
15jkt2c017na
