Theory of Operation Ver2.0 Sep.2006
5.3

Operation

5.3.1

Path switching

The path along which paper conveyed to the entrance guide plate is conveyed varies according to the operation
mode. The switching of the conveyance path is made by the 1st gate and the 2nd gate.

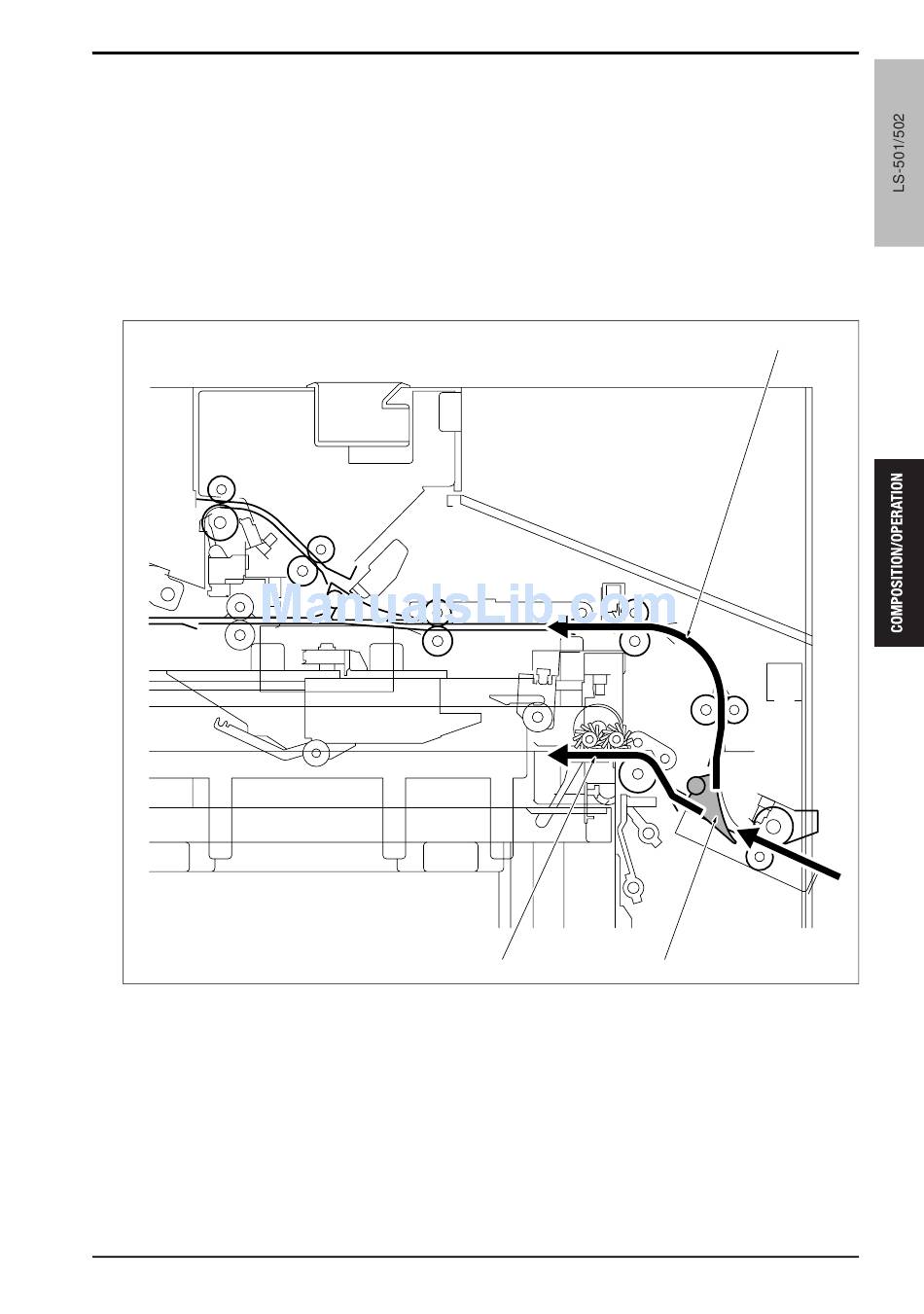

A. 1st gate
The switching of the conveyance path is made between the stacker tray paper exit (stacker tray non-sort mode
and stacker tray sort mode) and the sub tray paper exit (sub tray mode) and the coupling conveyance (coupling
mode).
[1] Sub tray mode/coupling mode
[2] 1st gate
5. ENTRANCE CONVEYANCE SECTION
[3] [2]
[3] Stacker tray non-sort mode/stacker tray
sort mode
[1]
ls502to2005c
