First transfer process (Step 4)

The toner images created on each of the Y, M, C, and K photoconductor drums are transferred to the transfer
belt one by one in the order of Y, M, C, and K. As a result, the four toner images are overlaid and a complete
toner image is formed on the belt. This is called as "first transfer."
In order to carry out the first transfer, a positive high DC voltage bias is applied to the first transfer roller provided
on the back surface of the transfer belt. This makes the transfer belt surface have a positive potential higher than
that of the each drum surface so that the toner on the drums are attracted to the transfer belt.

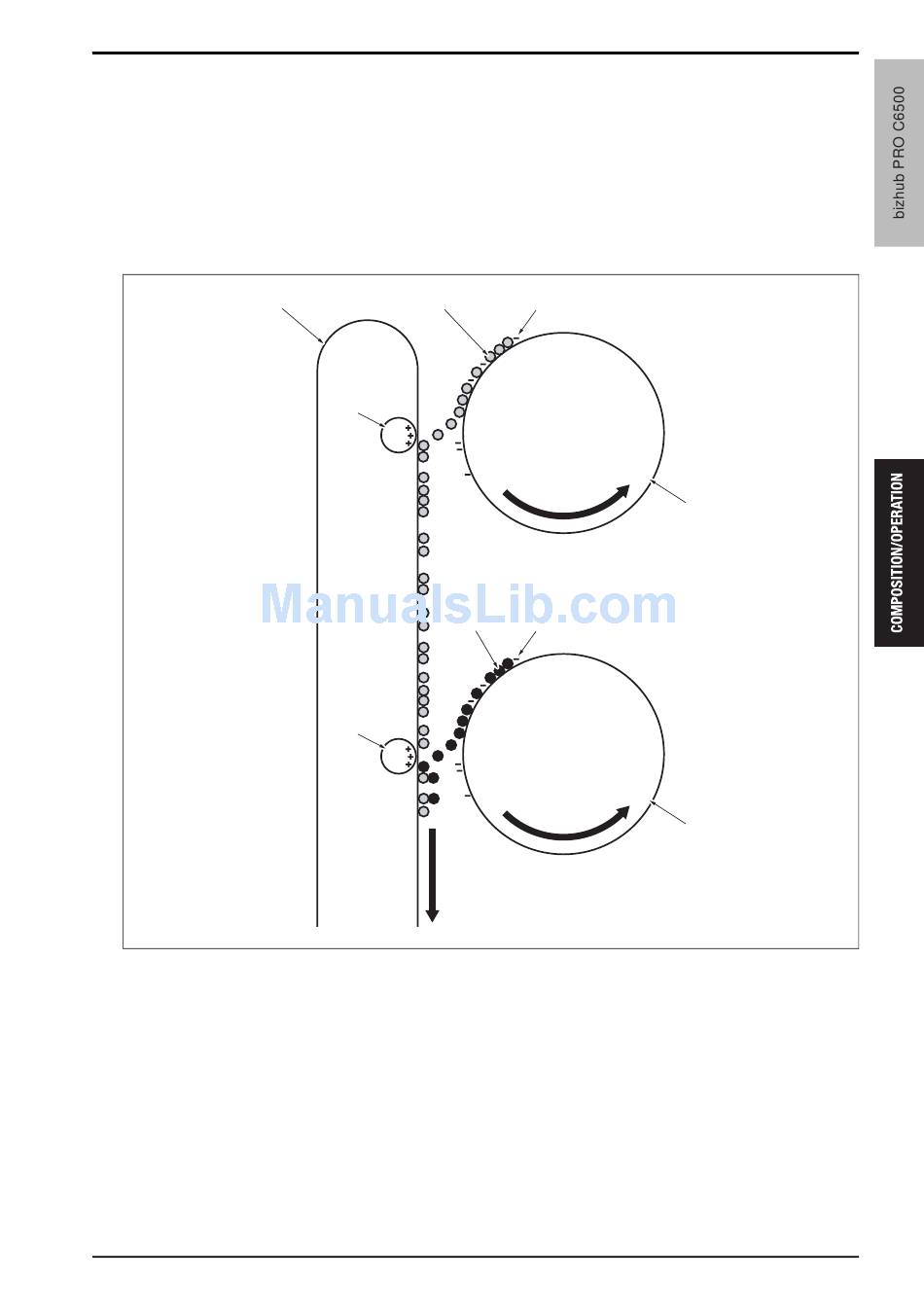

[3]
[1] Drum/Y
[2] First transfer roller/Y
[3] Transfer belt
[4] Toner/Y
[4]
[2]
[8]
[7]
6. IMAGE CREATING PROCESS
[5]
[1]
[5]
[6]
[5] Negative electric charges
[6] Drum/M
[7] First transfer roller/M
[8] Toner/M
