6. STACKER SECTION
(3) Staple mode
In the staple mode, the alignment operation is made by the alignment plates /Fr and /Rr for each sheet of paper
that has been sent to the stacker. After the last sheet of paper of the copy is conveyed to the stacker section,
the alignment operation for the staple is made for stapling.
B. Vertical alignment
In the staple mode, for the vertical alignment of paper, the paper is pushed against the flat-stapling stopper by
the paddle that is driven by the paddle motor (M2).
The vertical alignment is assisted by the swing roller that is interlocked with the paddle by M2.

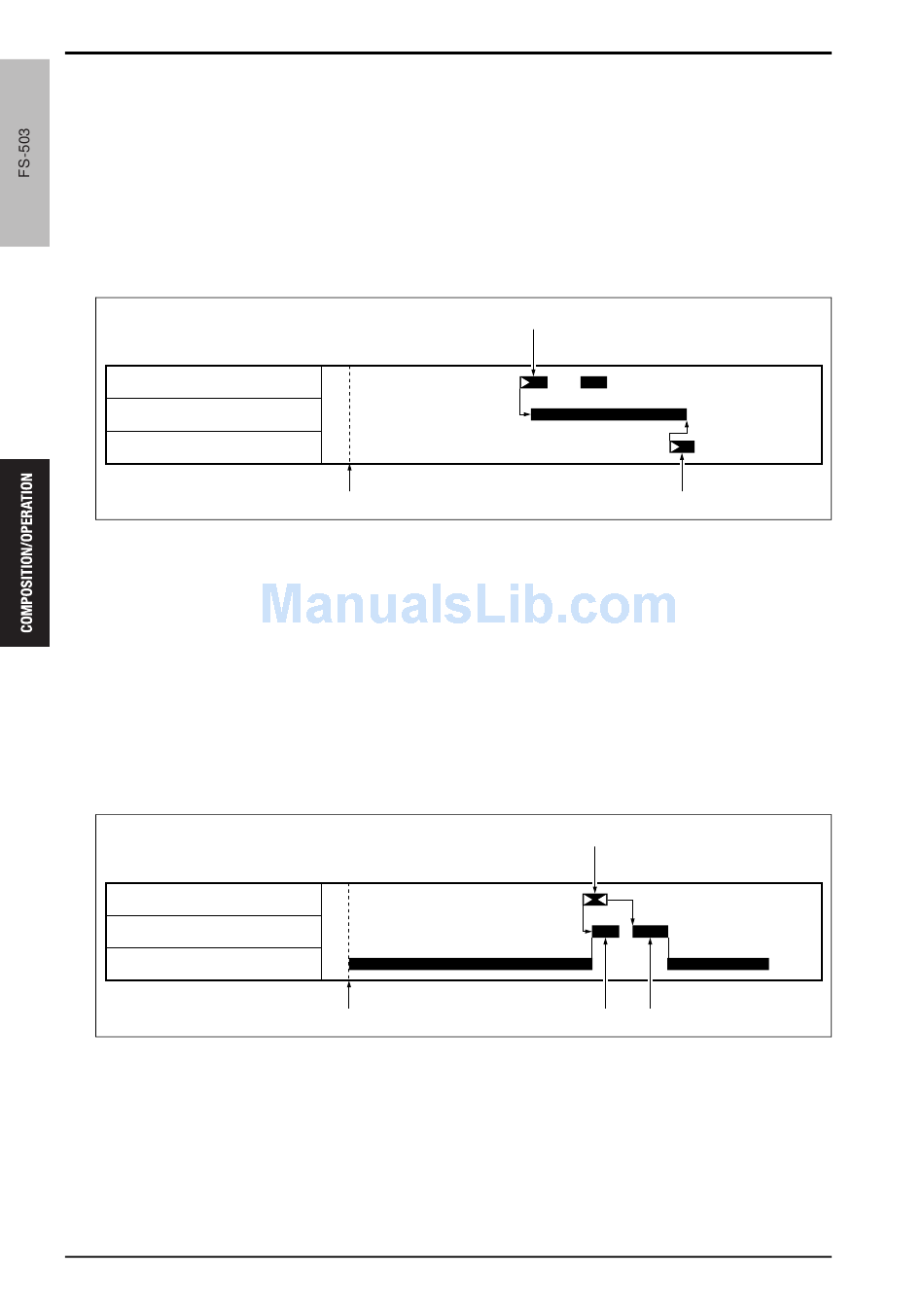

Stacker entrance sensor (PS5)
Paddle motor (M2)
Stapler motors /Fr (M31), /Rr (M30)
[1] Start sinal ON
[2] Stapling of the 1st sheet of paper
6.3.6

Stacker paper exit

A. Non-staple control
In the non-staple mode, the paper exit is made by the nip of the intermediate rollers /Up and /Lw.
B. Staple control
In the staple mode, the paper exit is made by the paper exit arm that is driven by the paper exit arm motor
(M23). The home position of the paper exit arm is detected by the paper exit arm home sensor (PS9).
Stapler motors /Fr (M31), /Rr (M30)
Paper exit arm motor (M23)
Paper exit arm home sensor (PS9)
[1] Start signal ON
[2] Stapling
24
[1]
[3]
[1]
[3]
[4]
Theory of Operation Ver2.0 Sep.2006
[2]
[3]
Stapling
[2]
[3] [4]
Movement to the paper exit arm standby
position
Paper exit operation of paper bundle
fs503to2035c
fs503to2036c
