5. RIGHT ANGLE CONVEYANCE SECTION

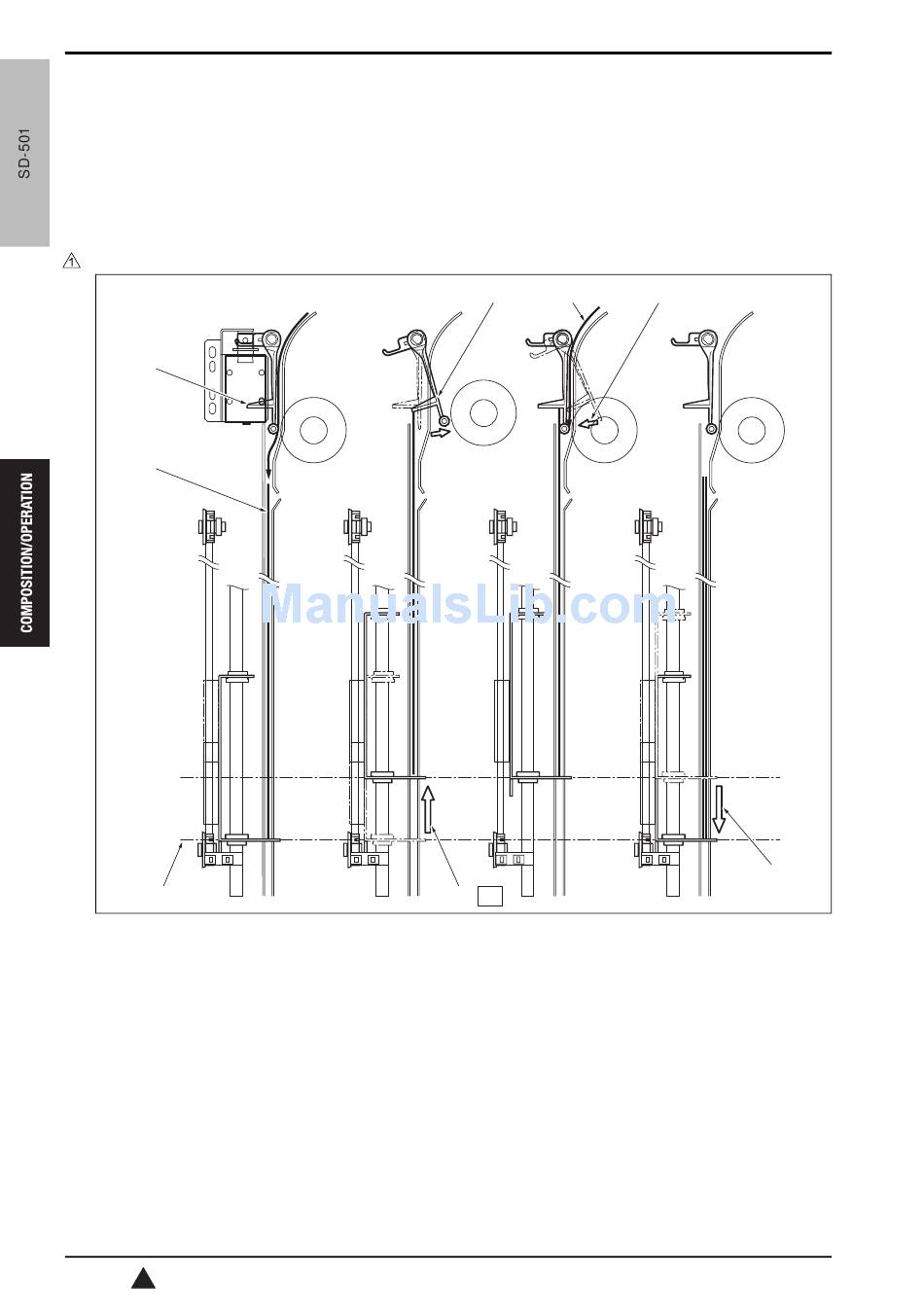

The first stacked sheet of paper [5] is conveyed while the overlap stopper is located at the standby position [4].
Before conveying the second paper, right angle conveyance gate solenoid (SD2) turns ON to move the right
angle conveyance gate [6] to the right [7]. At the time, overlap motor (M13) moves the overlap stopper 30 mm
upward [3]. It transfers the stacked paper to the left side of the right angle conveyance gate. The right angle
conveyance gate is replaced [9] to clear the conveyance path. The subsequent paper [8] passes the right side of
the right angle conveyance gate and the paper is overlapped in adequate order. Then, M13 moves the overlap
stopper downward [1].
The same as the second sheet is conducted until all of sheets are stacked.
[6]
[5]
[4]
[1] Overlap stopper moving 30 mm downward
[2] Front side view
[3] Overlap stopper moving 30 mm upward
[4] Standby position of the overlap stopper
[5] 1st paper
22
1
Theory of Operation Ver2.0 Sep.2006
[7] [8]
[3] [2]
[6] Right angle conveyance gate
[7] Right angle conveyance gate moved
[8] 2nd paper
[9] Right angle conveyance gate replaced
